View PDFInstallation Instructions
DCP

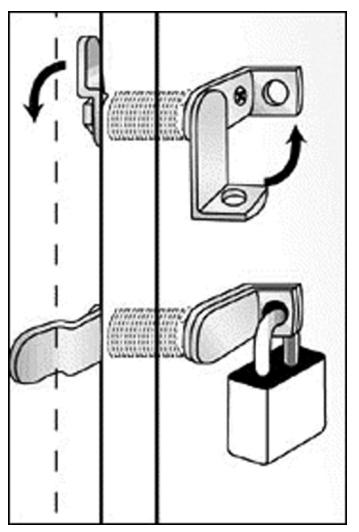

Typical Installation
DCNP-500-ARP anti-rotation plate install on inside of cabinet
Available Cams:
Straight Cams:
| Part No. | Dim. A | |
|---|---|---|
| DCP-58 | 5/8" | |
| DCP-SC** | 7/8" | |
| DCP-LC** | 1-1/4" | |
| DCP-LC-112 | 1-1/2" | |
| DCP-LC-134 | 1-3/4" | |
| DCP-LC-225 | 2-1/4" | |
| DCP-LC-250 | 2-1/2" | |
** These cams ship standard with each lock
Offset Cams:
| Part No. | Dim. A | Dim. B |
|---|---|---|
| DCP-1-14 | 1" | 1/4" |
| DCP-LBC | 1-1/4" | 1/4" |
| DCP-118-18 | 1-1/8" | 1/8" |
| DCP-LBC-138 | 1-3/8" | 3/8" |
| DCP-LBC-178 | 1-7/8" | 1/2" |
| DCP-112-14 | 1-1/2" | 1/4" |
| DCP-114-18 | 1-1/4" | 1/8" |
| DCP-114-38 | 1-1/4" | 3/8" |
| DCP-118-18 | 1-1/8" | 1/8" |
| DCP-1-14 | 1" | 1/4" |
| DCP-2-18 | 2" | 1/8" |
| Title | ||||
|---|---|---|---|---|
| Installation instructions for DCP series padlockable cam lock |

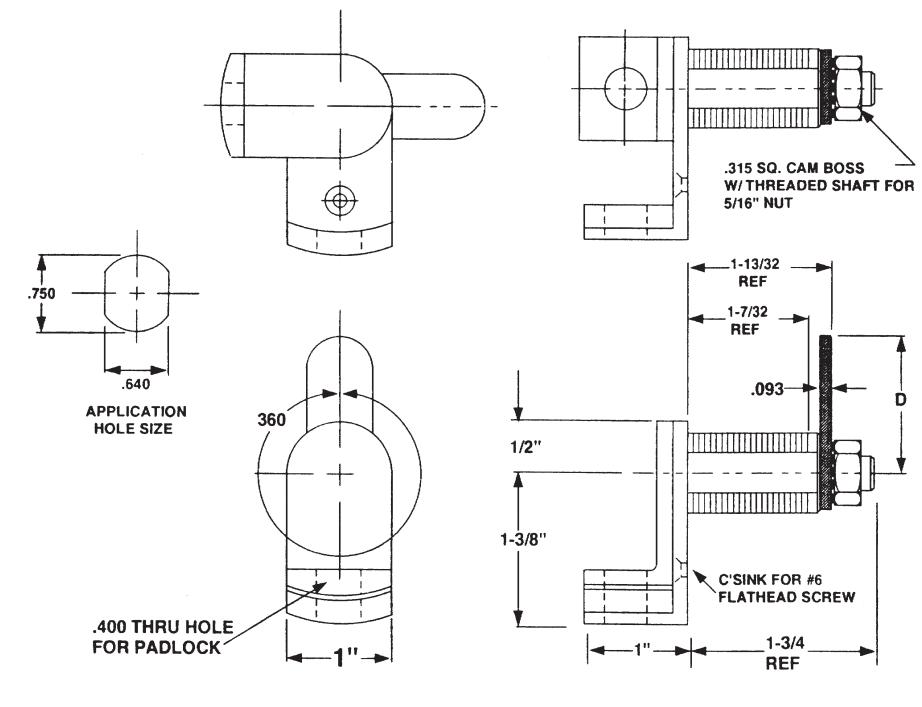

Series DCP Barrel Length See Chart
Bolt type Cam Lock
Mounting Surface
Revision Date 07/2011
