Olympus Lock – Padlockable Cam Lock 800S Installation Instructions
Open the original PDF document
View PDFInstallation Instructions

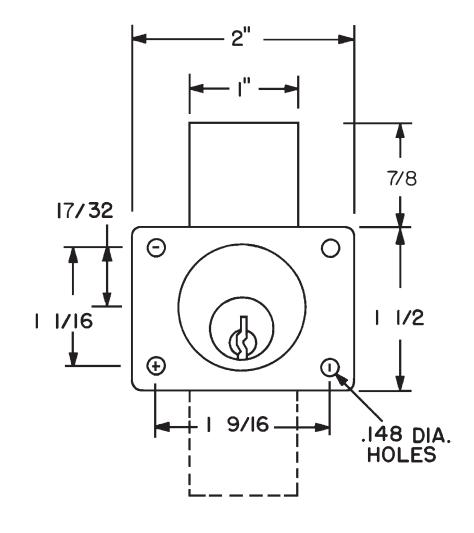

800S

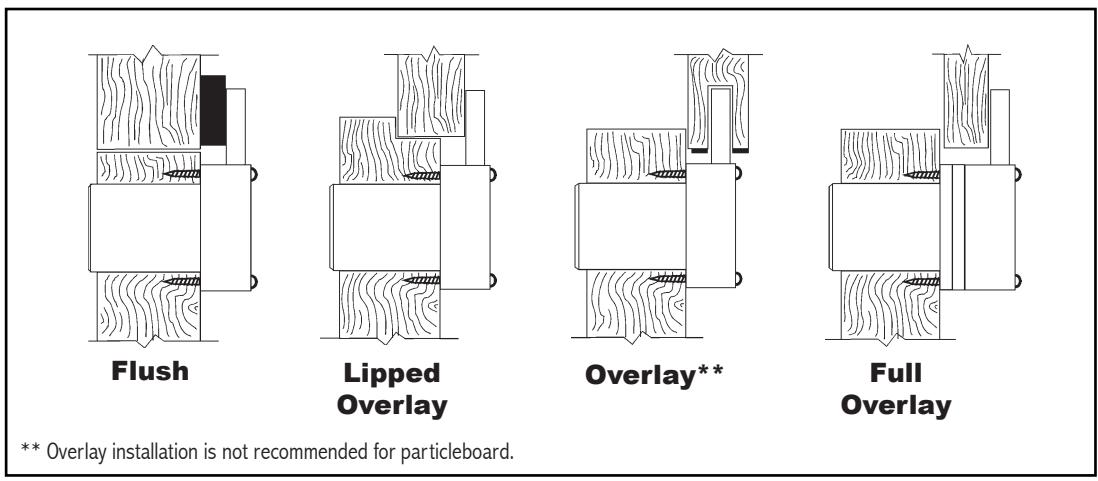

Typical Installation

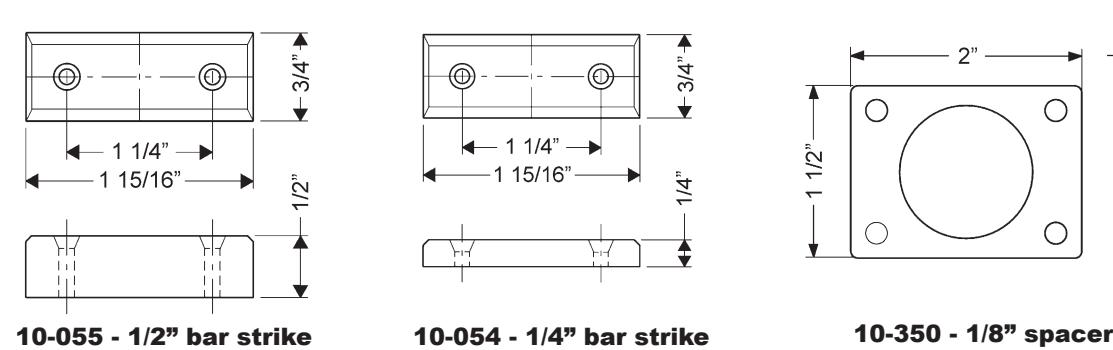

Note: Use of spacers and strikes depends on application and material thickness.
|
Title
Installation instructions for 800S series cabinet drawer lock |
||||
|---|---|---|---|---|

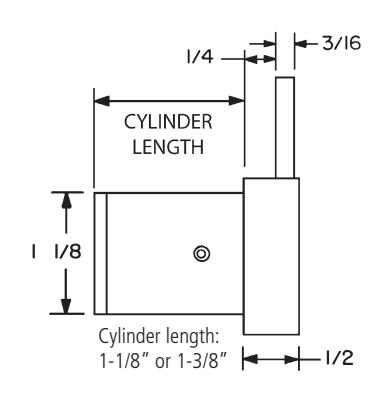

| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| 800S | 1-1/8" or 1-3/8" | Deadbolt | Surface | 08/2015 |
