View PDFInstallation Instructions

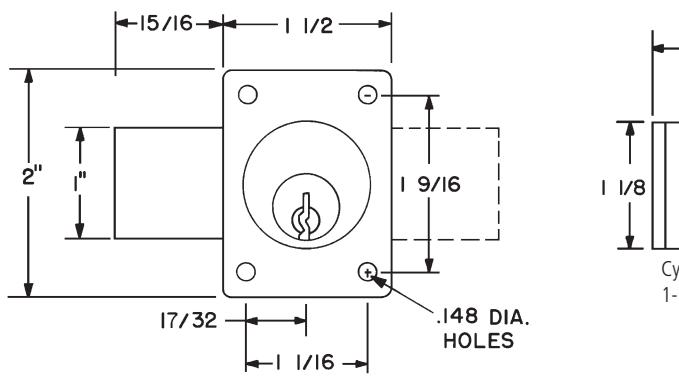

700S

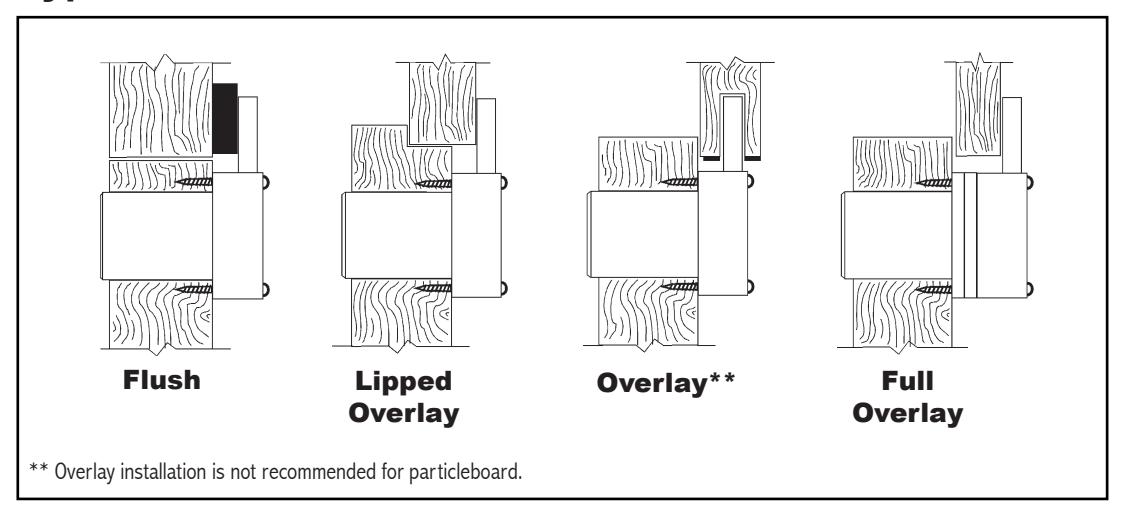

Typical Installation

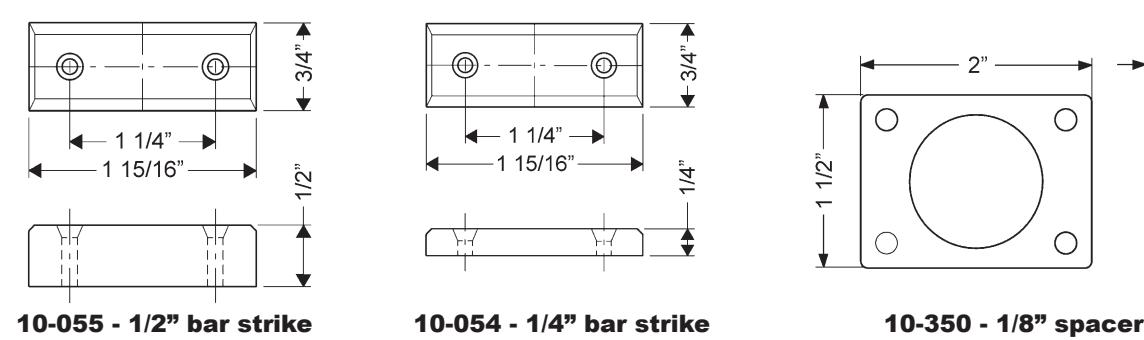

Note: Use of spacers and strikes depends on application and material thickness.
|
Title
Installation instructions for 700S series cabinet door lock |
||||
|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date |

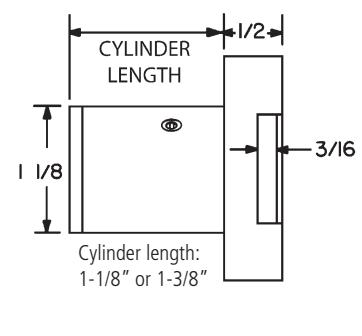

| 700S | 1-1/8" or 1-3/8" | Deadbolt | Surface | 08/2015 |
