Olympus Lock – N078 Drawer Installation Instructions
Open the original PDF document
View PDFInstallation Instructions
N078 - Drawer Lock

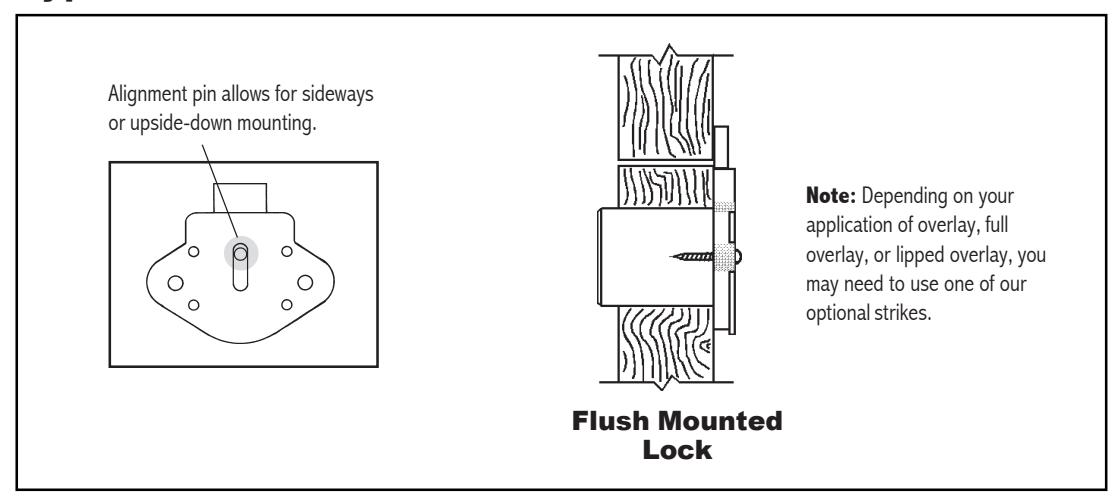

Typical Installation

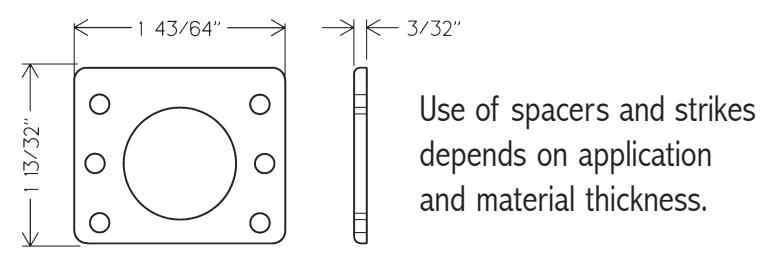

Optional WP21 - 3/32" spacer
|
Title
Installation instructions for N078 series cabinet drawer lock |
|||||
|---|---|---|---|---|---|

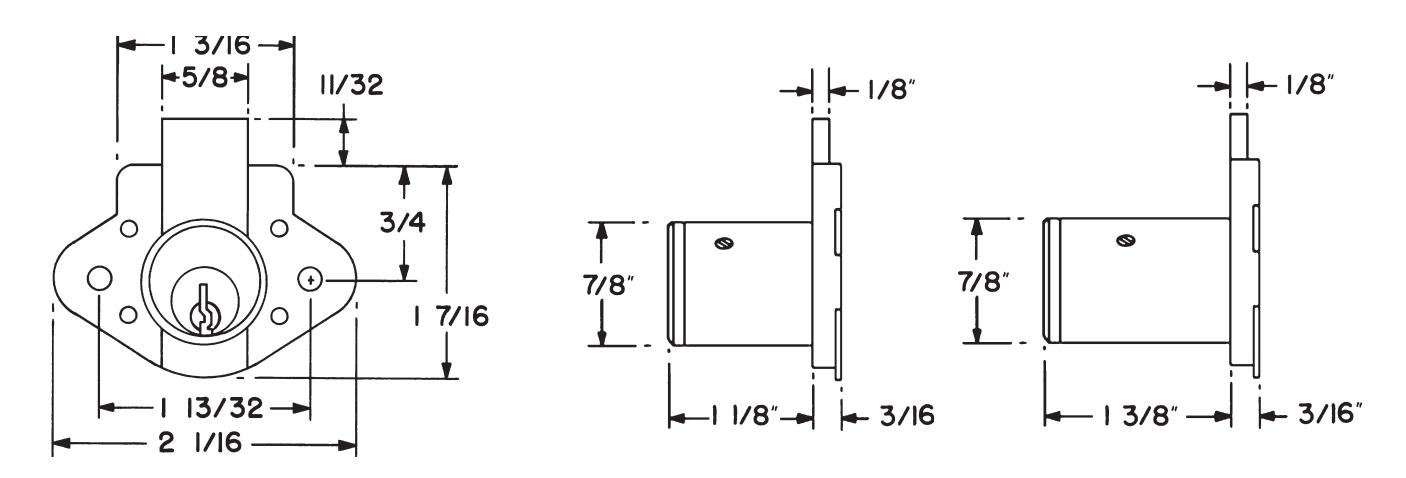

| Series | Barrel Length | Bolt type | Mounting | Revision Date | |
| N078 | 1-1/8" or 1-3/8" | Deadbolt | Surface | 06/2005 | |
