View PDFInstallation Instructions

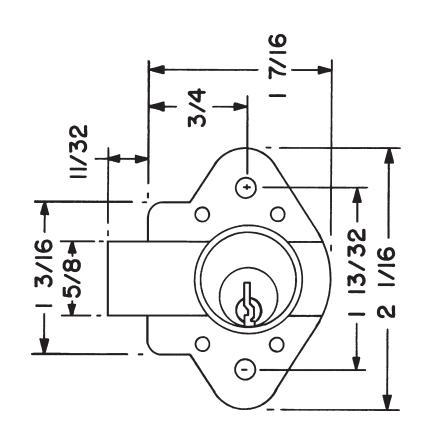

N078 - Door Lock

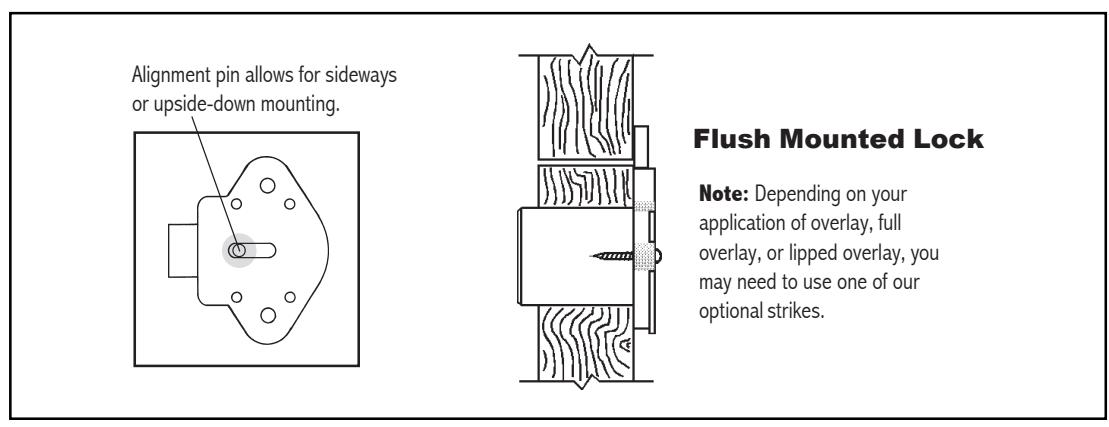

Typical Installation
Use of spacers and strikes depends on application and material thickness.

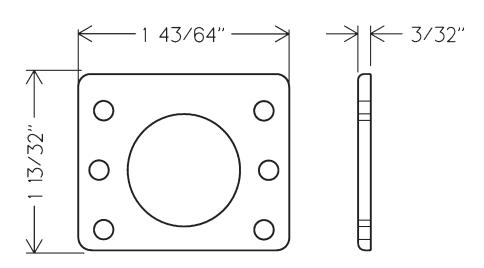

Optional WP21 - 3/32" spacer
|
Title
Installation instructions for N078 series cabinet drawer lock |
||||
|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| N078 | 1-1/8" or 1-3/8" | Deadbolt | Surface | 06/2005 |
