T54C

N Series: T-Knob Cylinder Replacement Kit

SPECIFICATIONS

Keying: Can be keyed together with other N Series locks

Rekeyable: Includes working top-slide for easy rekeying

Replaces: CompX/National original cylinder for C8154 or C8155 pin tumbler t-knob locks for metal cabinet doors.

Cylinder: Drilled for 5 pins. Can be keyed to match existing 4-pin or 5-pin systems.

Material: Solid brass

Finish: 26D

Packaged: Packed 25 per box

KEYING INFORMATION

Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)

Keying: Can be keyed to match National 4 or 5

pin key systems

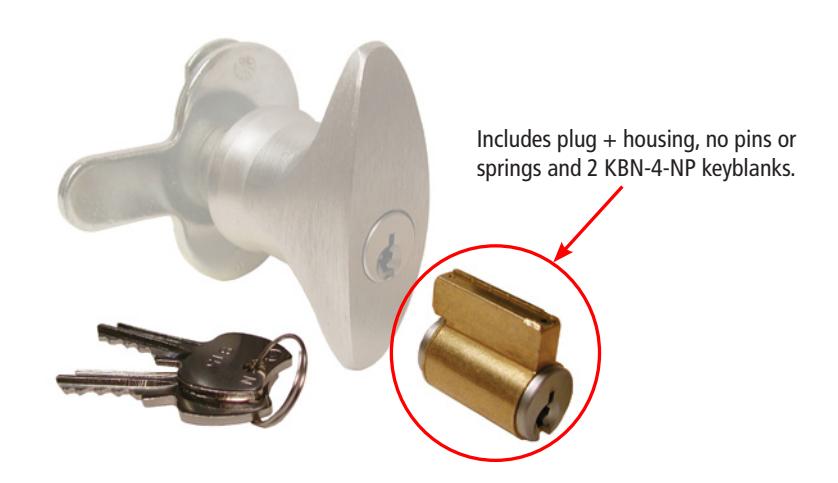

Includes: Plug and housing, no pins or springs and 2 ringed KBN-4-NP (4-pin) keyblanks

Custom keying: Available Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L) Keyblank 5-pin: KBN-5-NP (equivalent to NA12, 1069LA)

T54C

Function: Replacement cylinder kit

Works with. CompX/National original cylinder for C8154 or C8155 pin tumbler t-knob locks for metal cabinet doors

Usage: Allows you to replace the cylinder only and not the entire T-Knob.

The new T54C T-Knob Cylinder Replacement Kit from Olympus Lock replaces original CompX/National T-knob pin tumbler cylinders. You no longer need to replace the entire t-knob lock, just replace the non-functional cylinder. Our cylinder is all brass construction for increased durability. This is a 5-pin cylinder and can be keyed to match your existing 4-pin or 5-pin systems.
