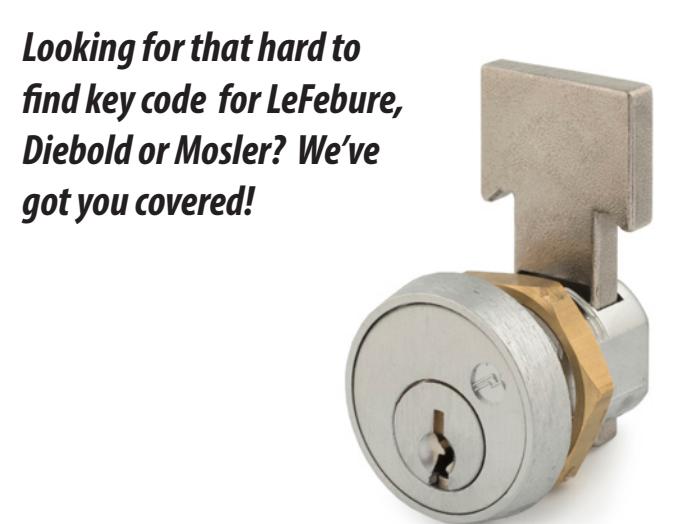

T37 SERIES

N Series: T-Bolt Metal Drawer Lock

SPECIFICATIONS

Keying: Can be keyed together with other N Series locks

Rekeyable: Working top-slide, cylinder retainer staple and removable bezel ring make rekeying fast and easy. No more need to pry off faceplates and pin retainer clips.

US Patent No: 5,038,589

Standard function: Key removable in locked or

unlocked position. Retrofits: National C8137 Body: Zinc die cast

Cylinder: Zinc die cast, pin tumbler

Bolt: Stainless steel

Includes: Brass mounting nut. Spring mounting clip

T37-RC is available separately.

Barrel diameter: 3/4" Across flats: 5/8" Finish: 26D

Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: N Series (equivalent to National D4291 4-pin system)

Keys: Includes 2 keys per lock

Stock keying: KD/KA - 4 pin standard Stock KA#: 101, 103, 107, 915, 1001, 51002,

51003, 51004, 51005, 51006, 51007, 51008, 51009, 51010 and groups 001 through 030

Masterkeyed: 4 pin standard Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L)

SPECIAL NOTE ON BOLTS ONLY

The T37-1 (regular bolt) , T37-2 (long bolt) and T37- 3 (short bolt) will not work in the National C8137 lock. However, the C8137 bolts will work in the T37 lock.

OPTIONAL ACCESSORIES

See below.

The industry's first easily rekeyable T-bolt lock for metal bank drawers Directly replaces National C8137

US26D finish

FEATURES

Rekeyable: Working top-slide, cylinder retainer staple and removable bezel ring make rekeying fast and easy. No more need to pry off faceplates and pin retainer clips.

Stronger bolt: Our stainless steel bolt will withstand repeated abuse without breaking.

Retrofits: National C8137.

Mounting: Ships standard with brass fixing nut.

Spring clip: Optional spring clip is available for clip mounting if desired. The lock comes standard with clip mounting locations for 0" to 11/64" material thicknesses.

T37 SERIES

N Series: T-Bolt Metal

Drawer Lock

The industry's first easily rekeyable T-bolt lock for metal bank drawers Directly replaces National C8137

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

T37-RC Spring mounting clip

The lock comes standard with clip mounting locations up to 11/64" material thicknesses.

T37-NKIT

Number plate kit eliminates need to stamp face of lock

Replacement number plates also available separately (Use part no. T37DC-NP).

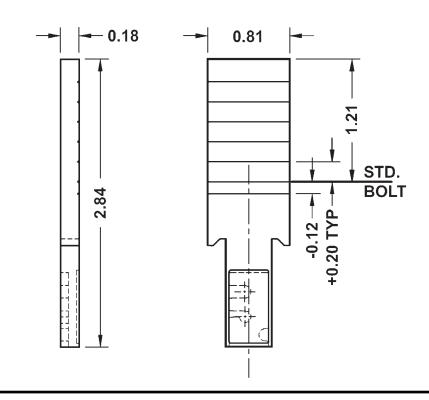

T37-2

Long bolt can be cut to length required by application

T37-3

Short bolt for 25/32" backset

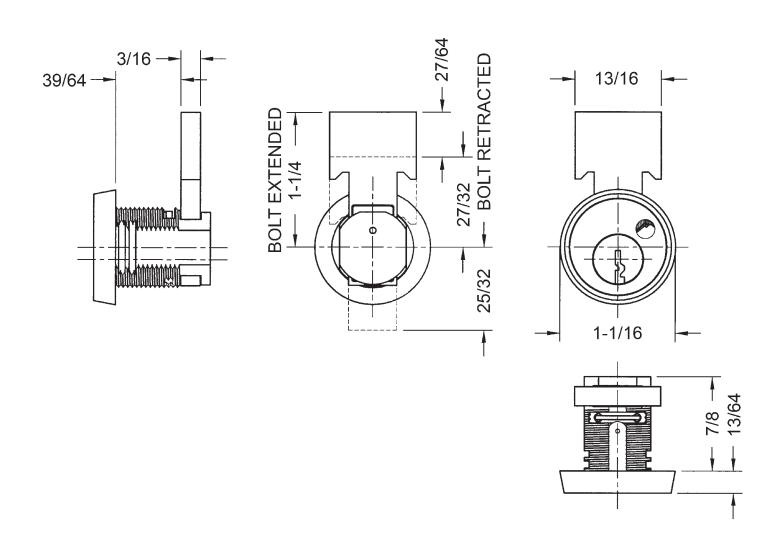

DIMENSIONS | TYPICAL INSTALLATION

DRAWER DETAIL

MOUNTING HOLE DETAIL
