N078 SERIES

N Series: Deadbolt Door & Drawer Cabinet/Furniture Locks

SPECIFICATIONS

Keying: Can be keyed together with other N Series locks

Rekeyable: Easily rekeyable via set screw cylinder

release mechanism

US Patent Nos: 4,899,563; 4,920,774

Standard function: Key removable in locked or

unlocked position.

Door locks: Can be reversed between left and

right hand. Body: Zinc die cast

Cylinder: Solid brass, pin tumbler Cylinder length: 1-1/8" or 1-3/8"

Barrel diameter: 7/8" Finish: 26D or US4

Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)

Keys: Includes 2 keys per lock

Stock keying: KD/KA - 4 pin standard

Stock KA#: 101, 103, 107, 915 Masterkeyed: 5 pin standard Grand masterkeyed: Available Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L) Keyblank 5-pin: KBN-5-NP (equivalent to NA12, 1069LA)

OPTIONAL ACCESSORIES

Spacers: WP20 (3/16" thick), WP21 (3/32" thick), WP22

(1/4" thick), WP23 (1/2" thick)

Strikes: 07S, 56-1, 12-1, 12-2, 12-3, 12-4 strikes

Trim collar: TR1256

Optional drawer bolt: 078-LB1-DW long bolt

with 1/2" offset (drawer only)

Optional door bolt: 078-LB-DR 1/4" straight

long bolt (door only)

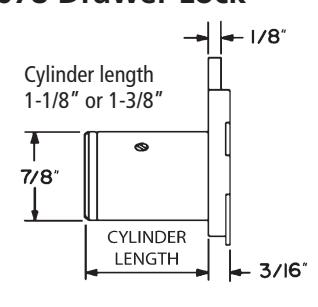

N078 Drawer

Function: Drawer lock Extended offset bolt: Specify -LB option at time of order.

N078 Door

Function: Cabinet door lock (LH or RH) Extended bolt: Specify -LB option at time of order.

N078L Left Hand (LH)

N078R Right Hand (RH)

AVAILABLE FINISHES

US26D US4

N078 SERIES

N Series: Deadbolt Door & Drawer Cabinet/Furniture Locks

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

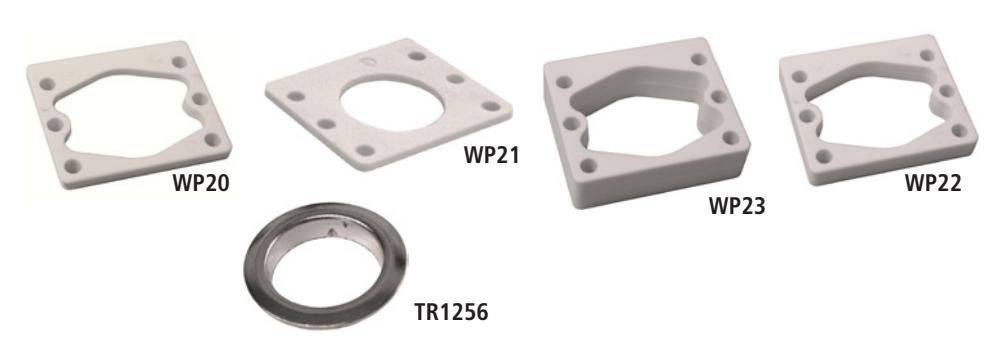

Internal plastic spacers

• WP20 3/16" thick plastic spacer
• WP21 3/32" thick plastic spacers
• WP22 1/4" thick plastic spacers
• WP23 1/2" thick plastic spacers

Strikes

• 12-1, 12-2, 12-3, 12-4, 12-5, 07S

Trim Ring

• TR1256 trim ring

Extended bolt

• Optional drawer bolt: 078-LB1-DW long bolt with 1/2" offset (drawer only)
• • Optional door bolt: 078-LB-DR 1/4" straight long bolt (door only)

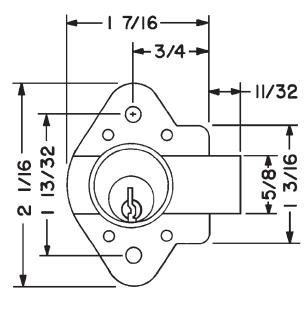

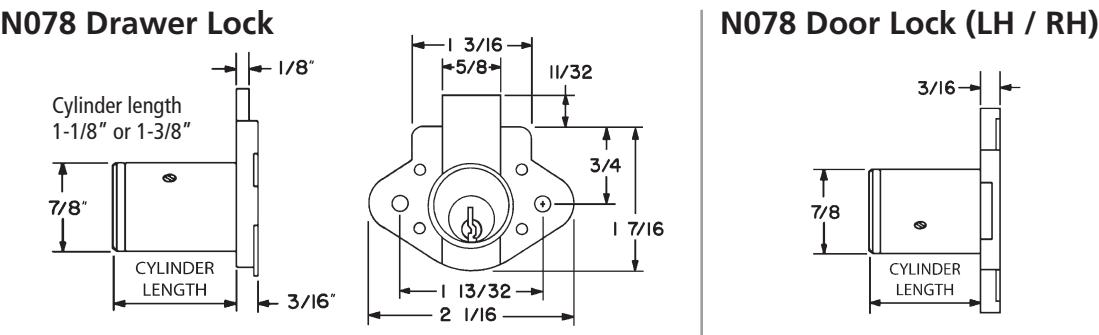

DIMENSIONS

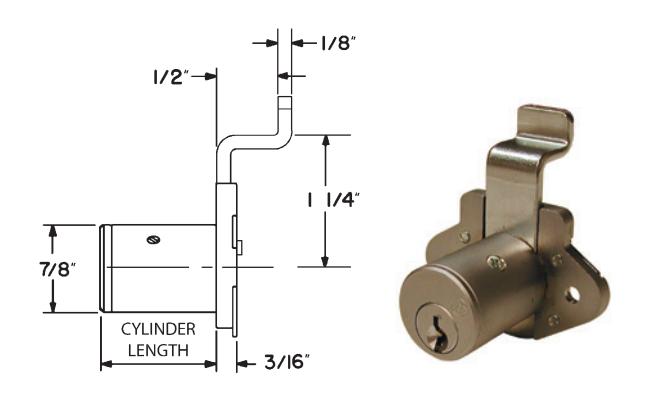

With extended bolt option for drawer lock.

Specify -LB1 option when ordering.

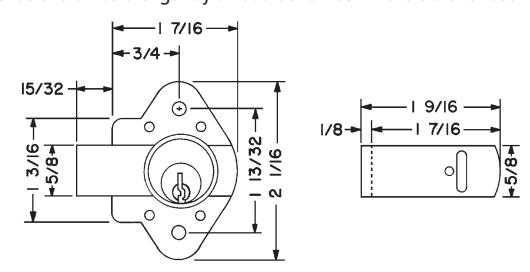

Extended bolt option for door lock

Extends overall bolt length by an additional 1/8". Reversible for use with LH or RH locks.
