L20V

N Series: Heavy Duty Drawer Latch Lock

SPECIFICATIONS

Function: Heavy duty spring latch

Keying: Can be keyed together with other

N Series locks

Function: Heavy duty spring latch for high-use

applications

Rekeyable: Easily rekeyable via set screw cylinder

release mechanism Body: Zinc die cast

Cylinder: Solid brass, pin tumbler Cylinder length: 15/16" or 1-3/8"

Barrel diameter: 7/8" Latch projection: 5/16"

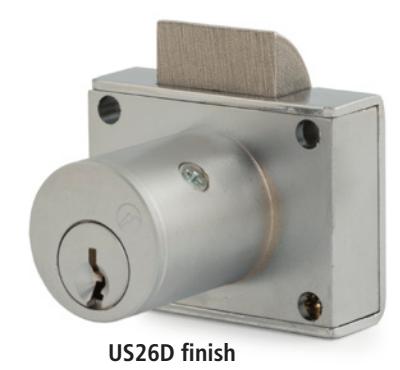

Finish: US26D

Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)

Keys: Includes 2 keys per lock

Stock keying: KD/KA - 4 pin standard Stock KA#: 101, 103, 107, 915

Masterkeyed: 5 pin standard Grand masterkeyed: Available Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L) Keyblank 5-pin: KBN-5-NP (equivalent to NA12, 1069LA)

INCLUDED ACCESSORIES

Strike: 999-STRIKE (slotted lip strike)

OPTIONAL ACCESSORIES

Spacers: WP21 spacer (3/32" thick), WP22 spacer (1/4" thick), WP23 spacer (1/2" thick)

Strikes: 12-1, 12-2, 12-3, 12-5, 12-4, 56-1, 07S

Trim collars: TR1256

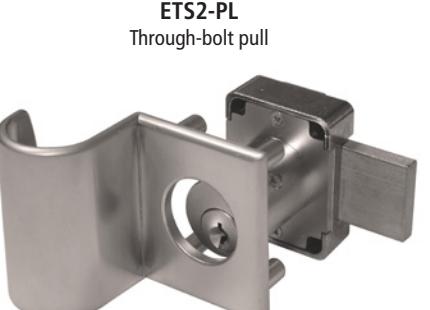

Through-bolt hardware: ETS2 trim plate, ETS2-

PL trim pull and ETST2 template

L20V

Function: Cabinet drawer latch lock

Vertical-hand (VH) drawer

Left-hand (LH) door

Right-hand (RH) door

includes 999-STRIKE

L20V

N Series: Heavy Duty Drawer Latch Lock

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

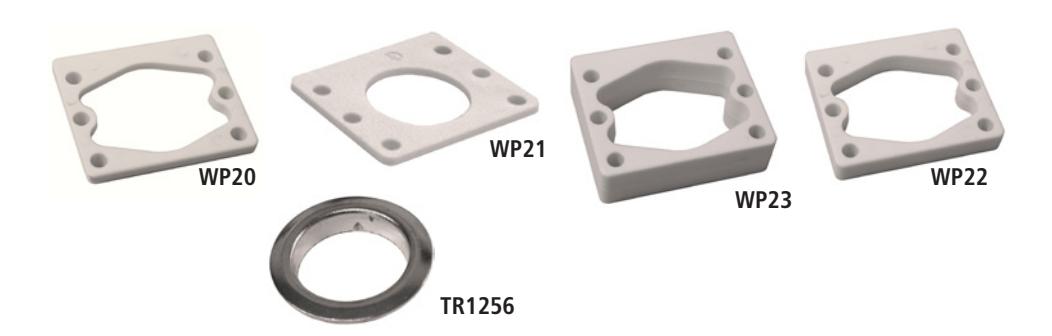

Internal plastic spacers

• WP20 3/16" thick plastic spacer
• WP21 3/32" thick plastic spacers
• WP22 1/4" thick plastic spacers
• WP23 1/2" thick plastic spacers

Strikes

• 12-1, 12-2, 12-3, 12-4, 12-5, 07S

Trim Ring

• TR1256 trim ring

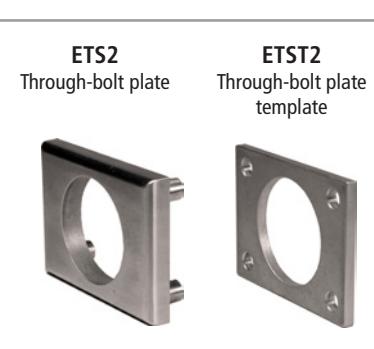

Through-bolt plate

External metal 1/8" or 1/4" through-bolt plate allows for an attractive flush mounting of the cabinet lock face. Available in US3 or US26D finish.

• ETS2-125 through-bolt plate, 1/8" thick
• ETS2-250 through-bolt plate, 1/4" thick

Through-bolt plate template

Allows for proper mounting hole placement of throughbolt plate. Can be used as a 1/8" shim spacer. Available in US3 and US26D finish.

• ETST2 through-bolt plate template

U.S. Patent No. D490,686

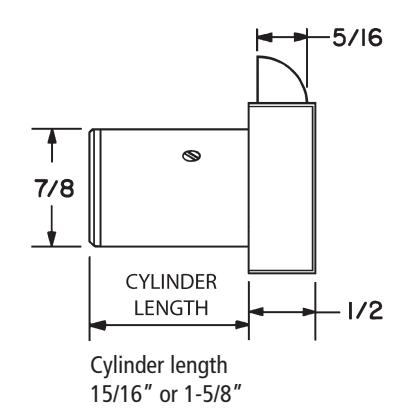

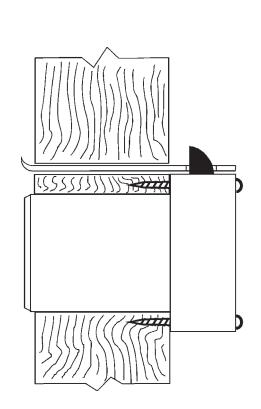

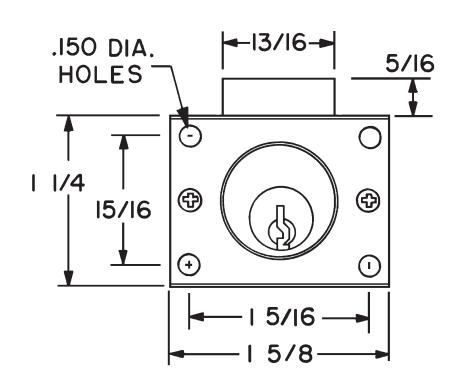

DIMENSIONS | TYPICAL INSTALLATION
