FC10 SERIES

N Series: File Cabinet Lock

Replaces HON F24/F28 rotate-style file cabinet locks or F26 style if used with FC26 adapter ring.

SPECIFICATIONS

Keying: Can be keyed together with other N Series locks

Rekeyable: Working top-slide, cylinder retainer staple and removable bezel ring make rekeying fast and easy

Retrofit: Replacement for HON F24/F28 style

vertical file cabinet locks

U.S. Patent Nos: 5,038,589; 5,737,950 Standard function: Key removable in locked or

unlocked position. Body: Zinc die cast

Finish: 26D

Cylinder: Zinc die cast, pin tumbler Includes: Brass mounting nut Barrel diameter: 3/4" Across flats: 5/8"

Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)

Keys: Includes 2 keys per lock

Stock keying: KD/KA - 4 pin standard Stock KA#: 101, 103, 107, 915 Masterkeyed: 5 pin standard Grand masterkeyed: Available Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L) Keyblank 5-pin: KBN-5-NP

(equivalent to NA12, 1069LA)

OPTIONAL ACCESSORIES

T37-NKIT: Number plate kit, eliminates need to stamp face of lock

T37DC-NP: Replacement number ring plates available

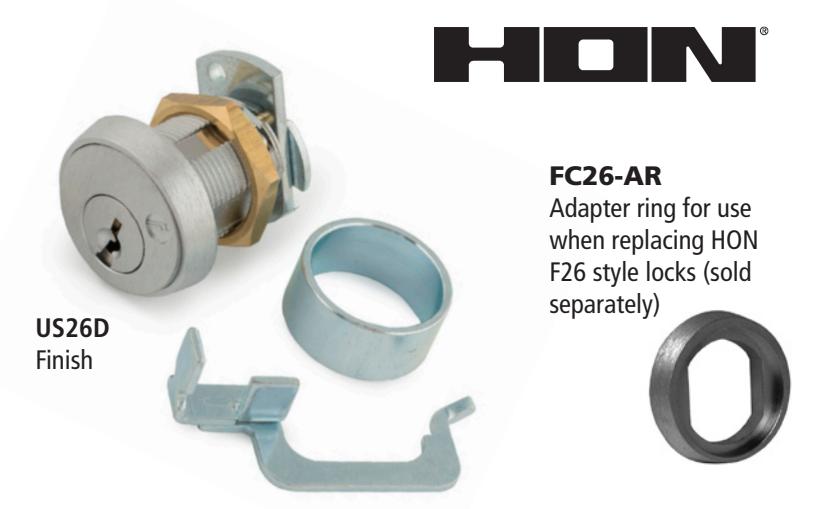

FC10-AR: Adapter ring converts FC10 to work as a replacement for HON F26 style lock

FC10

Keyway: N Series, National Keyway

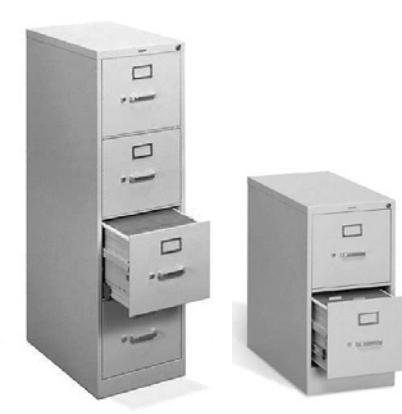

Retrofits: Replacement for HON F24/F28 style vertical file cabinet locks. Use with HON® vertical file cabinets produced after 1988.

FC10 FEATURES

Working top-slide, cylinder retainer staple and removable bezel ring make rekeying fast and easy.
Replaces HON F24/F28 style file cabinet locks.
Replaces HON F26 when used with optional FC26-AR ring adapter.
For use with HON vertical file cabinets manufactured after 1988.
The FC10 kit includes all parts necessary for complete lock replacement.

WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
