DCN SERIES

N Series: 3/4" Cam Lock

ANSI/BHMA Grade 1 E07261 | E07271

Woodwork Institute (WI) acknowledged product

SPECIFICATIONS

Keying: Can be keyed together with other N Series locks

Cylinder length: DCN1 =1", DCN2=1-1/8", DCN3=1-3/8" and DCN4=1-3/4"

Rekeyable: Easily rekeyable via cylinder retainer clip

ANSI/BHMA: Passed ANSI/BHMA A156.11

Grade 1 performance requirements. Equivalent to

E07261 / E07271.

US Patent Nos: 5,038,589; 5,737,950

Body: Zinc die cast

Cylinder: Zinc die cast, pin tumbler

Standard function: Key removable in locked or

unlocked position.

Key retaining function: Alternate key-retaining shifters are available separately for key removable in locked position only.

Cams: 2 reversible cams work in all positions Face: 1" face covers splintering, no additional trim

ring required

Finish: 26D, US3, 10B or US19 Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)

Keys: Includes 2 keys per lock

Stock keying: KD/KA - 4 pin standard

Stock KA#: 101, 103, 107, 915, 51001, 51002,

51003, 51004

Masterkeyed: 5 pin standard Grand masterkeyed: Available Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L) Keyblank 5-pin: KBN-5-NP (equivalent to NA12, 1069LA)

INCLUDED ACCESSORIES

See page 2.

OPTIONAL ACCESSORIES

Alternate cams

Key retaining drawer cam shifter #DCNP-200-KR Key retaining door cam shifter #DCNP-200-KDR

DCN

Keyway: N Series, National Keyway Handing: Includes 2 cams that work in all handings (door or drawer)

DCN SERIES FEATURES

• Non-handed—Field reversible locking positions: right-hand, lefthand, vertical and inverted
• Only 2 cams required—Ships with reversible straight and offset cams that meet requirements of all locking positions
• Easy rekeyability—Allows for a quick installation and increased productivity

• Anti-rotation plate—Eliminates lock rotation, prevents loosening of fixing nut, and provides additional security in particleboard applications

AVAILABLE FINISHES

US26D US3 US10B US19

INCLUDED CAMS

DCNP-100-SC straight cam

DCNP-100-BC offset reversible cam

WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

DCN SERIES

N Series: 3/4" Cam Lock

ANSI/BHMA Grade 1 E07261 | E07271

Woodwork Institute (WI) acknowledged product

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

Other Accessories

Key-retaining cam shifters

• For door function: DCNP-200-KDR
• For Drawer function: DCNP-200-KR

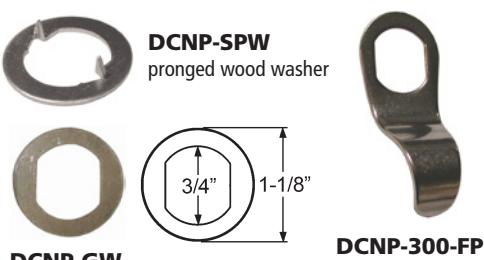

Washers

• Pronged wood washer: DCNP-SPW
• Self-adhesive clear plastic washer for mounting lock on glass: DCNP-GW

Finger Pull

• Finger pull: DCNP-300-FP

Number Plates

• T37DC-NP number plate

DCNP-GW self-adhesive clear plastic washer for mounting lock on glass

TRB7 Series Trim Collars

Optional Cams

Note: Offset cams are reversible and can be used in either the inbent or outbent position.

Item	Description / Packed Each
DCNP-HD-875	7/8" long straight cam
DCNP-HD-1	1" long straight cam
DCNP-100-SC	1-1/4" long straight cam
DCNP-100-SC2	1-3/4" long straight cam
DCNP-100-SC3	1-1/2" long straight cam
DCNP-100-LC	3" long straight cam

			DCNP-100-LBC 1-1/2 long cam, 5/16" offset
	Item	Description / Packed Each
	DCNP-100-B1 DCNP-100-B2 DCNP-100-B3 DCNP-100-WB	Straight cam with oval cutout U-shaped cam Straight hook cam Short cam / 90° offset arm

Item	Description / Packed Each

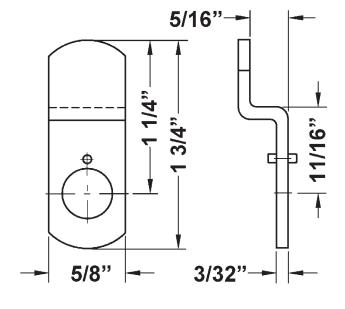

DCNP-100-BC	1-1/4" long cam, 5/16" offset
DCNP-100-BC5	1-1/4" long cam, 1/2" offset
DCNP-100-HC1 DCNP-100-HD	1-1/2" long hook cam, 5/16" offset 1-7/16" long cam, 1/2" offset
DCNP-100-HD2	1-3/4" long cam, 5/16" offset
DCNP-100-HD3	1-1/8" long cam, 5/16" offset
DCNP-100-LBC

>> Visit our website www.olympuslock.com for complete dimension and descriptions of available optional cams.

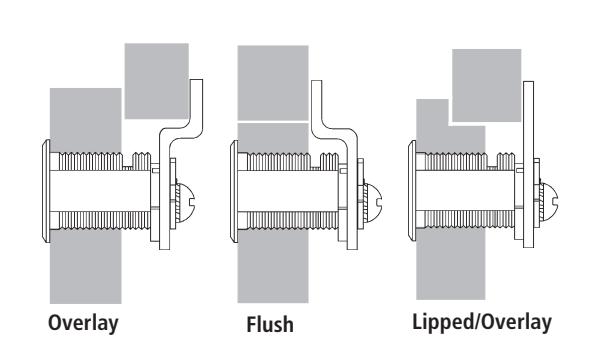

DIMENSIONS | TYPICAL INSTALLATION

DIMENSIONS

	For Mat. Thickness	Straight Cam (X)	Inbent Cam (Y)	Outbent Cam (Z)	Cylinder Length (A)
DCN1	3/4"	1-1/16"	3/4"	1-3/8"	1"
DCN2	7/8"	1-3/16"	7/8"	1-1/2"	1-1/8"
DCN3	1-1/8"	1-7/16"	1-1/8"	1-3/4"	1-3/8"
DCN4	1-1/2"	1-13/16"	1-1/2"	2-1/8"	1-3/4"

MOUNTING CUTOUT
