998 | 999

N Series: Door & Drawer Latch Lock — 4-way Reversible

Easily field reversible between door and drawer function

SPECIFICATIONS

Function: Spring latch

Keying: Can be keyed together with other

N Series locks

Reversible: Easily reversible between door and

drawer function

Rekeyable: Easily rekeyable via set screw cylinder

release mechanism

US Patent Nos: 4,899,563; 7,874,189 B2

Body: Zinc die cast

Cylinder: Solid brass, pin tumbler Barrel length: 15/16" or 1-3/8"

Barrel diameter: 7/8" Latch projection: 1/4" Finish: 26D or US4

Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)

Keys: Includes 2 keys per lock

Stock keying: KD/KA - 4 pin standard Stock KA#: 101, 103, 107, 915 Masterkeyed: 5 pin standard Grand masterkeyed: Available Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L)

Keyblank 5-pin: KBN-5-NP (equivalent to NA12, 1069LA)

INCLUDED ACCESSORIES

Strike: 999-STRIKE (slotted lip strike)

OPTIONAL ACCESSORIES

Spacer: WP24 (1/8" thick) Trim ring: TR1256

Through-bolt hardware: ETS6 through-bolt plate

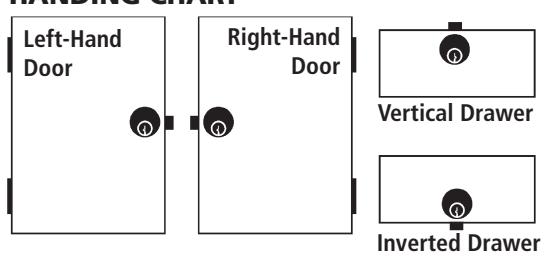

HANDING CHART

DRAWER 998V Vertical Hand (VH)

998 Drawer

Function: Drawer lock Handing: Available in the vertical or inverted position

DRAWER 998I Inverted Hand (IH)

999 Door

Function: Cabinet door lock Handing: Available in the left-hand or

right-hand position

DOOR 999L Left Hand (LH)

DOOR 999R Right Hand (RH)

AVAILABLE FINISHES

998 | 999

N Series: Door & Drawer Latch Lock — 4-way Reversible

OPTIONAL ACCESSORIES

Internal plastic spacers

  • WP24 3/32" thick plastic spacers Strikes
  • 12-1, 12-2, 12-3, 12-4, 07S

Trim Ring

• TR1256 trim ring

Through-bolt plate

External metal 1/8" or through-bolt plate allows for an attractive flush mounting of the cabinet lock face. Available in US3 or US26D finish.

• ETS6 through-bolt plate, 1/8" thick

U.S. Patent No. D490,686

DIMENSIONS

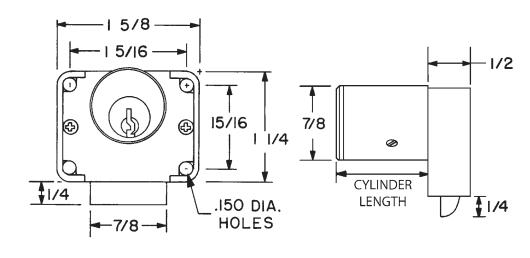

998 Drawer Lock

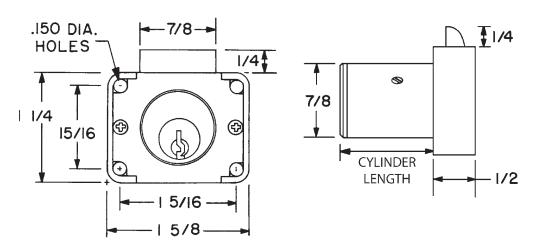

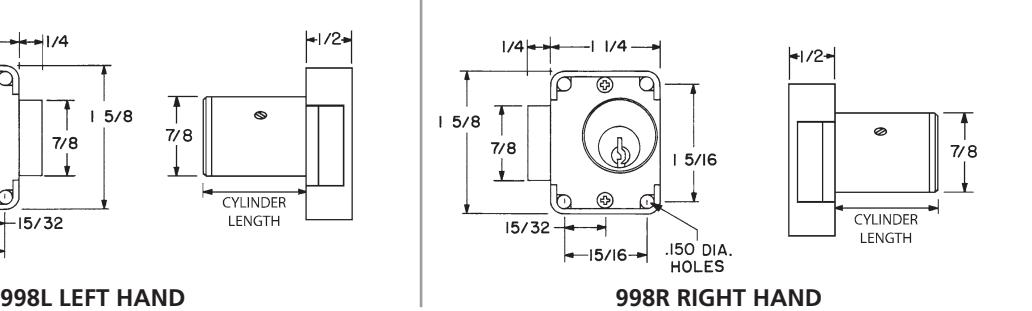

998V VERTICAL HAND 998I INVERTED HAND

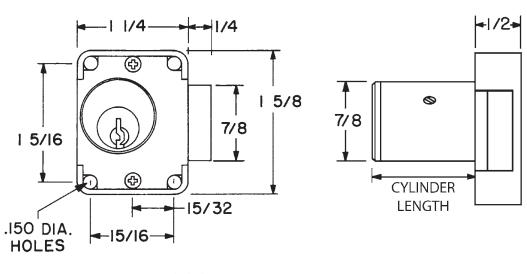

999 Cabinet Door Lock
