Product Data Sheet

200DW 1-5/8" Series

N Series: National Keyway Drawer Locks with 1-5/8" Barrel Length

200DW 1-5/8" Series

OLYMPUS. LOCK, INC.

N Series: National Keyway Drawer Locks with 1-5/8" Barrel Length

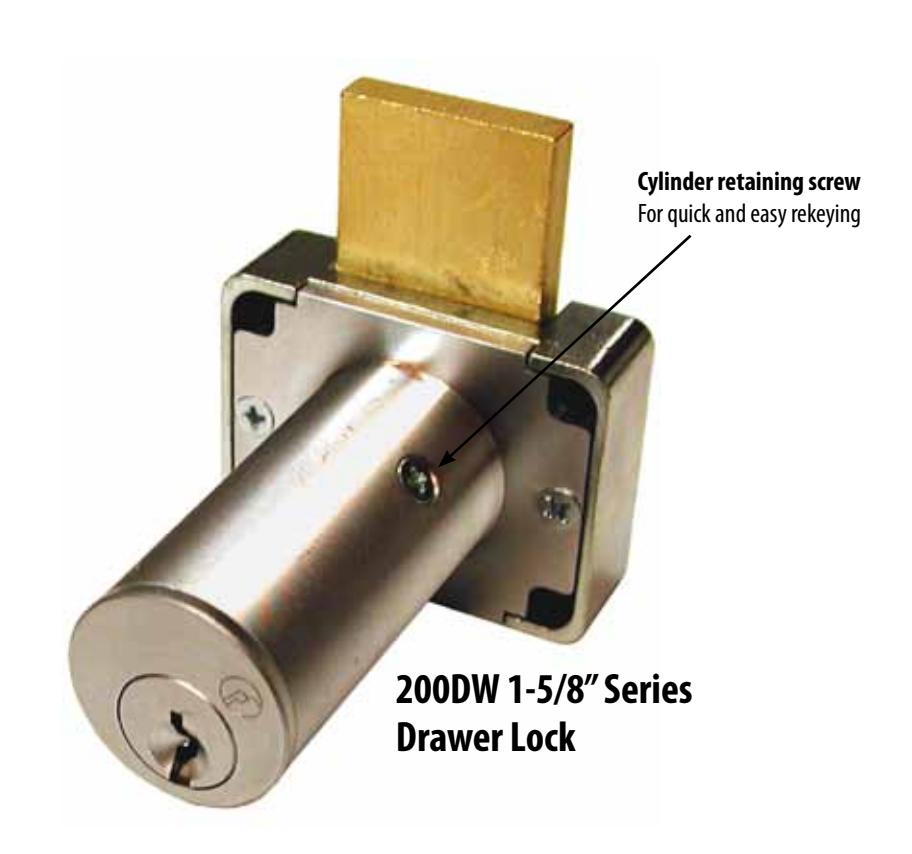

200DW 1-5/8" Drawer Lock

Rekeyable: Easily rekeyable via set-screw cylinder removal mechanism

Testing: Testing: Passed ANSI/BHMA A156.11 Grade 1 cycle testing. All other requirements of ANSI/BHMA A156.11, no less than a Grade 2 performance was attained.

US Patent Nos: 4,899,563; 4,920,774

Body: Zinc die cast Bolt: Brass, 3/4" projection Barrel length: 1-5/8" Barrel diameter: 7/8" Finish: US26D (satin chrome)

Cylinder: National "D4291" Keyway 4 or 5 pin Stock keying: KD or KA - 4 pin standard, stock KA#

101, 103, 107, 915

Master keying: 5 pin standard, KA/MK or KD/MK,

Grand Master Keyed

Key-retaining function: Specify 200Kl for inverted drawer or 200KV for vertical drawer function.

Accessories

Includes:

12-3-1 bar strike

Available separately:

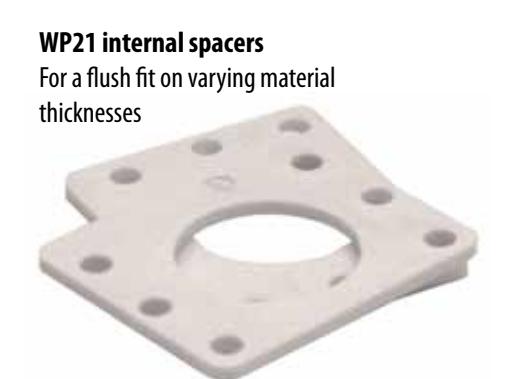

• WP21 plastic internal spacers
• 12-1 small angle strike
• 12-2 heavy duty angle strike
• 56-1 bar strike
• 07S slotted strike
• ETS2 External trim spacer
• ETST2 External trim spacer template

Reinforcing Trim Reinforcing Trim

Reinforcing trim spacer (optional)

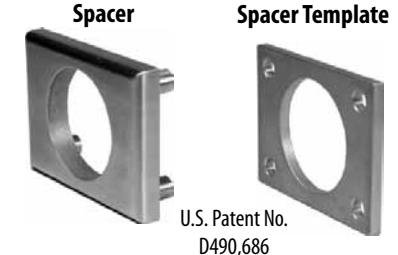

• External metal 1/4" trim spacer allows for an attractive flush mounting of the cabinet lock face
• Increases security of installation through reinforcement of cabinet face and direct connection of lock mounting screws to External Trim Spacer's binder
• Available in US3 and US26D finishes
• Includes mounting screws

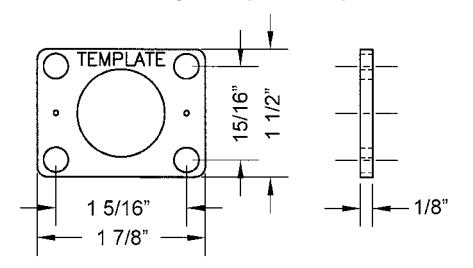

Template for reinforcing trim spacer (optional)

• Allows for proper mounting hole placement of External Trim Spacer
• Can be used as a 1/8" shim spacer
• Available in US3 and US26D finishes

#ETS2 Reinforcing Trim Spacer

#ETST2 Reinforcing Trim Spacer Template

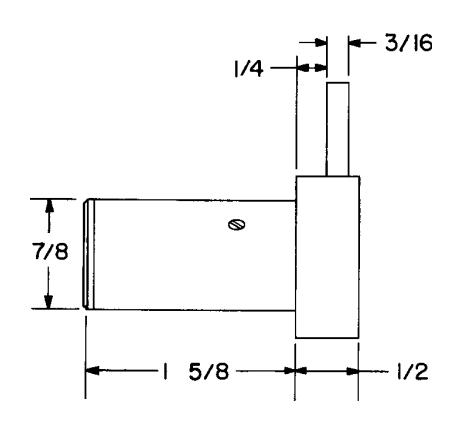

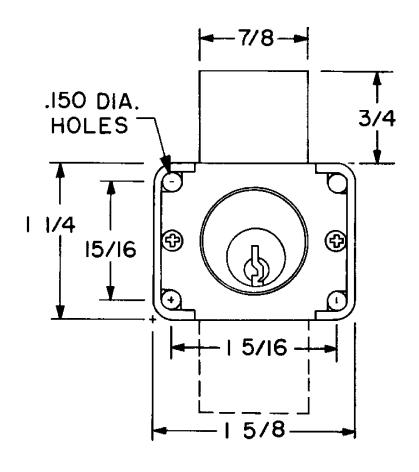

200DW 1-5/8" Dimensions

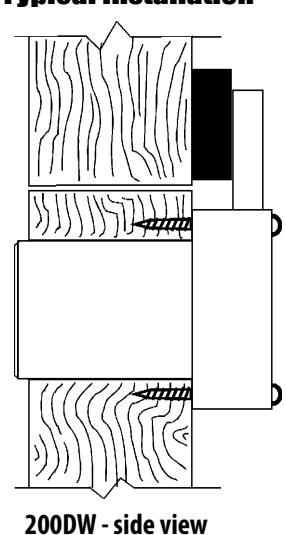

Typical Installation
