100M | 200M

N Series: Non-Ferrous MRI Deadbolt Door & Drawer Cabinet Locks

ANSI/BHMA Grade 1 E07121 | E07041

For use in medical MRI applications

SPECIFICATIONS

Keying: Can be keyed together with other N Series locks Non-magnetic: Contains all non-ferrous (non-magnetic) components and keys. Suitable for use in MRI (magnetic resonance imaging) applications. Includes copper plated non-magnetic keys.

Rekeyable: Easily rekeyable via set screw cylinder release mechanism

ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(100M) / E07041(200M).

Standard function: Key removable in locked or unlocked position. Standard function locks are non-handed.

Key-retaining: Key removable in locked position only. Specify handing (KL/KR for doors or KI/KV for drawers) when ordering.

Long bolt: Extends bolt 3/4" on both ends. Specify -LB option when ordering.

Standard locks: See our 100DR/200DW products

US Patent Nos: 4,899,563; 4,920,774

Body: Zinc die cast

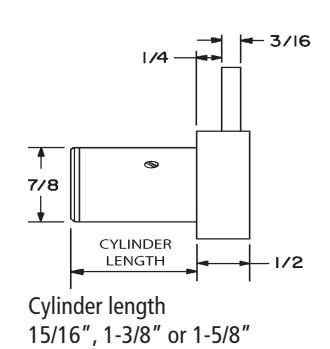

Cylinder: Solid brass, pin tumbler Cylinder length: 15/16", 1-3/8" or 1-5/8"

Barrel diameter: 7/8" Finish: US26D

Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system) Keys: Includes 2 keys per lock

Stock keying: KD/KA - 4 pin standard

Stock KA#: 101, 103, 107, 915, 51001, 51002, 51003,

51004

Masterkeyed: 5 pin standard Grand masterkeyed: Available Keyblank 5-pin copper plated: KBN-5B (use with 100M/200M MRI locks)

INCLUDED ACCESSORIES

100M: 2 keys, 56-1 bar strike, and lock mounting screws 200M : 2 keys, 56-1 bar strike, and lock mounting screws

OPTIONAL ACCESSORIES

Spacers: WP20 (3/16" thick), WP21 (3/32" thick), WP22

(1/4" thick), WP23 (1/2" thick)

Trim collars: TR1256

Through-bolt hardware: ETS2 through-bolt plate, ETS2-PL

trim pull and ETST2 template

Extended (long) bolt: 15-1-35 (for use with 100M or

200M)

100M

Function: Cabinet door lock ANSI/BHMA No. E07121 Barrel length: 15/16" or 1-3/8"

Extended bolt: Extends overall bolt length by 1-1/2". Specify -LB option at time of order.

Includes copper plated non-magnetic keys. With long-bolt option

US26D finish

200M

Function: Drawer lock ANSI/BHMA No. E07041 Barrel length: 15/16", 1-3/8" or 1-5/8" Extended bolt: Specify -LB option at time of order.

plated non-magnetic keys.

With long-bolt option

100M | 200M

N Series: Non-Ferrous MRI Deadbolt Door & Drawer Cabinet Locks

ANSI/BHMA Grade 1 E07121 | E07041 For use in medical MRI applications

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

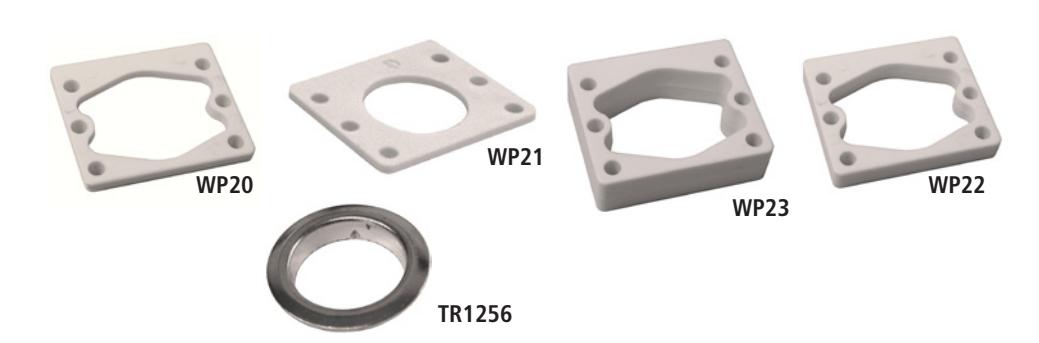

Internal plastic spacers

• WP20 3/16" thick plastic spacer
• WP21 3/32" thick plastic spacer
• WP22 1/4" thick plastic spacer
• WP23 1/2" thick plastic spacer

Strikes

• 07S, 12-1, 12-2, 12-3, 12-4, 12-5, 56-1

Trim Ring

• TR1256 trim ring

Extended bolt

• 15-1-35 (see below for installed dimensions)

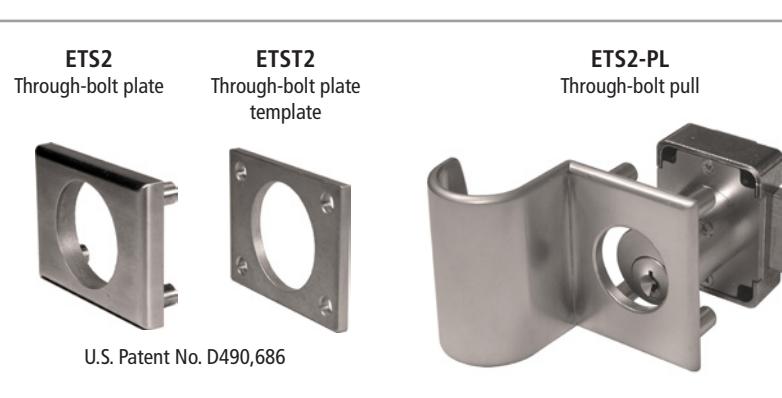

Through-bolt plate

External metal 1/8" or 1/4" through-bolt plate allows for an attractive flush mounting of the cabinet lock face. Available in US3 or US26D finish.

• ETS2-125 through-bolt plate, 1/8" thick
• ETS2-250 through-bolt plate, 1/4" thick

Through-bolt plate template

Allows for proper mounting hole placement of throughbolt plate. Can be used as a 1/8" shim spacer. Available in US3 and US26D finish.

• ETST2 through-bolt plate template

DIMENSIONS

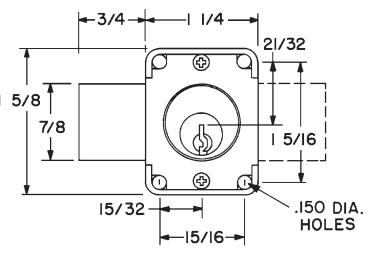

100M Cabinet Door Lock

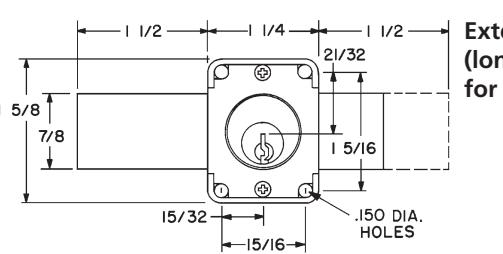

Extended bolt (long) option for 100M

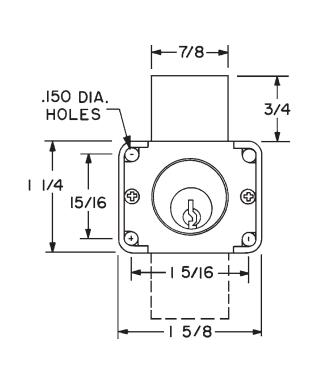

200M Drawer Lock

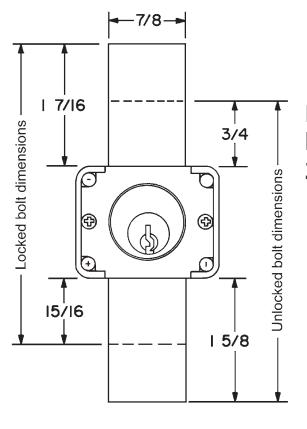

Extended (long) bolt option for 200M
