100DR | 200DW

N Series: Deadbolt Door & Drawer Cabinet Locks

ANSI/BHMA Grade 1 - E07121 | E07041 Woodwork Institute (WI) acknowledged product

SPECIFICATIONS

Keying: Can be keyed together with other N Series locks Rekeyable: Easily rekeyable via set screw cylinder release mechanism

ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(100DR) / E07041(200DW).

Optional functions: See also our 100M/200M Series MRI locks and our 100B/200B weather resistant locks

Standard function: Key removable in locked or unlocked position. Standard function locks are non-handed.

Key-retaining: Key removable in locked position only. Specify handing (KL/KR for doors or KI/KV for drawers) when ordering.

Long bolt: Extends bolt 3/4" on both ends. Specify -LB option when ordering.

US Patent Nos: 4,899,563; 4,920,774

Body: Zinc die cast

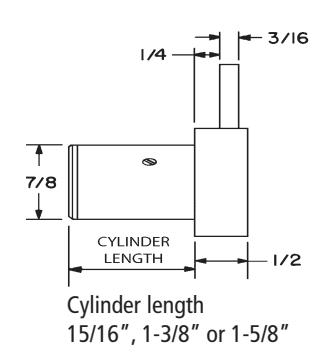

Cylinder: Solid brass, pin tumbler Cylinder length: 15/16", 1-3/8" or 1-5/8"

Barrel diameter: 7/8"

Finish: 26D, US4, 10B or US19 (US19 not available on

100 1-3/8 "or 200 1-5/8") Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system) Keys: Includes 2 keys per lock

Stock keying: KD/KA - 4 pin standard

Stock KA#: 101, 103, 107, 915, 51001, 51002, 51003, 51004

Masterkeyed: 5 pin standard Grand masterkeyed: Available Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L) Keyblank 5-pin: KBN-5-NP (equivalent to NA12, 1069LA)

Keyblank 5-pin copper plated: KBN-5B (use with 100M/200M MRI locks)

INCLUDED ACCESSORIES

100DR: 2 keys, 56-1 bar strike, and lock mounting screws 200DW : 2 keys, 12-3 angle strike, and lock mounting screws

OPTIONAL ACCESSORIES

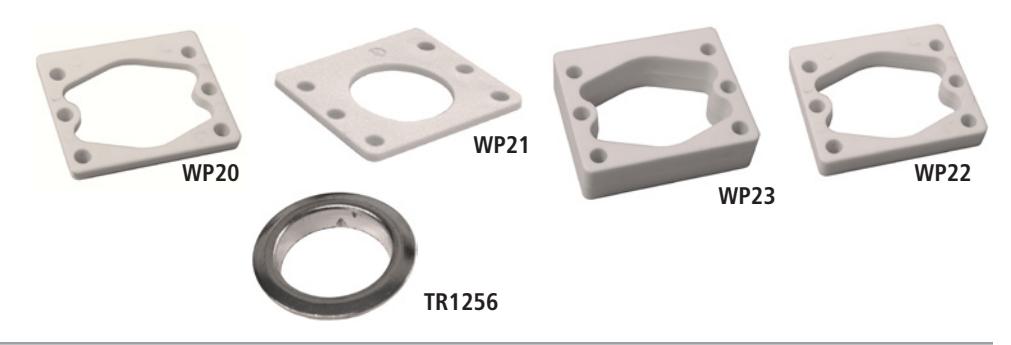

Spacers: WP20 (3/16" thick), WP21 (3/32" thick), WP22 (1/4" thick), WP23 (1/2" thick)

Strikes: 07S, 12-1, 12-2, 12-3, 12-4, 12-5, 56-1

Trim collars: TR1256

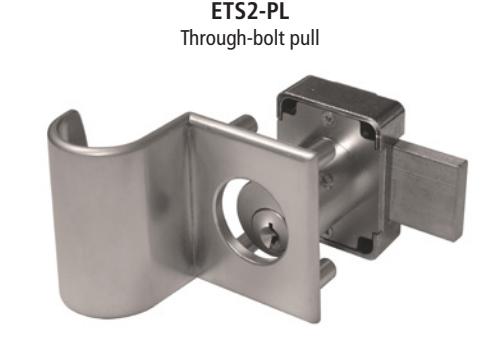

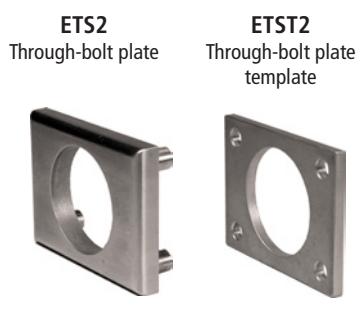

Through-bolt hardware: ETS2 through-bolt plate, ETS2-PL

trim pull and ETST2 template

Extended (long) bolt: 15-1-35 (for use with 100DR or

200DW)

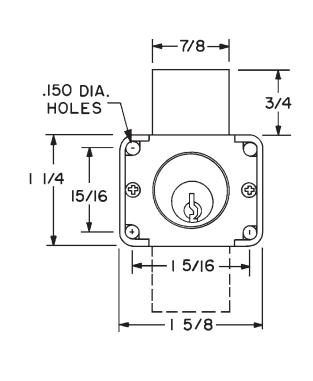

100DR

Function: Cabinet door lock ANSI/BHMA No. E07121 Barrel length: 15/16" or 1-3/8"

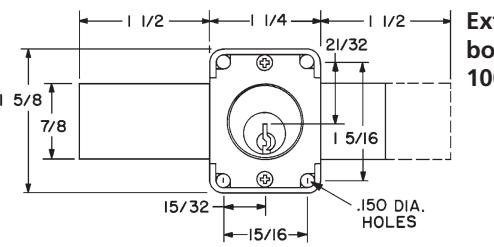

Long bolt: Extends overall bolt length by 1-1/2". Specify -LB option at time of order.

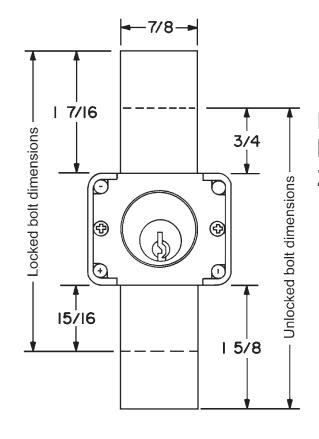

With long-bolt option

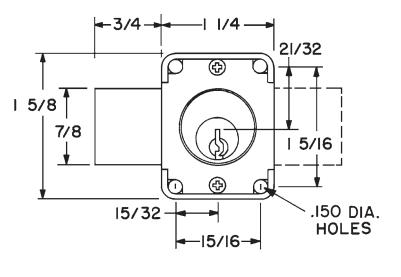

200DW

Function: Drawer lock ANSI/BHMA No. E07041 Barrel length: 15/16", 1-3/8" or 1-5/8" Long bolt: Specify -LB option at time of order.

With long-bolt option

AVAILABLE FINISHES

US26D US4 US10B US19
