Olympus Lock N Series – National Keyway DCN Installation Instructions
Open the original PDF document
View PDF
| Series | Barrel Length | Keying | Bolt Type | Mounting | Revision Date |
|---|---|---|---|---|---|
| DCN | See chart | N Series - National Keyway | Cam lock | Surface | 6/2019 |
DCN Cam Lock - Installation Instructions

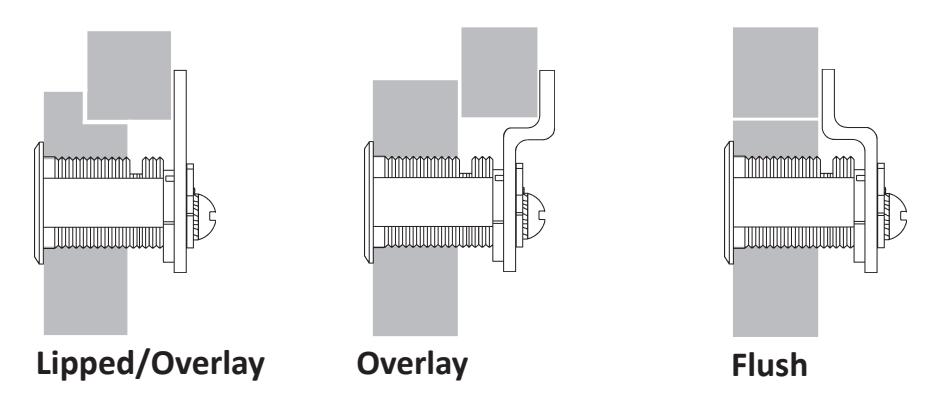

Typical Installation
Included Accessories:
2 keys 3 lock mounting screws Straight cam Offset reversible cam Anti-rotation plate Lost-motion cam shifter

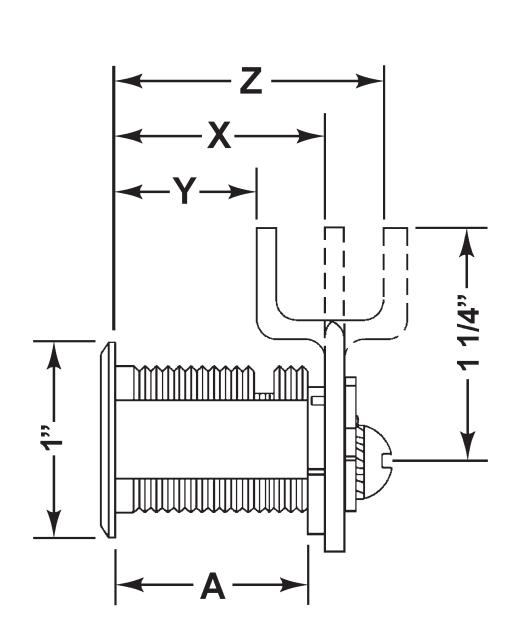

Cam Lock Dimensions
|
For Mat.
Thickness |
Straight
Cam (X) |
Inbent
Cam (Y) |
Outbent
Cam (Z) |
Cylinder
Length (A) |
|
|---|---|---|---|---|---|
| DCN1 | 3/4" | 1-1/16" | 3/4" | 1-3/8" | 1" |
| DCN2 | 7/8" | 1-3/16" | 7/8" | 1-1/2" | 1-1/8" |
| DCN3 | 1-1/8" | 1-7/16" | 1-1/8" | 1-3/4" | 1-3/8" |
| DCN4 | 1-1/2" | 1-13/16" | 1-1/2" | 2-1/8" | 1-3/4" |
Mounting Cutout

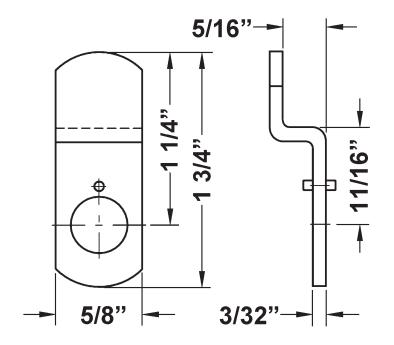

Straight Cam Offset Reversible Cam
DCN

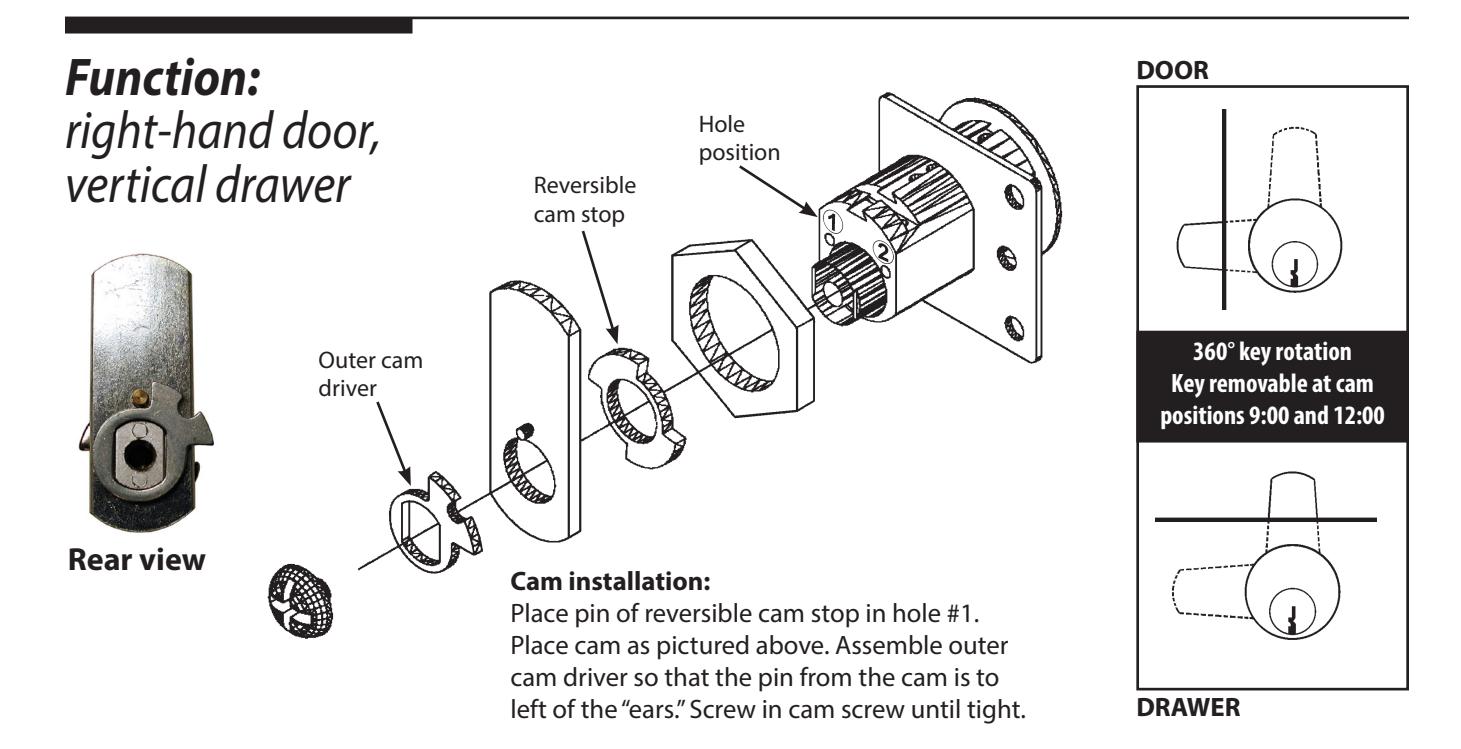

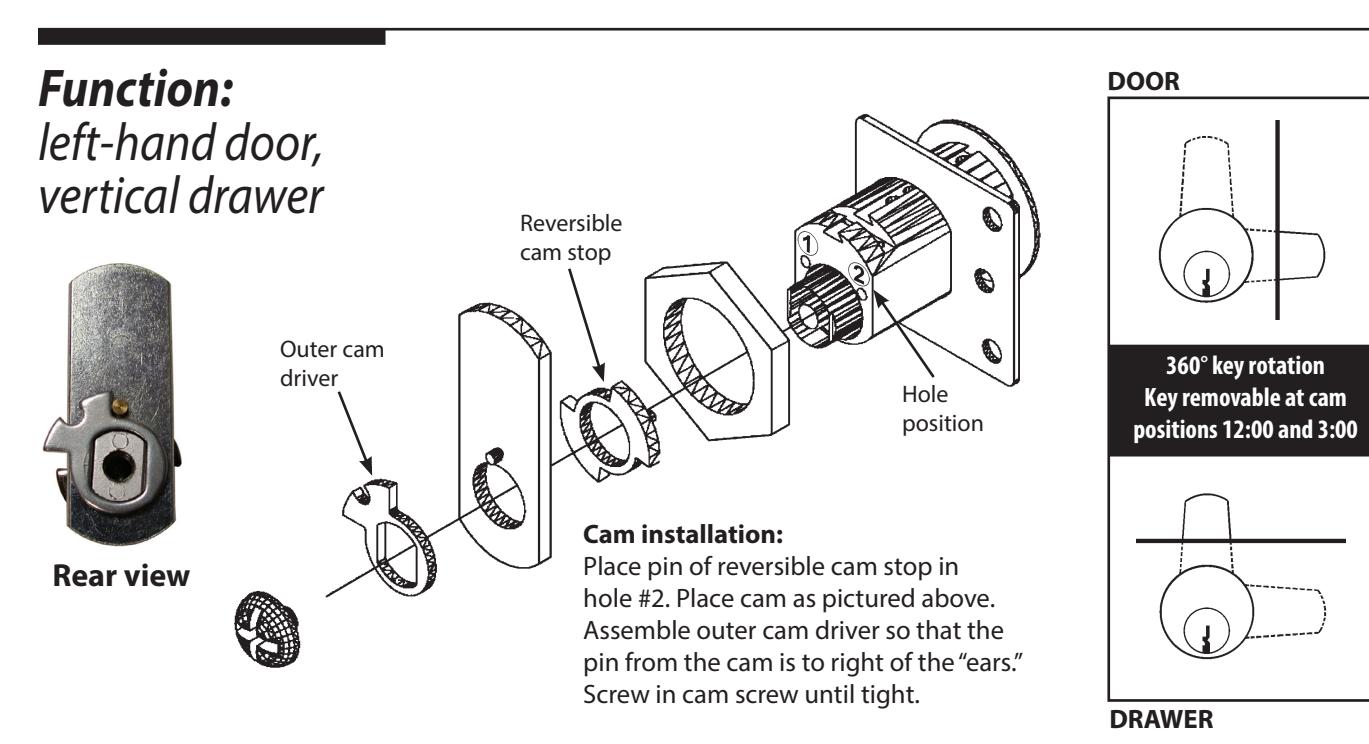

All below configurations can be used with straight cam or offset cam (in either the inbent or outbent position).
DCN

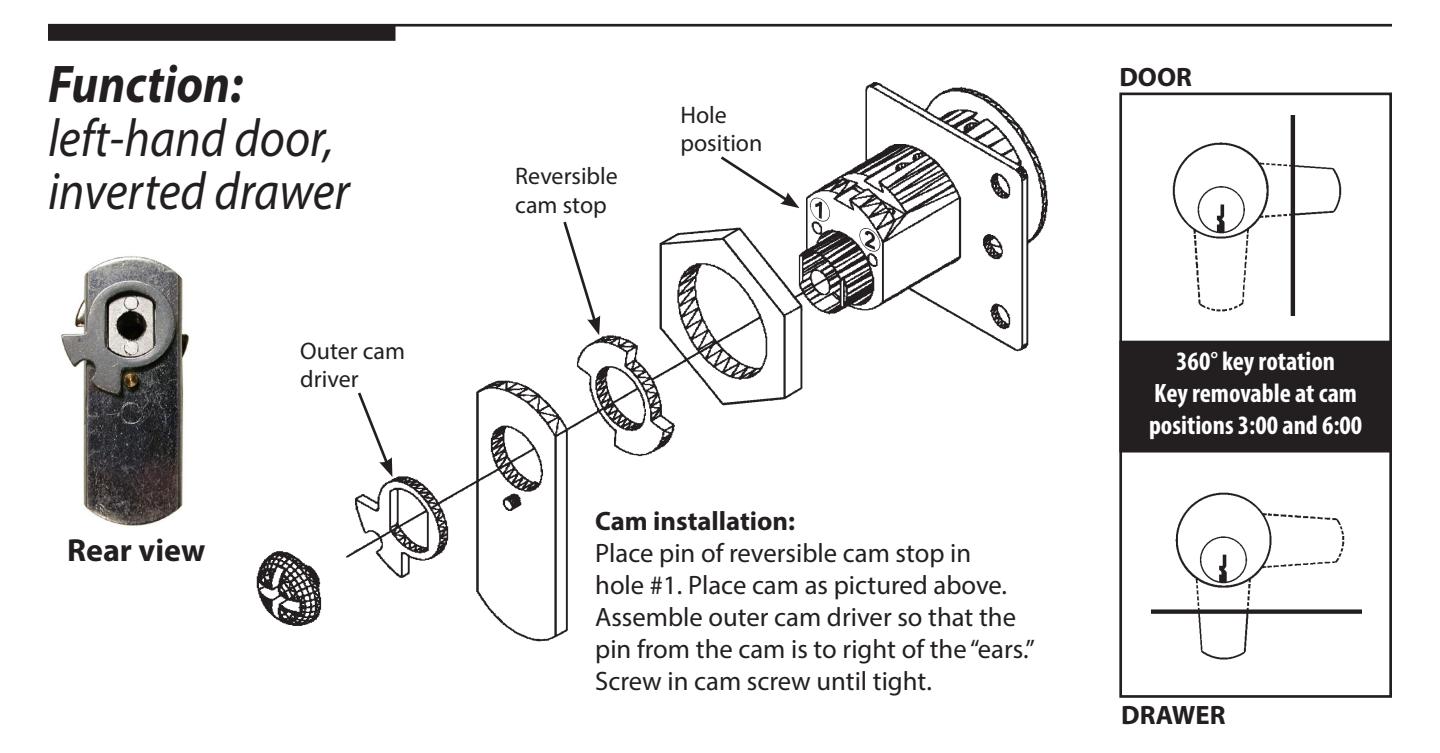

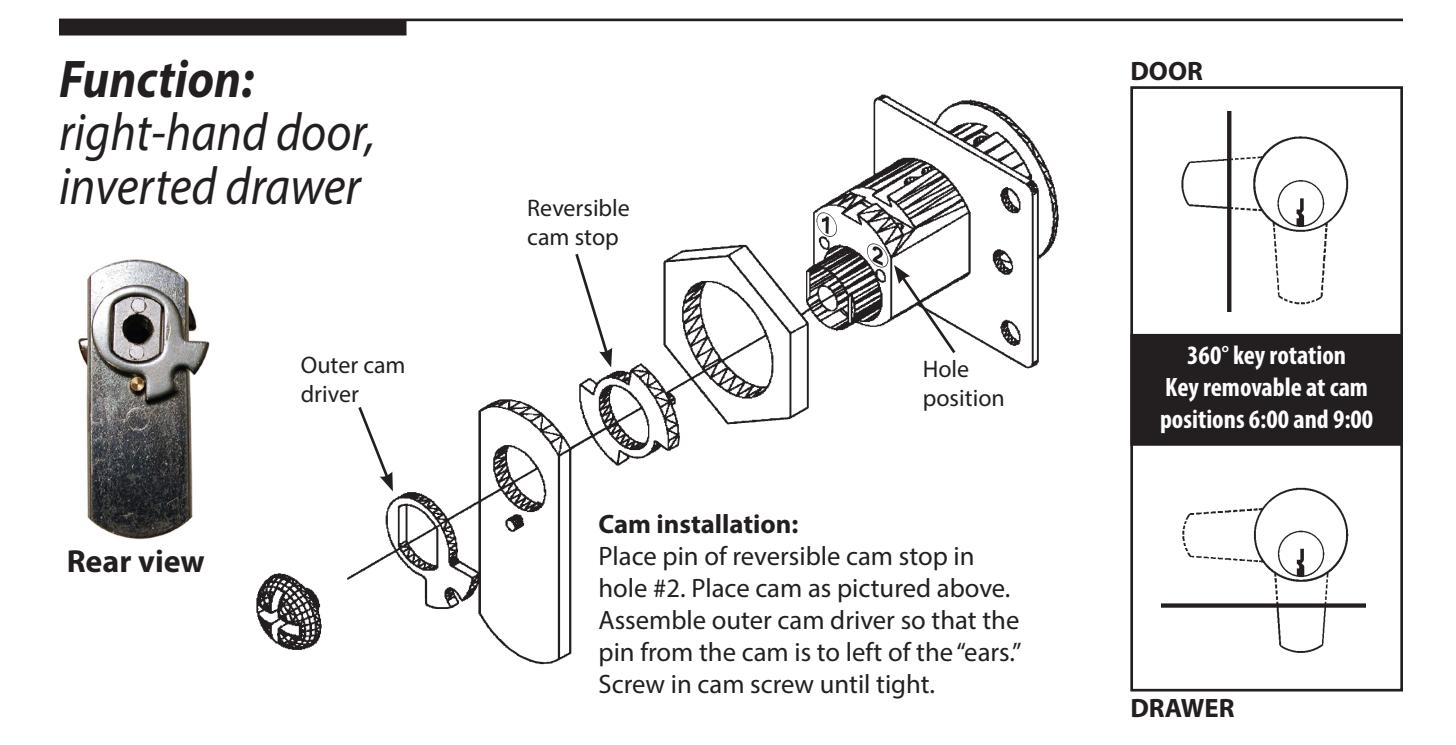

All below configurations can be used with straight cam or offset cam (in either the inbent or outbent position).
