Olympus Lock N Series – National Keyway 998 Installation Instructions
Open the original PDF document
View PDFInstallation Instructions
998

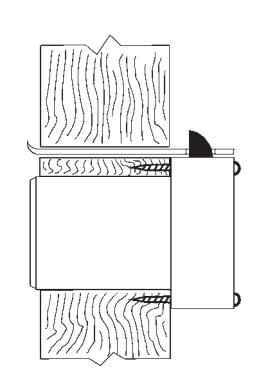

Typical Installation
IMPORTANT note for lock installation:

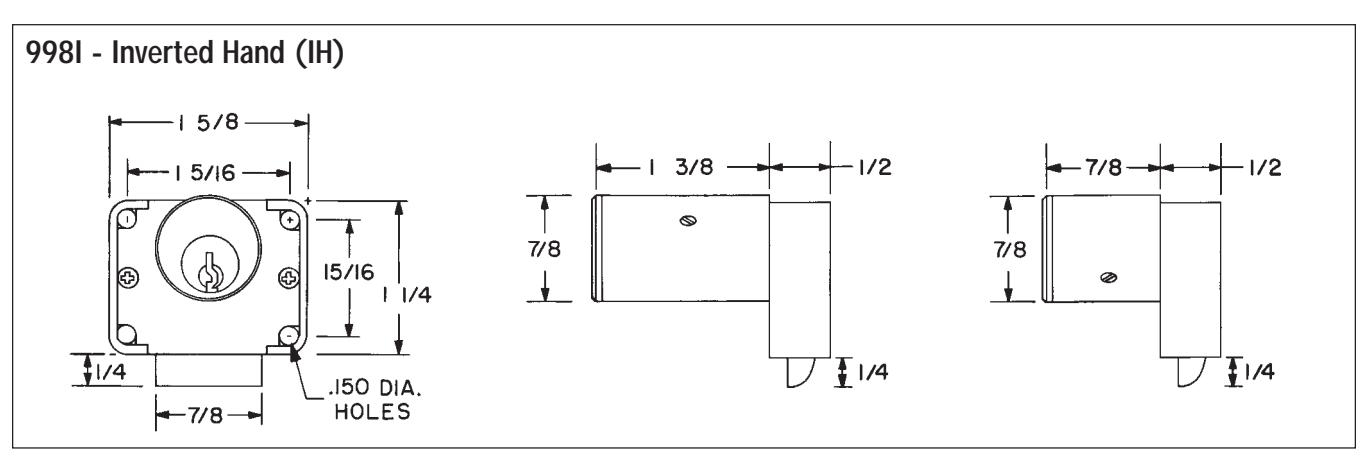

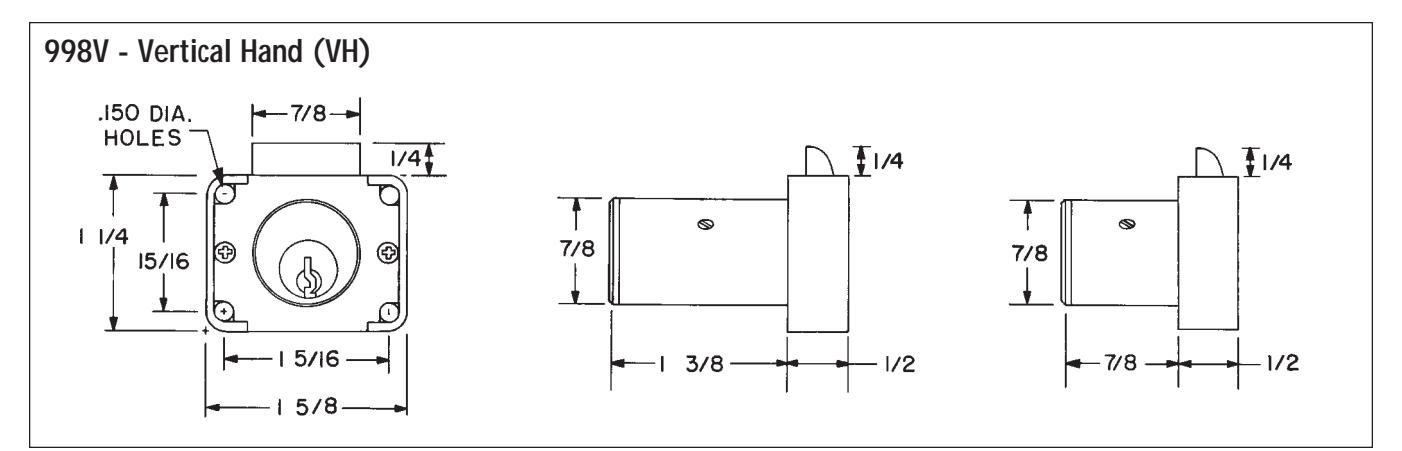

Be sure and position barrel/cylinder and bolt for desired handing before drilling hole for lock. The position of the barrel/ cylinder relative to the lock body is different for each or the four available handings. It is critical to configure the lock for the correct handing before starting installation.
Strike installation: Line up center mark on latch with center mark on strike for correct strike placement.
|
Title
Installation instructions for 998 series cabinet drawer lock |
|||||
|---|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date | |
| 998 | 7/8" or 1-3/8" | Latch | Surface | 06/2004 | |
