Olympus Lock N Series – National Keyway 300SD Installation Instructions
Open the original PDF document
View PDF
| Series | Barrel Length | Keying | Bolt Type | Mounting | Revision Date |
|---|---|---|---|---|---|
| 300SD | 7/8" | N Series - National Keyway | Plunger | Surface | 5/2019 |
300SD Plunger Lock - Installation Instructions

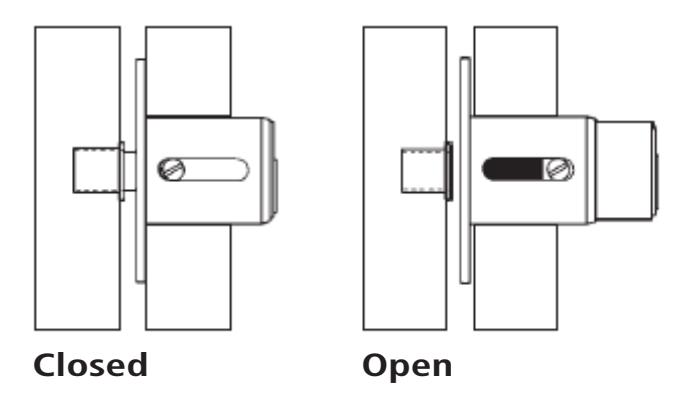

Typical Installation
Included Accessories:
- 2 keys
- 2 lock mounting screws

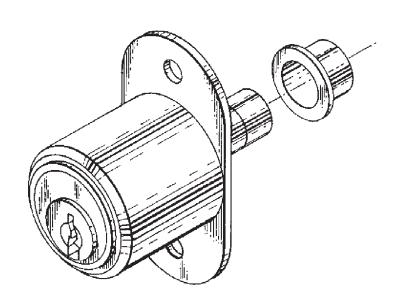

- 1 Matching thimble strike
- 1 Machine thread bolt extender
- 1 Machine thread strike locator

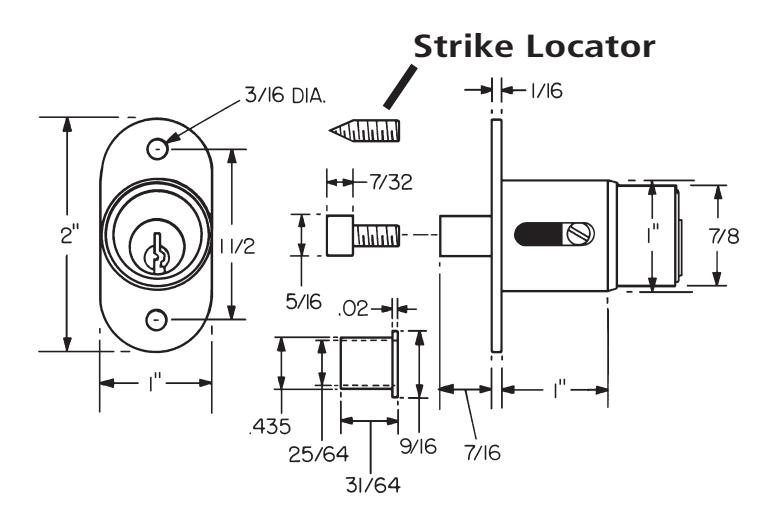

Strike Locator
Use strike locator to correctly mark location to install strike.
Bolt Extender
Use optional bolt extender for excessive gaps in bypassing doors.
