View PDFInstallation Instructions

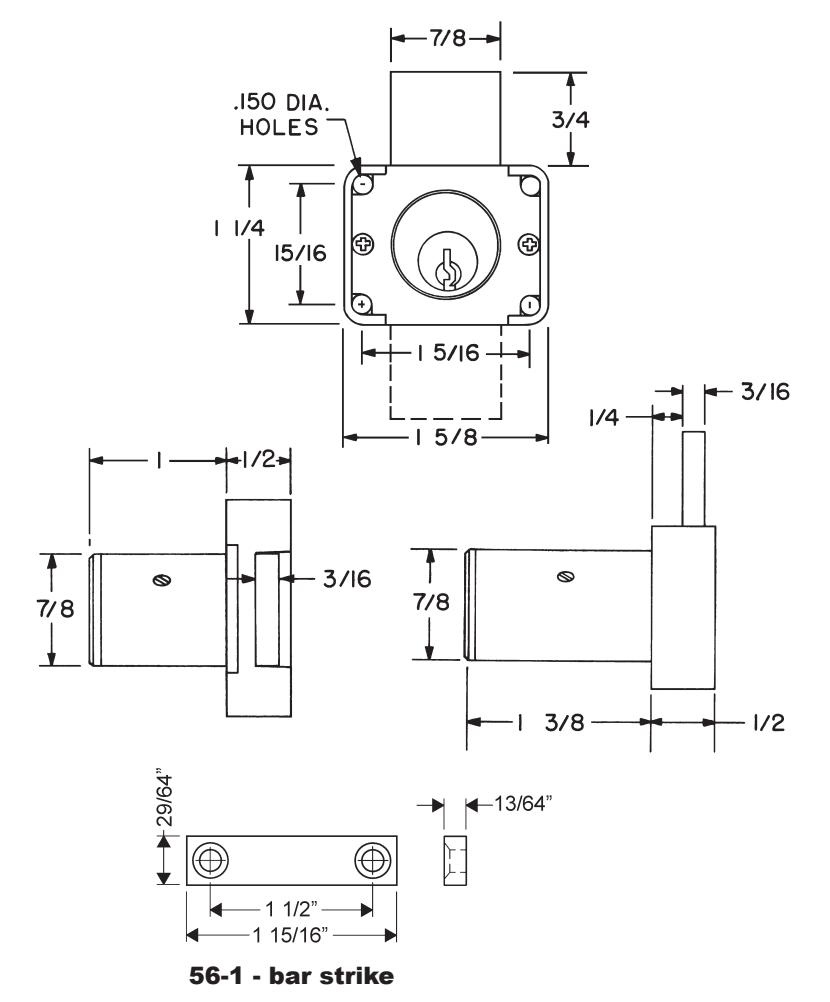

200M

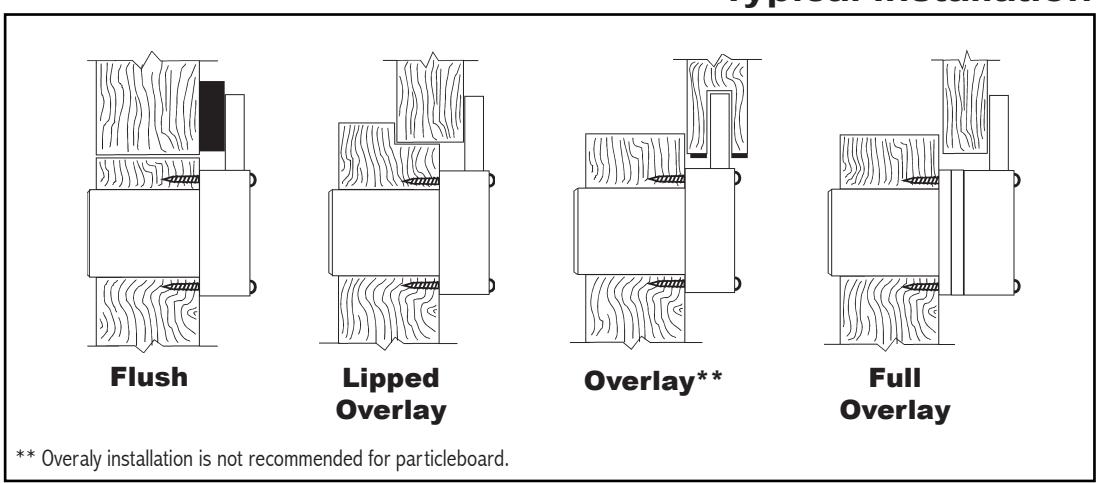

Typical Installation

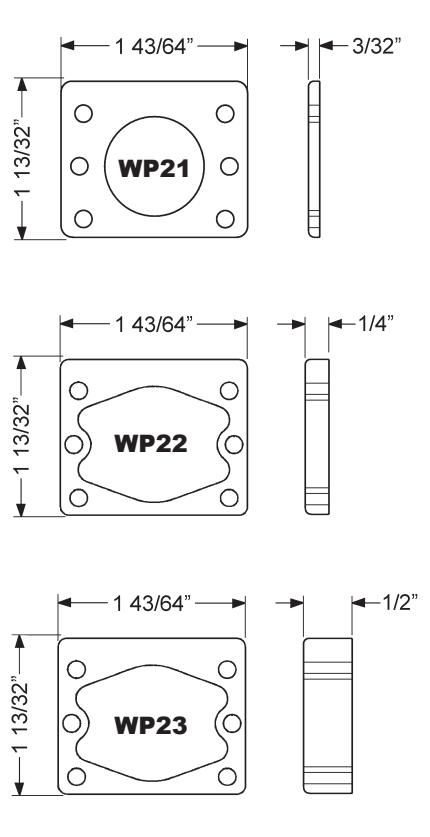

Note: Use of spacers and strikes depends on application and material thickness.
| Title | ||||
|---|---|---|---|---|
| Installation instructions for 200M series cabinet door lock | ||||
|
Series
200M |
Barrel Length
7/8" or 1-3/8" |
Bolt type
Deadbolt |
Mounting
Surface |
Revision Date
11/2013 |
