Olympus Lock N Series – National Keyway 200DW Drawer Lock Installation Instructions
Open the original PDF document
View PDF
| Series | Barrel Length | Keying | Bolt Type | Mounting | Revision Date |
|---|---|---|---|---|---|
| 200DW |
7/8", 1-3/8" and
1-5/8" |
N Series - National Keyway | Deadbolt | Surface | 5/2019 |

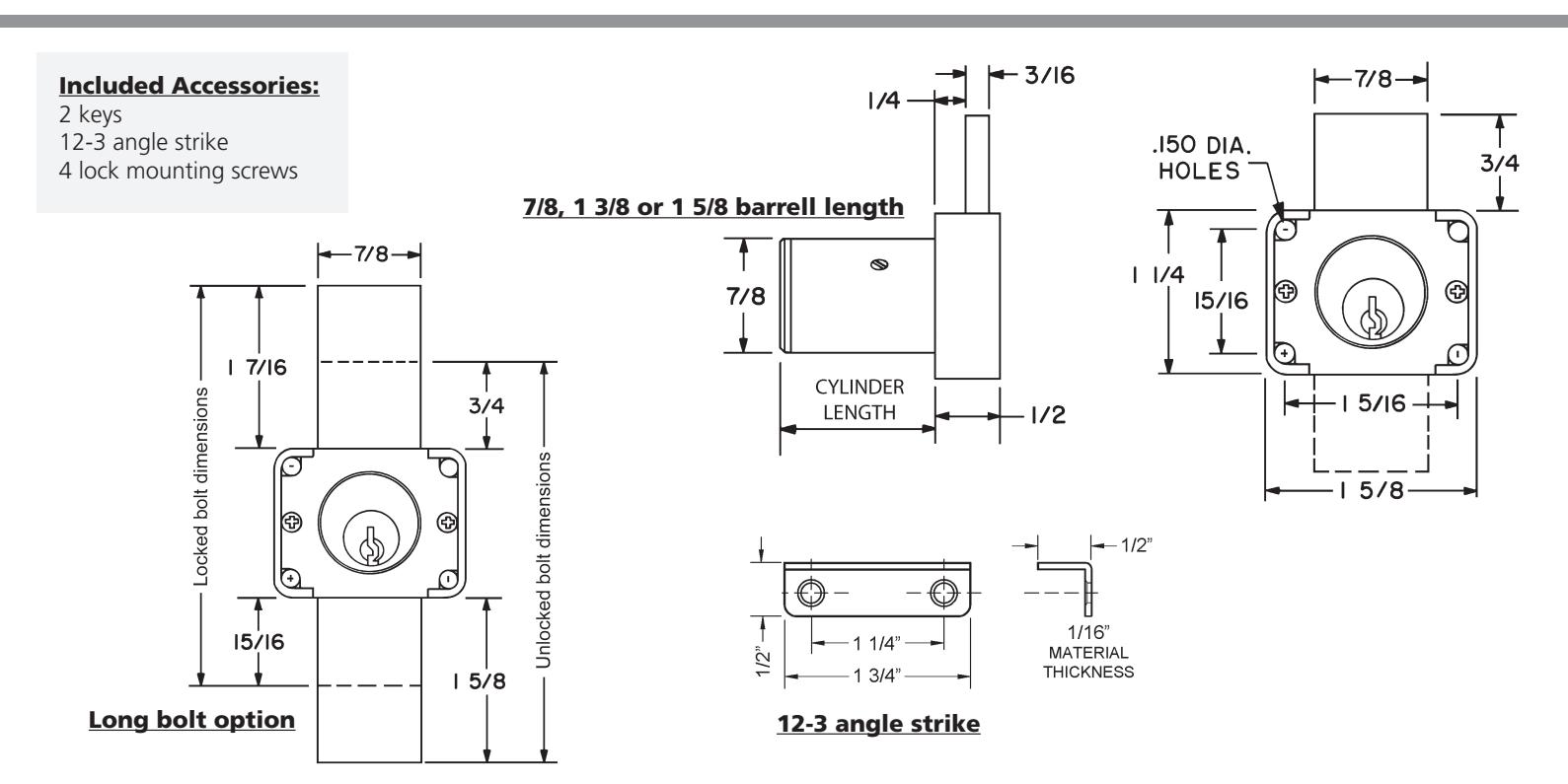

200DW Drawer Lock - Installation Instructions
Typical Installation
Flush Lipped Overlay Overlay* Full Overlay
* Overlay installation is not recommended for particleboard.

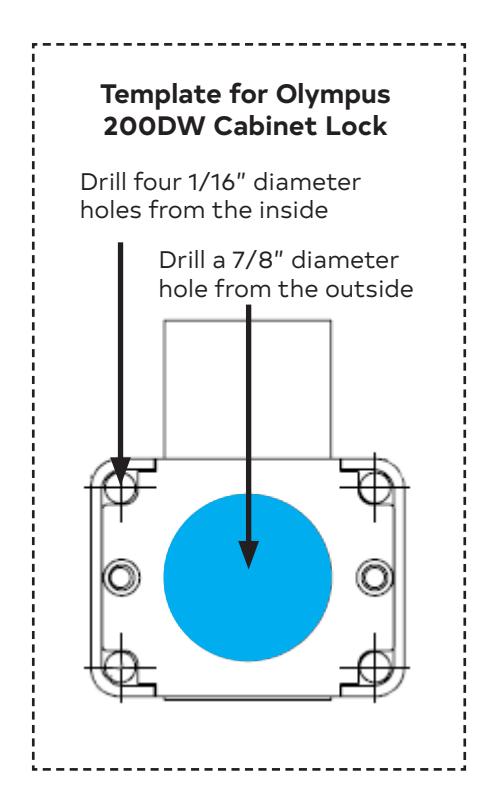

Drill Guide Cut out this handy drill guide for easy installation.
