View PDFInstallation Instructions
100M

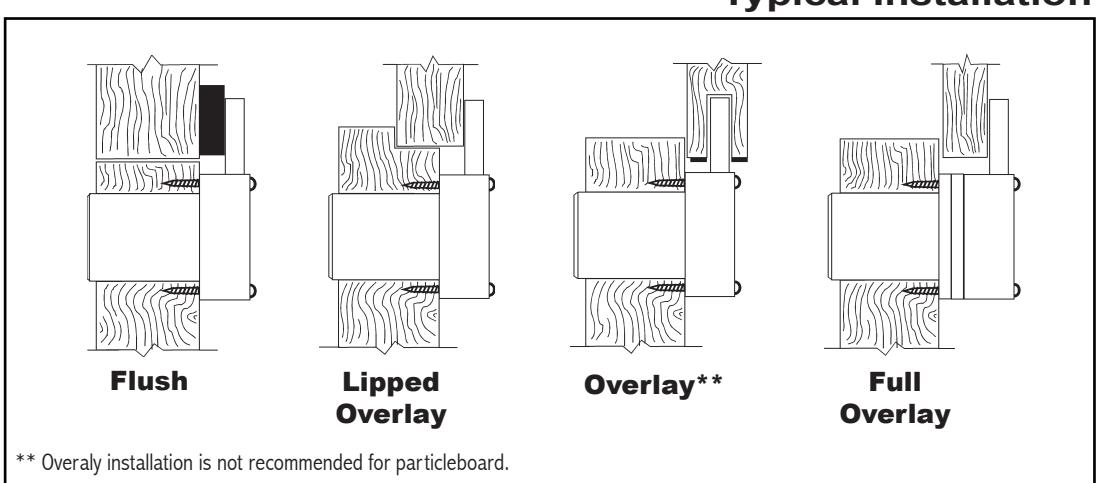

Typical Installation

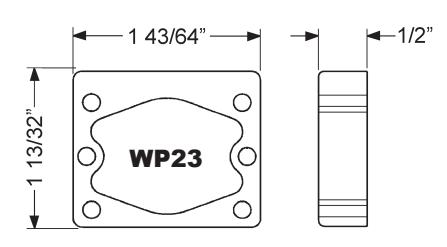

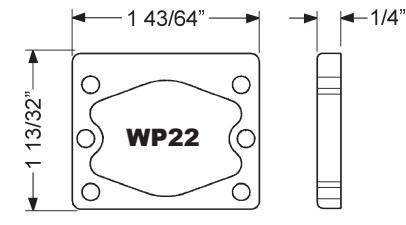

Note: Use of spacers and strikes depends on application and material thickness. 56-1 - bar strike
|
Title

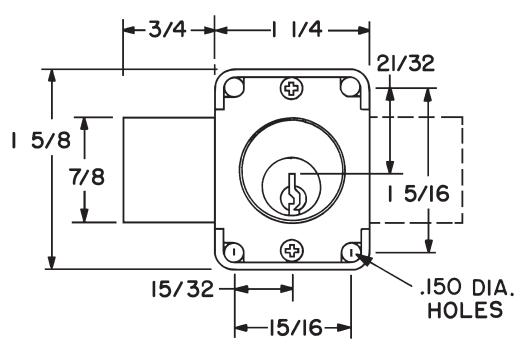

Installation instructions for 100M series cabinet door lock |
||||
|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date |

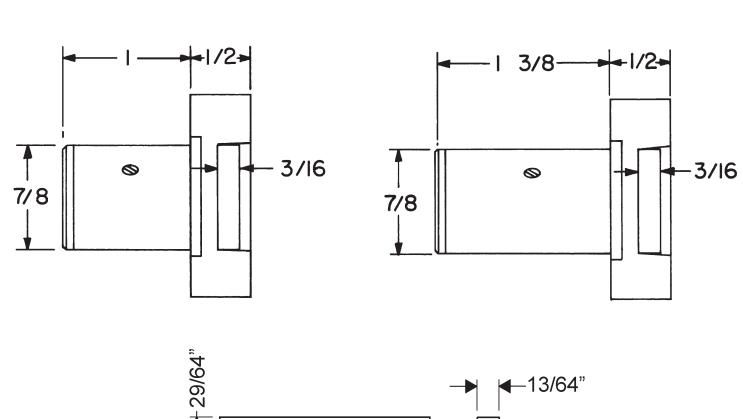

| 100M | 7/8" or 1-3/8" | Deadbolt | Surface | 11/2013 |
