Olympus Lock N Series – National Keyway 100DR Door Lock Installation Instructions
Open the original PDF document
View PDF

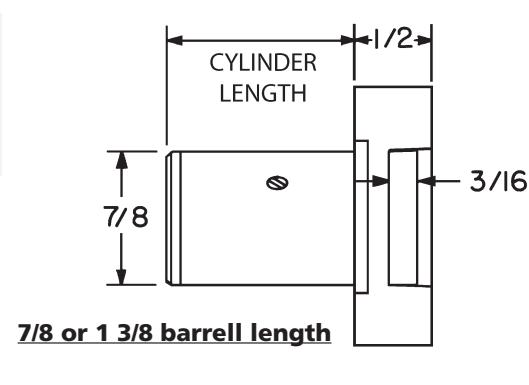

| Series | Barrel Length | Keying | Bolt Type | Mounting | Revision Date |
|---|---|---|---|---|---|
| 100DR | 7/8" and 1-3/8" | N Series - National Keyway | Deadbolt | Surface | 5/2019 |

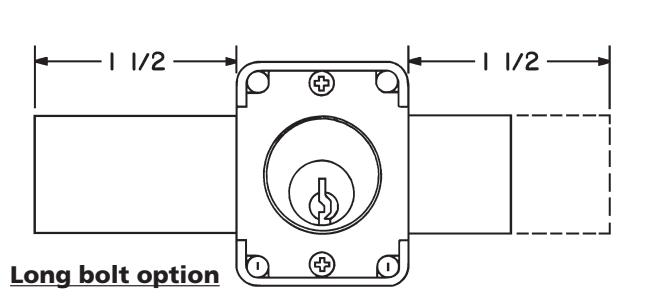

100DR Door Lock - Installation Instructions

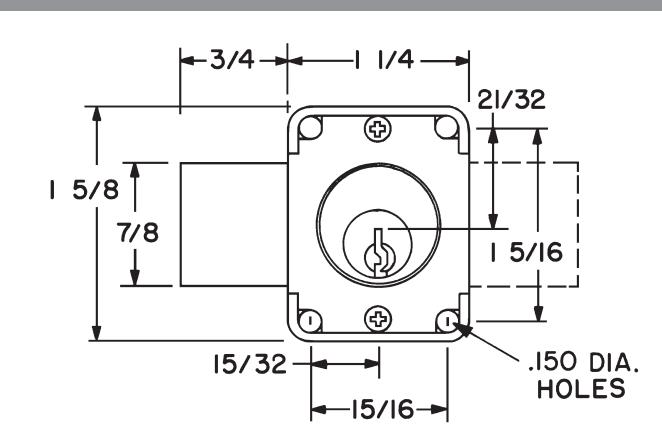

Typical Installation
Flush Lipped Overlay Overlay* Full Overlay
Included Accessories:
2 keys 56-1 bar strike 4 lock mounting screws
56-1 bar strike

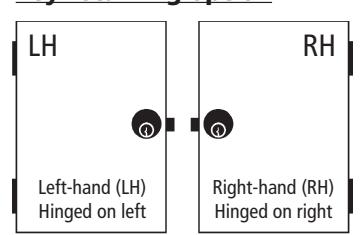

Installation for key-retaining option

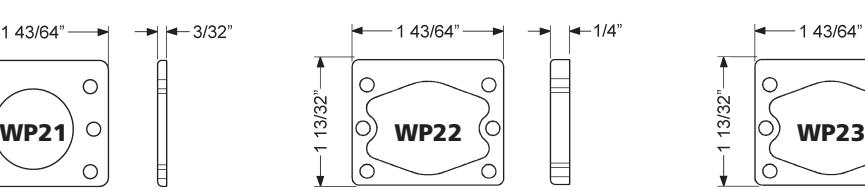

Spacer options Note: use of spacers and strikes depends on application and material thickness.
* Overlay installation is not recommended for particleboard.

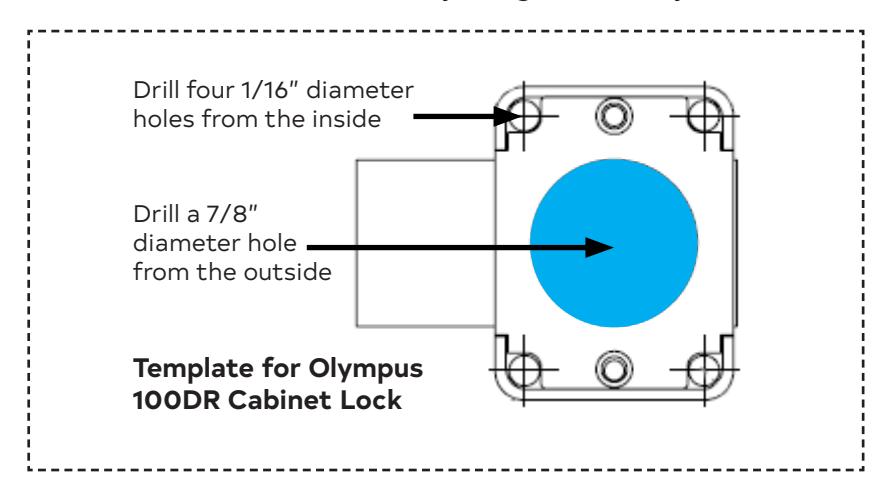

Drill Guide Cut out this handy drill guide for easy installation.
