YA93LM/DM

IMPORTANT:

It is highly recommended that you install the cam/prong driver and lock cylinder into the lock body and cycle to the locked position before assembling cam, cam shifter and stop pin onto the back of the lock.

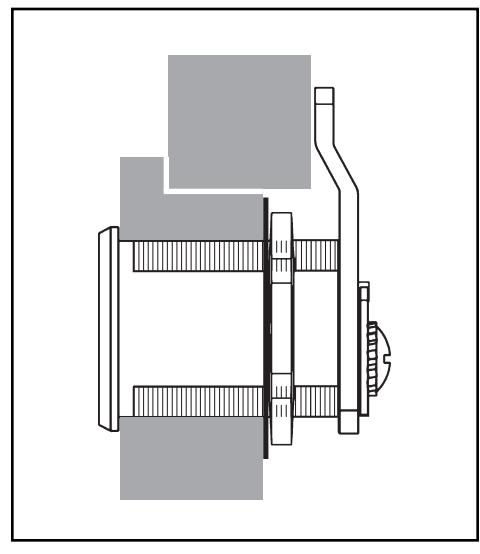

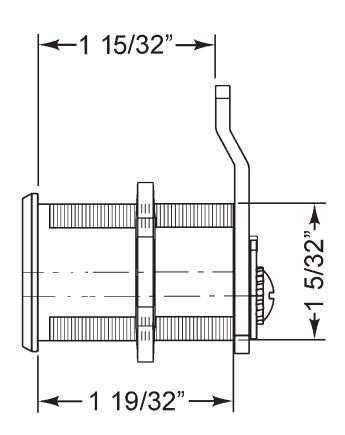

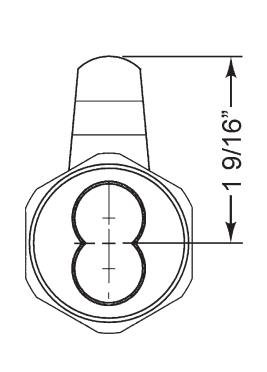

Typical Installation

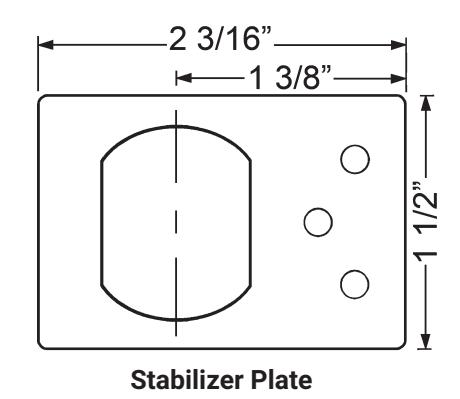

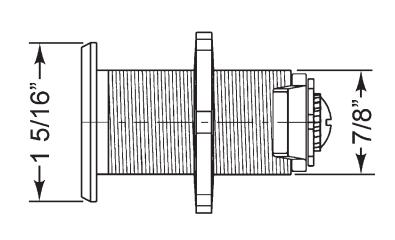

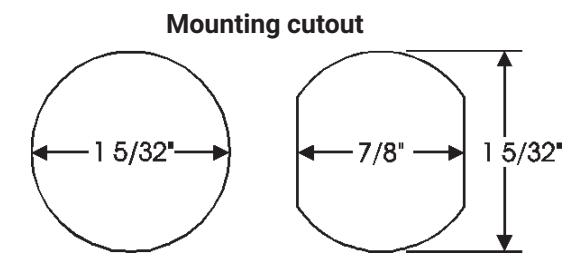

Lock diameter is 1-1/8". Drilled hole should be slightly larger.

Title Installation instructions for YA93LM/DM series cam lock
Series	Barrel Length	Bolt type	Mounting	Revision Date
YA93	1-19/32"	Cam lock	Surface	09/2015

YA93LM/DM

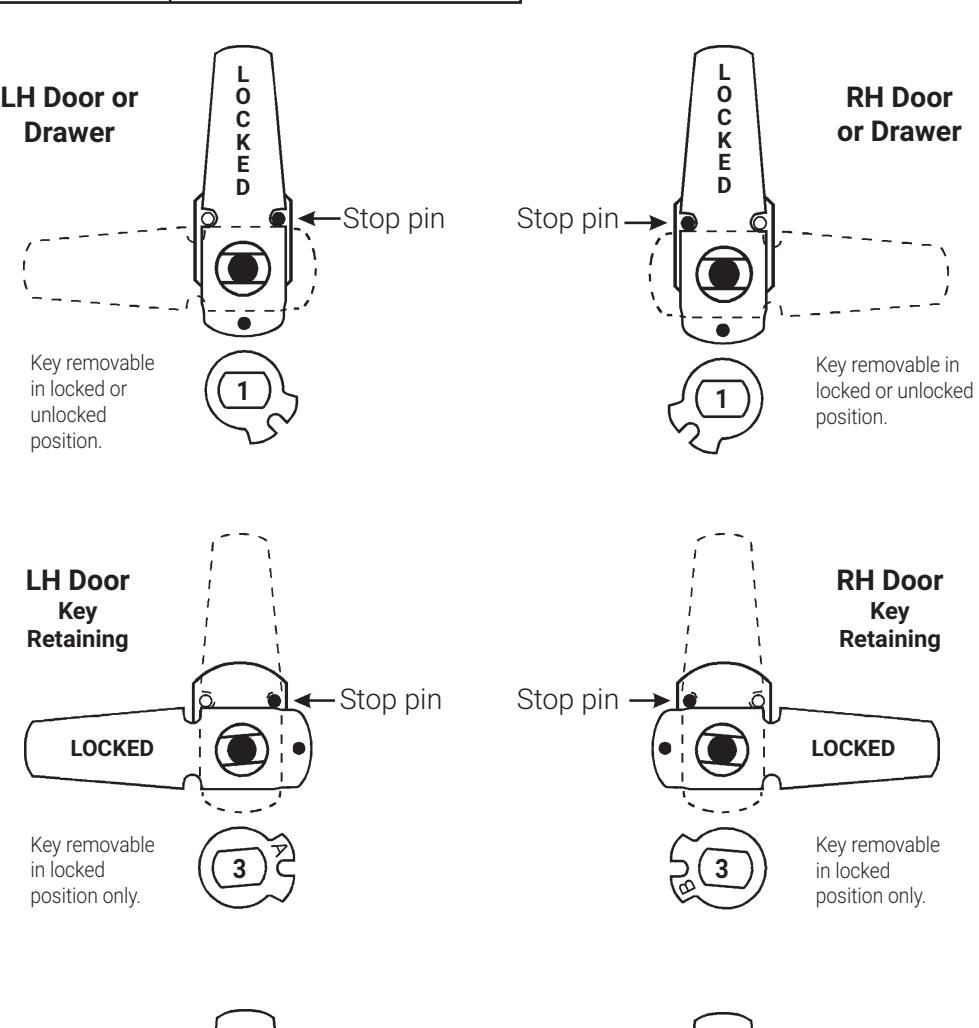

Assembled with vertical long cam 720-3-2 or extra long 3" cam 720-3-4

lost motion cam shifter (non-key-retaining) key retaining drawer cam shifter

720-CDDM (A Side) key retaining door cam shifter

720-CDDM (B Side) key retaining door cam shifter

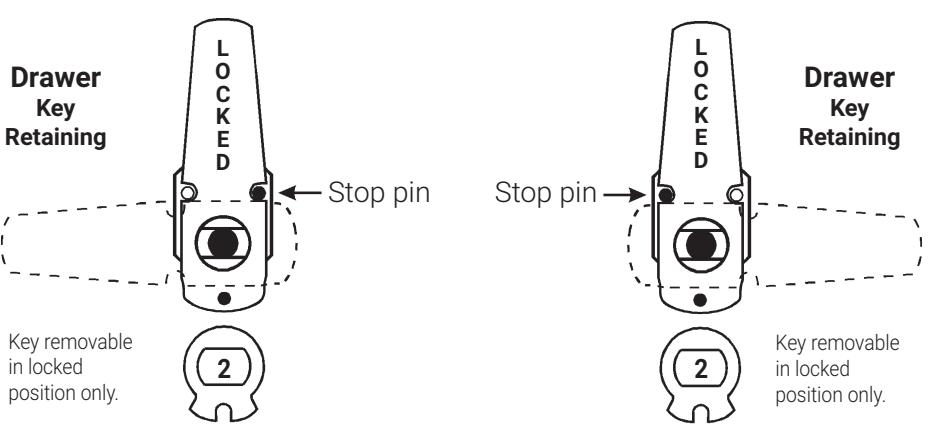

Assembled with short cam 720-3-1 YA93LM/DM

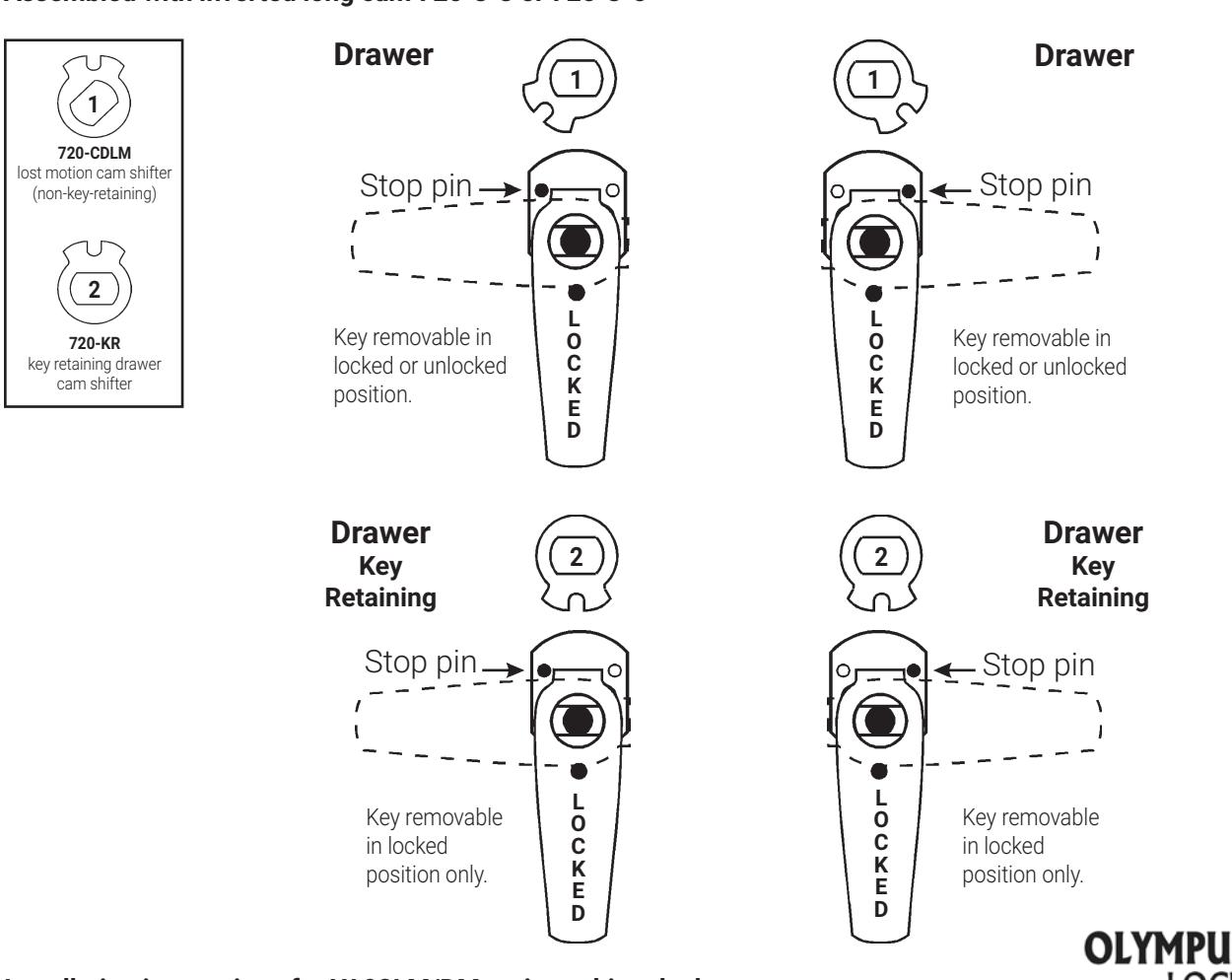

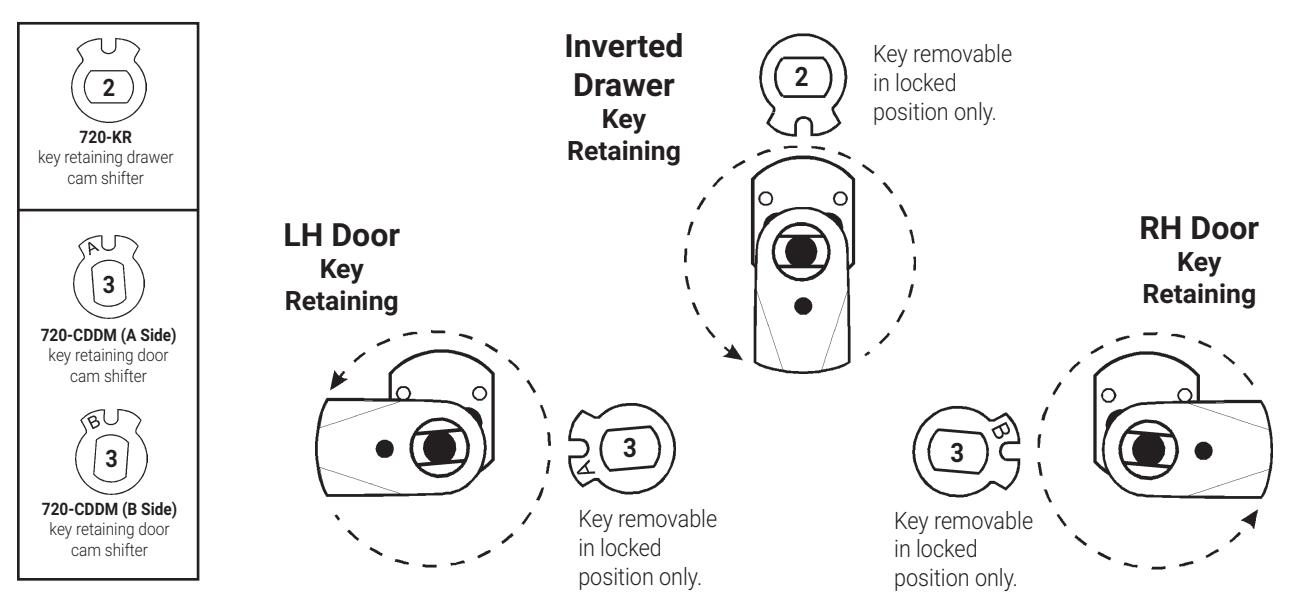

Assembled with inverted long cam 720-3-3 or 720-3-5
