Olympus Lock – Medeco-Yale IC Core 931DR Series Cabine Lock Installation Instructions
Open the original PDF document
View PDFInstallation Instructions

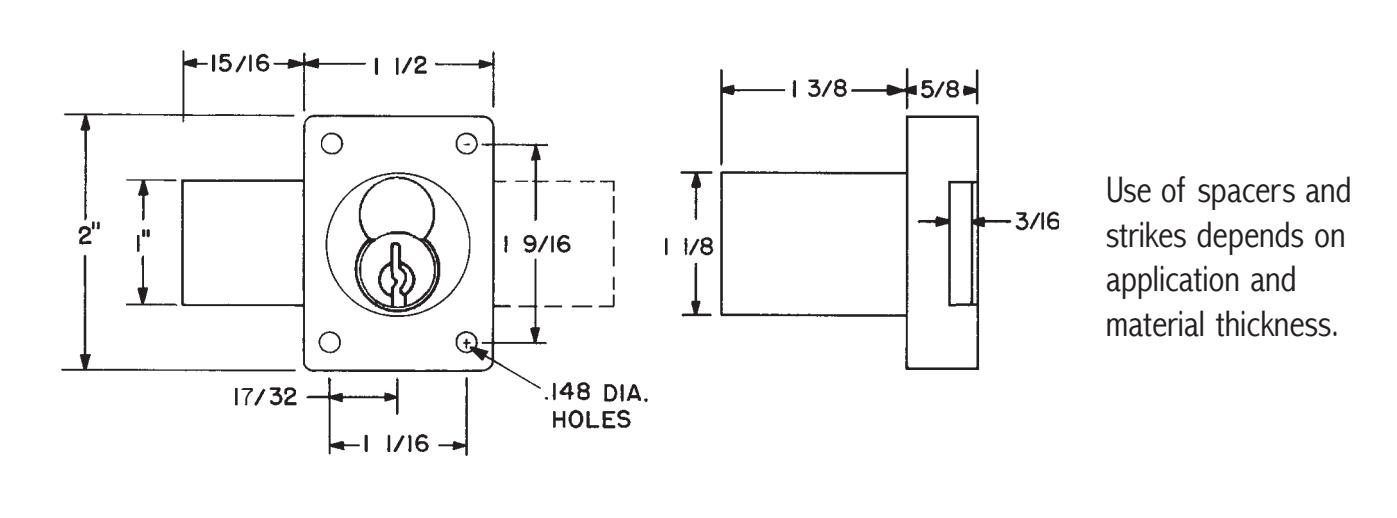

931DR

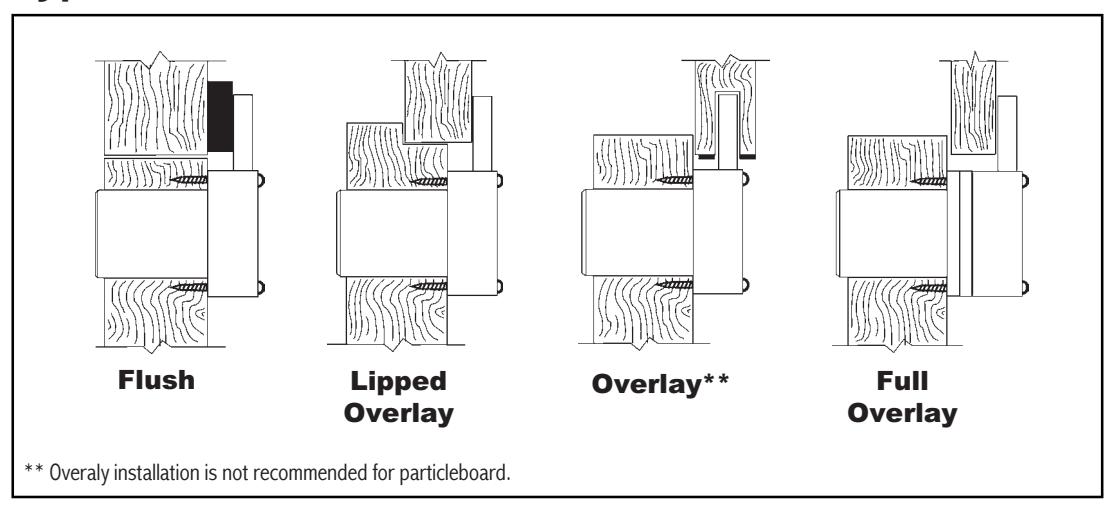

Typical Installation
10-350 - 1/8" spacer
| Title Installation instructions for 931DR series cabinet lock | ||||
|---|---|---|---|---|
| installation instructions for 93 LDR series cabillet lock | ||||
| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| 931DR | 1-3/8" | Deadbolt | Surface | 11 / 2006 |
