L78 SERIES

S Series: Schlage C Keyway Latch Lock

Easily field reversible between door and drawer functions.

SPECIFICATIONS

Reversible: Easily field reversible between door

and drawer functions

Rekeyable: Easily rekeyable via set screw

cylinder release mechanism

US Patent Nos: 4,899,563; 7,874,189 B2

Body: Zinc die cast

Cylinder length: 1-1/8" or 1-3/8"

Barrel diameter: 1-1/8" Finish: 26D or US3

Packaged: Packed 10 per box

INCLUDED ACCESSORIES

For 1-1/8"barrel length locks:

10-351 plastic spacers (qty 2) L78ST-1 lipped strike

For 1-3/8"barrel length locks:

L78ST-2 lipped strike

L78 KEYING INFORMATION

Keying: Can be keyed together with other

Schlage C Keyway locks Keyway: Schlage C keyway Keys: Includes 2 keys per lock Cylinder: Solid brass, pin tumbler Stock keying: KD/KA - 5 pin standard

Stock KA#: 101, 102

Masterkeying: 5 pin standard, 6-pin available

Grand masterkeying: Available Keyblank 5-pin: KBSC-5 Keyblank 6-pin: KBSC-6

OPTIONAL ACCESSORIES

Trim collar: TR78 trim ring

Spacer: 10-351 spacer (1/8" thick)

L78

Function: Latch lock

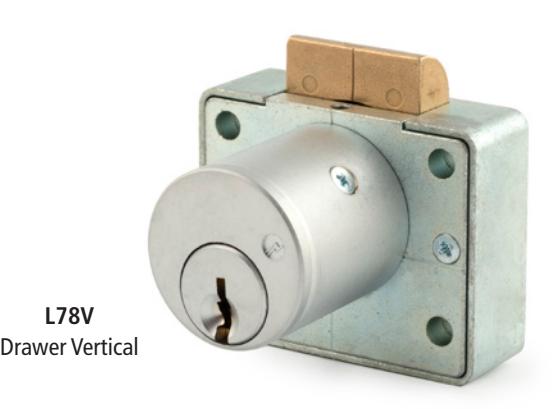

L78V

L78V Vertical-Hand

L78I Inverted-Hand

L78R Right-Hand

L78L Left-Hand

AVAILABLE FINISHES

US26D US3

INCLUDED ACCESSORIES

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

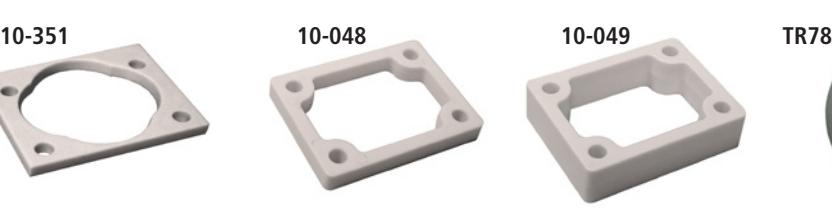

Internal Plastic Spacers

• 10-351 1/8" thick plastic spacers
• 10-348 1/4" thick plastic spacers
• 10-349 1/2" thick plastic spacers

Strikes

• Metal strikes: L78ST-2

Trim Ring

• TR78 trim ring

L78ST lip strike

DIMENSIONS

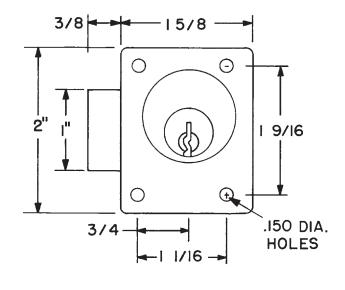

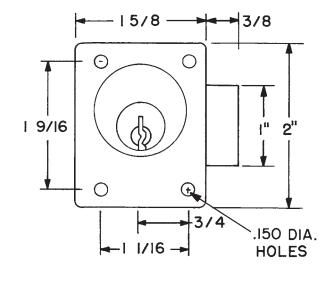

L78L - Left Hand (LH) L78R - Right Hand (RH)

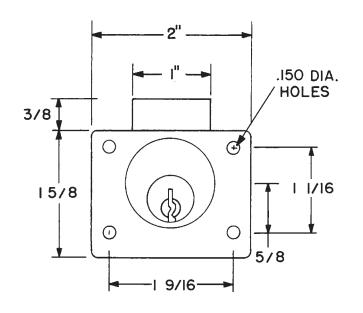

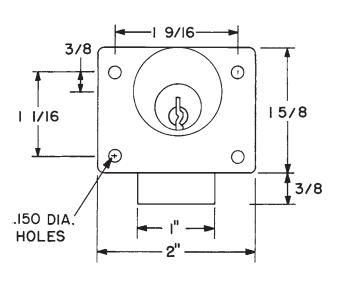

L78V - Vertical Hand (VH) L78I - Inverted Hand (RH)
