L72V

SFIC: Drawer Latch Lock

For BEST style interchangeable core cylinders

SPECIFICATIONS

Function: Spring latch Body: Zinc die cast Barrel diameter: 1-1/8" Cylinder length: 1-1/4" Latch projection: 3/8" Finish: 26D or US3

Packaged: Packed 10 per box

KEYING INFORMATION

Cores: Not included

Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores Compatible electronic cylinders: Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders

INCLUDED ACCESSORIES

10-350 spacers (qty 3) L78ST-1-SS matching lip strike 725-1 spacer to fit 6 or 7 pin cores 725-PA plastic thumbturn

OPTIONAL ACCESSORIES

Prong drivers: Shortened prong driver for use with Sargent XC or Marks high security cores with side pins. Specify L72V-PD-SP1 (for prong driver only).

Spacers: 10-350 (1/8" thick), 10-348 (1/4" thick),

10-349 (1/2" thick) Trim ring: TR78

Through-bolt hardware: ETS1 trim plate, ETS1-

PL trim pull and ETST1 template SFIC cores: 206/207 Series

L72V

Function: Drawer latch lock

For door applications, place lock on side.

Left-Hand Door Right-Hand Door

AVAILABLE FINISHES

US26D US3

INCLUDED ACCESSORIES

SFIC: Drawer Latch Lock

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

Internal Plastic Spacers

• 10-350 1/8" thick plastic spacers
• 10-348 1/4" thick plastic spacers
• 10-349 1/2" thick plastic spacers

Strikes

• Metal strikes: L78ST-2

Trim Ring

• TR78 trim ring

206/207 Series

• 206 Series 6-pin SFIC cylinder
• 207 Series 7-pin SFIC cylinder

interchangeable core cylinders

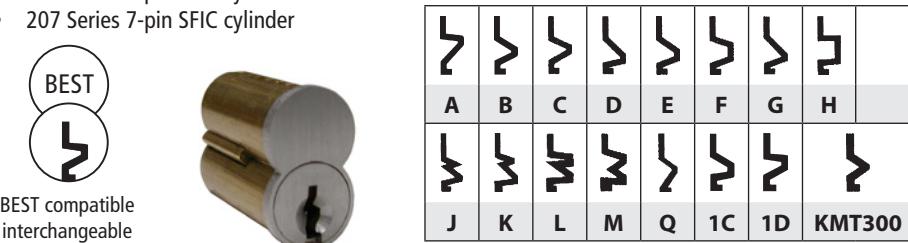

AVAILABLE KEYWAYS

Through-Bolt Mounting Plate

External metal 1/8" or 1/4" through-bolt plate allows for secure and attractive flush mounting of the cabinet lock face. Available in US3 or US26D finish.

• ETS1-125 through-bolt plate, 1/8" thick
• ETS1-250 through-bolt plate, 1/4" thick

Through-Bolt Mounting Plate Template

Allows for proper mounting hole placement of throughbolt plate. Can be used as a 1/8" shim spacer. Available in US3 and US26D finish.

• ETST2 through-bolt plate template

ETS1 Through-bolt plate

ETST1

template

U.S. Patent No. D490,686

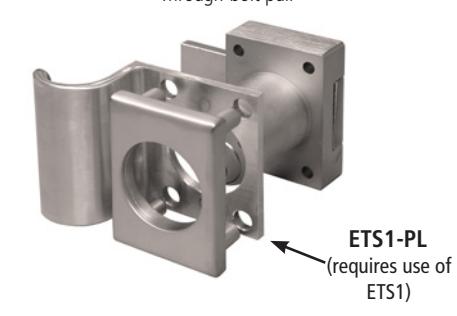

ETS1-PL

Through-bolt pull

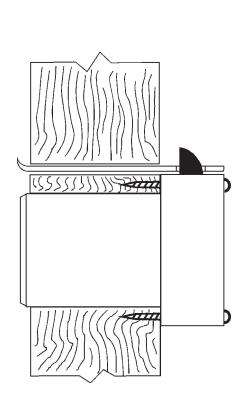

DIMENSIONS | TYPICAL INSTALLATION

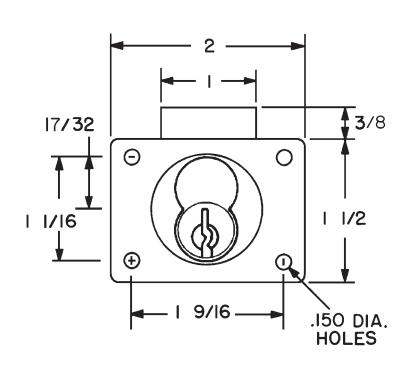

L72V - side view
