Olympus Lock – L72V Series Cabinet Drawer Lock Installation Instructions
Open the original PDF document
View PDFInstallation Instructions

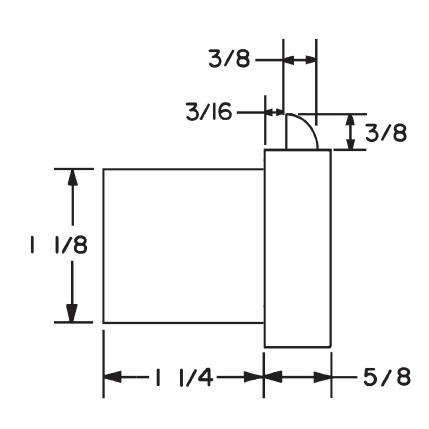

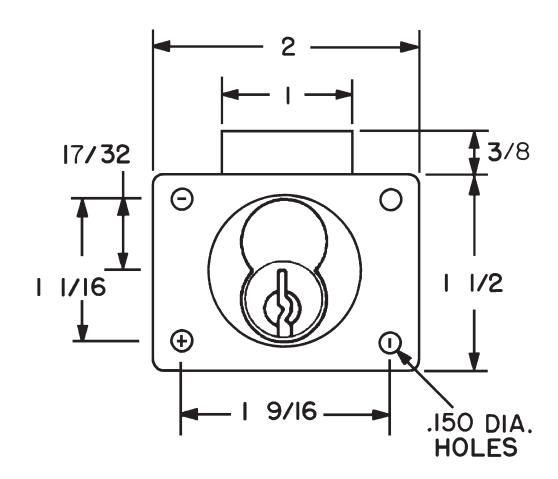

L72V

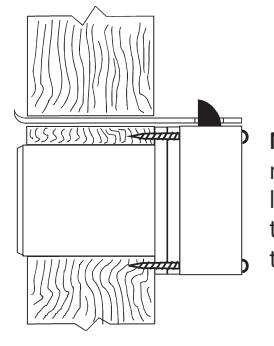

Note: Strike must be mounted so that spring latch mechanism projects through strike slot when the drawer is closed.
10-350 - 1/8" spacer
Note: Use of spacers and strike depends on application and material thickness.

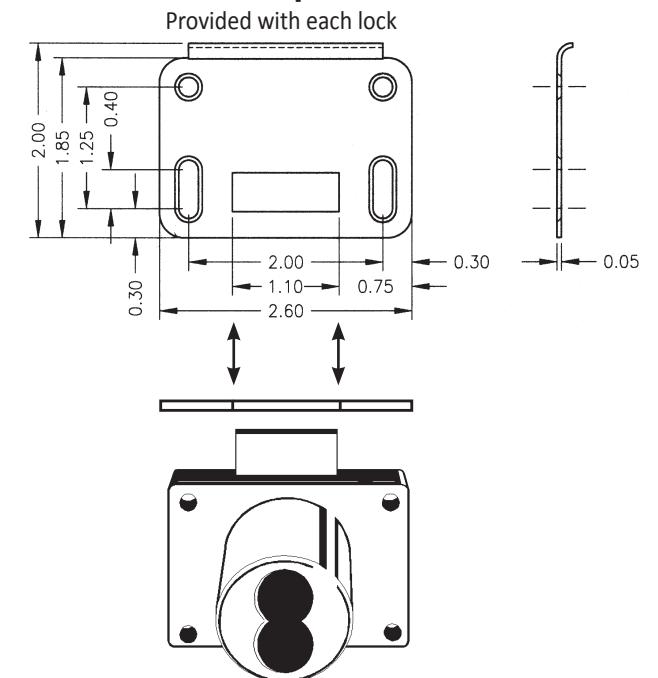

L78ST-1 lip strike
Note: For correct lock function, line up latch with slot in provided lip strike.
|
Title
Installation instructions for L72V series cabinet drawer lock |
||||
|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| L72V | 1-1/4" | Latch | Surface | 05/2013 |
