Olympus Lock – L20V Drawer Latch Lock Installation Instructions
Open the original PDF document
View PDFInstallation Instructions

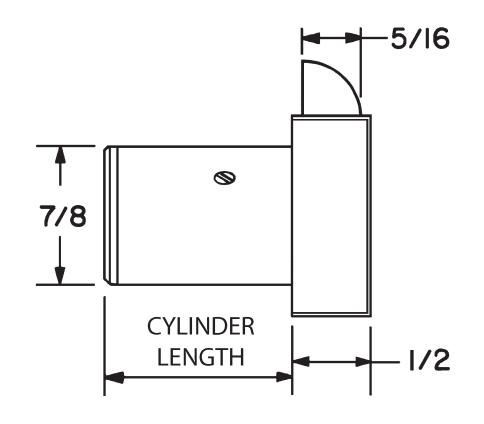

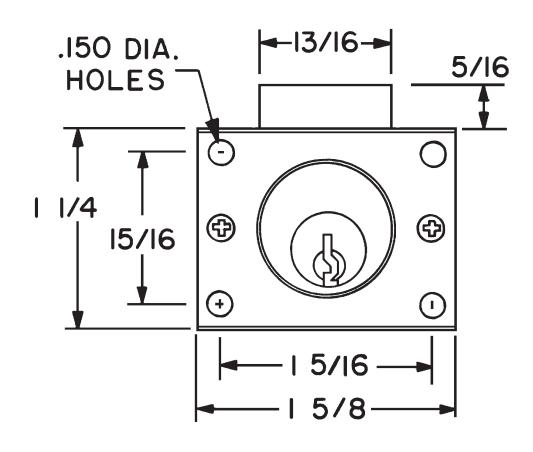

L20V Drawer Latch Lock

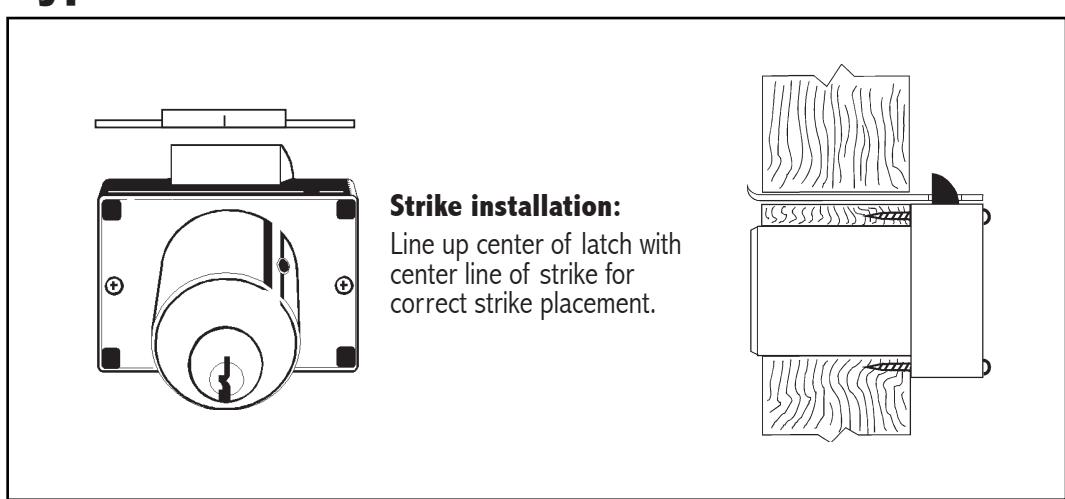

Typical Installation
| Title Installation instructions for L20V series cabinet drawer lock | ||||
|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| L20V | 7/8" or 1-3/8" | Latch | Surface | 07/2015 |
