Cabinet Locks for Schools

Cabinet lock solutions for classroom, library and lab casework.

Olympus Lock manufactures a full range of cabinet lock products for use in K-12 school environments including locks for classroom, library and lab casework.

School Casework

721DW

ANSI/BHMA Grade 1 deadbolt cabinet door and drawer locks. Optional keyretaining function and extended bolts available. KA, KD, MK or GMK. N Series National keyway.

100DR — Deadbolt cabinet door lock 200DW — Deadbolt cabinet drawer lock

ANSI/BHMA Grade 1 deadbolt cabinet door and drawer locks. Optional keyretaining function available. Accepts BEST compatible 6 or 7 pin small format interchangeable core cylinders.

721DR — Deadbolt cabinet door lock 721DW — Deadbolt cabinet drawer lock

ANSI/BHMA Grade 1 deadbolt cabinet door and drawer locks. Optional keyretaining function available. Schlage C Keyway or less cylinder.

700S — Deadbolt cabinet door lock 800S — Deadbolt cabinet drawer lock

ANSI/BHMA Grade 1 cam locks. Optional key-retaining function available. KA, KD, MK or GMK. Includes anti-rotation plate. N Series National keyway.

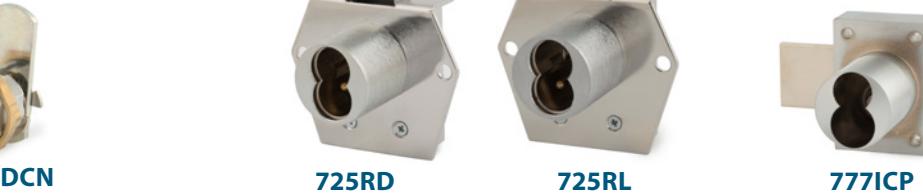

DCN1 — Cylinder length 1-1/16

DCN2 — Cylinder length 1-3/16 DCN3 — Cylinder length 1-7/16

DCN4 — Cylinder length 1-3/4

Available in door order drawer and latch or deadbolt function. Accepts BEST compatible 6 or 7 pin small format interchangeable core cylinders.

725RD — Deadbolt cabinet lock (available for doors or drawers)

725RL — Deadbolt cabinet lock (available for doors or drawers)

ANSI/BHMA Grade 1 deadbolt cabinet door and drawer locks. Optional keyretaining function available. Accepts Schlage full-size interchangeable core cylinders.

777ICP — Deadbolt cabinet door lock 888ICP — Deadbolt cabinet drawer lock

Cabinet Locks for Schools

ANSI/BHMA GRADE 1 PRODUCTS

TESTED TO ANSI/BHMA A156.11 STANDARDS

• ANSI/BHMA Grade 1 cabinet locks
• E07121 / E07041 ANSI/BHMA Grade 1 cabinet locks
• E07261 / E07271 ANSI/BHMA Grade 1 cam locks
• Pin tumbler locks designed specifically for high-use commercial applications
  • From 2,000 to up to 14,000 key changes under a single master key
    • Keyed alike, keyed different, master keyed, grand master keyed

DEADBOLT CABINET & DRAWER LOCKS

National Keyway E07121 cabinet door lock100DR E07041 cabinet drawer lock200DW
CCL Keyway E07121 cabinet door lock500DR E07041 cabinet drawer lock600DW
Schlage C Keyway E07121 cabinet door lock700S E07041 cabinet drawer lock800S
Less Cylinder (Schlage compatible) E07121 cabinet door lock700LC E07041 cabinet drawer lock800LC
SFIC small format interchangeable core (Best compatible) E07121 cabinet door lock721DR E07041 cabinet drawer lock721DW
Schlage full-size interchangeable core E07121 cabinet door lock777IC

RATCHET/SHOWCASE/SLIDING DOOR

E07041 cabinet drawer lock.................. 888IC

LOCKS
SFIC small format interchangeable core (Best compatible) E07191 sliding door lock729R
Schlage C Keyway E07191 sliding door lock829R E07191 sliding door lock829R-LC
Schlage full-size interchangeable core E07191 sliding door lock929R

CAM LOCKS

National Keyway E07261/E07271 cam lockDCN
CCL Keyway E07261/E07271 cam lockDCR
SFIC small format interchangeable core (Best compatible) E07261/E07271 cam lock720LM/DM
Schlage full-size interchangeable core E07261/E07271 cam lock920LM/DM

CABINET & DRAWER LATCH LOCKS

SFIC small format interchangeable core (Best compatible) Mortise mount
E07091 door latch lock725ML
E07061 drawer latch lock725ML
SFIC small format interchangeable core (Best compatible) Surface mount E07091 door latch lock725RL E07061 drawer latch lock725RL
