Product Data Sheet

ETS2-PL Series

Cabinet Pull for use with Olympus Small Pin 7/8" Diameter Cabinet Locks

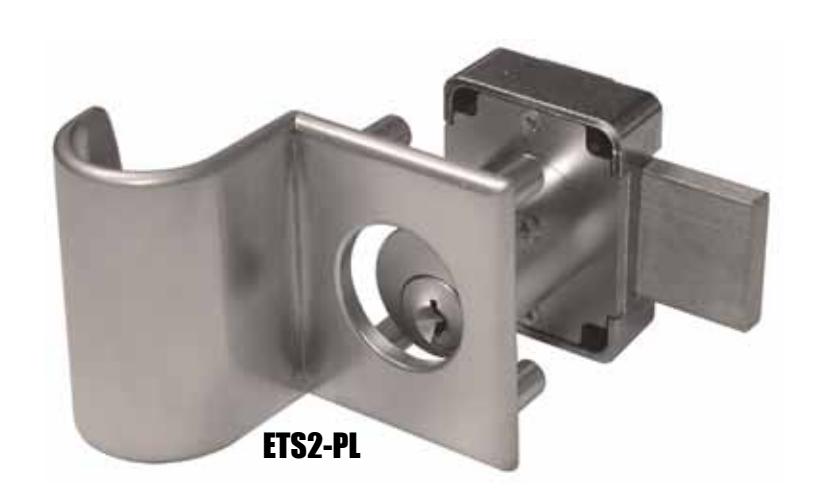

The ETS2-PL cabinet pull mounts on the face of the cabinet and provides through-bolt mounting of the cabinet lock and pull in a single unit. This product provides added security and flexibility to our line of door and drawer cabinet locks. These items can be used in combination or separately to acheive a variety of configurations.

For 7/8" diameter lock nos. 100, 200, 500, 600

ETS2-PL Series

Cabinet Pull for use with Olympus Small Pin 7/8" Diameter Cabinet Locks

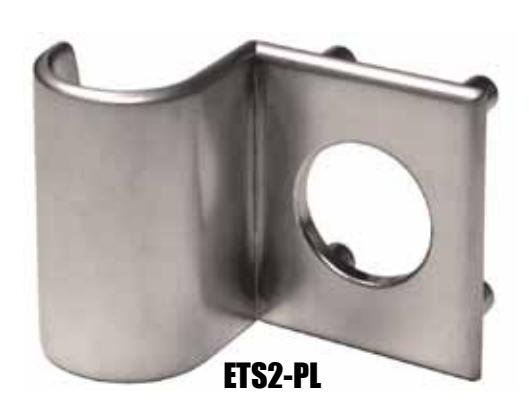

ETS1-PL - Cabinet Pull

• • TheETS2-PLcabinetpull is mountedon thefaceof the cabinet and provides through-bolt mounting of the cabinet lock and pull in a single unit
• • Does not requireuseofETS2through-bolt mounting plate
• • 1/8"thickness
• • Works forboth doorordrawerapplications

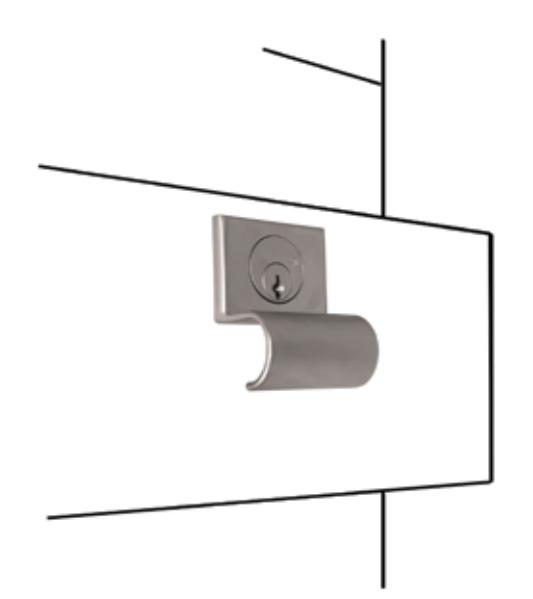

• • If mounted"pulldown"in drawerapplications, the pull will protect the face of the cabinet from the wear and tear of hanging keys
• • Works with existingETST2through-bolt templates
• • Availablein US3and US26D finishes
• • For7/8"diameter lock nos.:100,200,500,600

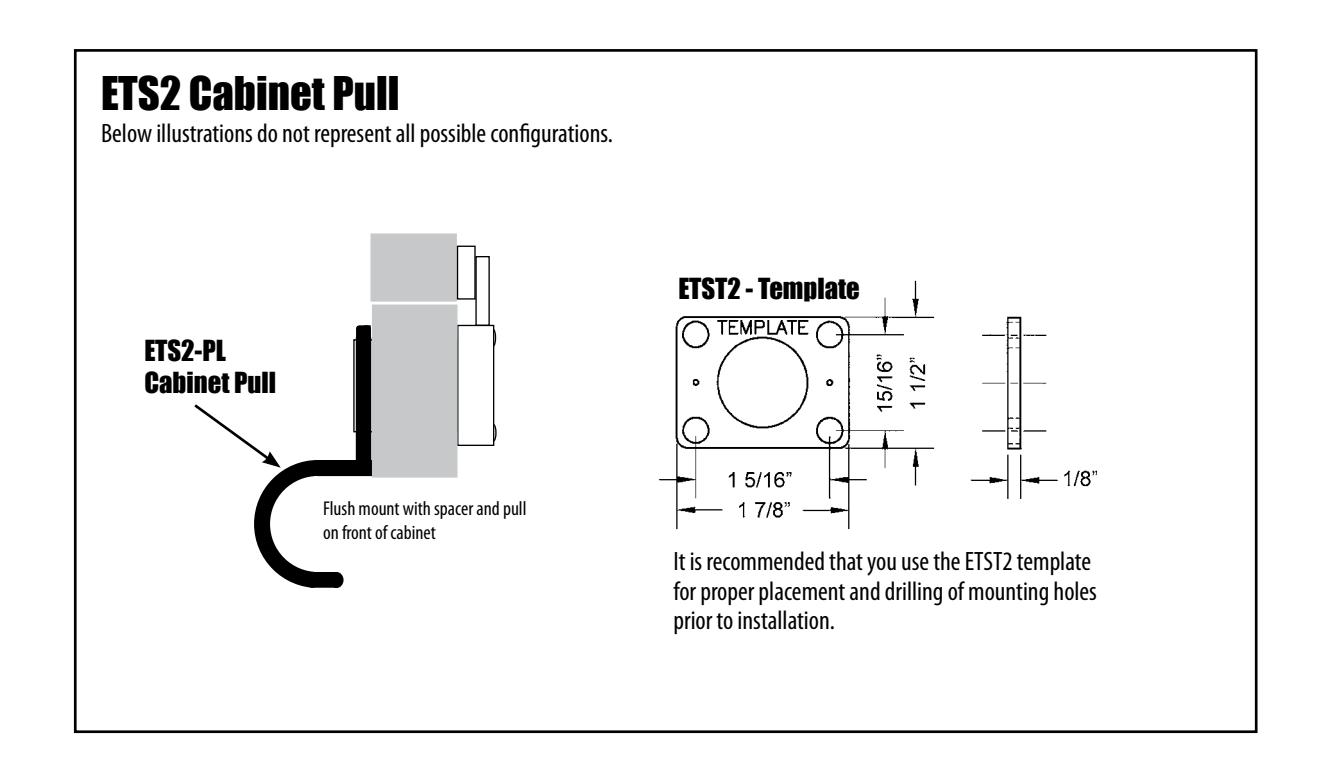

ETST2 - Through-Bolt Mounting Plate Template

• • Allows forproper mounting holeplacementofETS2- PL cabinet pull
• • Can beusedasa1/8"shim spacer
• • Availablein US3and US26D finishes

For use with:

For Olympus locks 100, 200, 500, 600

• • ETS2-PL-Cabinetpull
• • ETS2-125-1/8"thicktrim spacer
• • ETS2-250-1/4"thicktrim spacer
• • ETST2-Through-bolt mountingtemplate
