Product Data Sheet

ETS1-PL Series

Cabinet Pull for use with Olympus Large Pin 1-1/8" Diameter Cabinet Locks

Our new ETS1-PL cabinet pull works with our existing ETS Series reinforcing trim spacers and provides a built-in cabinet pull in addition to the through-bolt mounting acheived with the use of the ETS1 trim spacer. This product provides added security and flexibility to our line of door and drawer cabinet locks. These items can be used in combination or separately to acheive a variety of configurations.

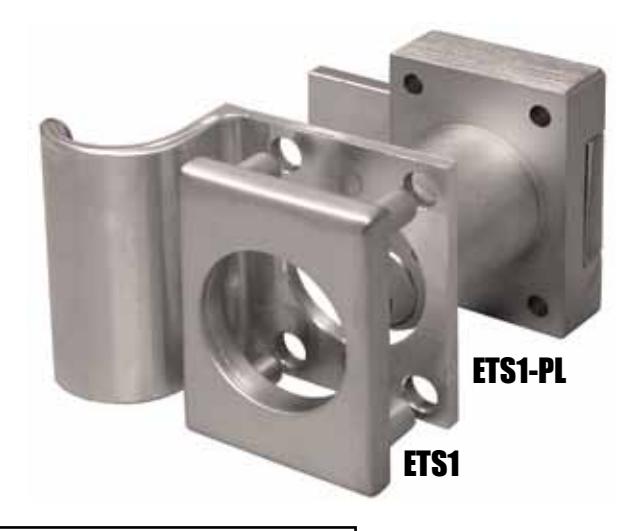

ETS1 / ETS1-PL

For 1-1/8" diameter lock nos. 700, 721, 754, 777, 800, 850, 854, 888, 931, 950

ETS1-PL Series

Cabinet Pull for use with Olympus Large Pin 1-1/8" Diameter Cabinet Locks

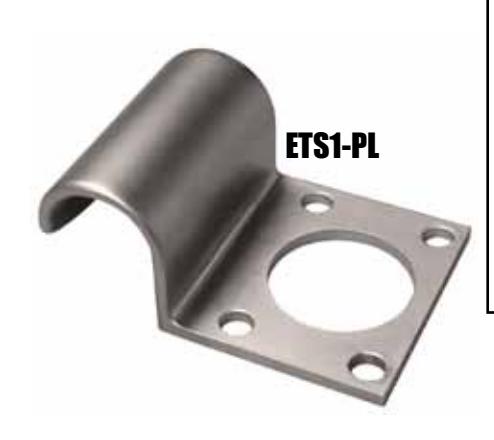

ETS1-PL - Cabinet Pull

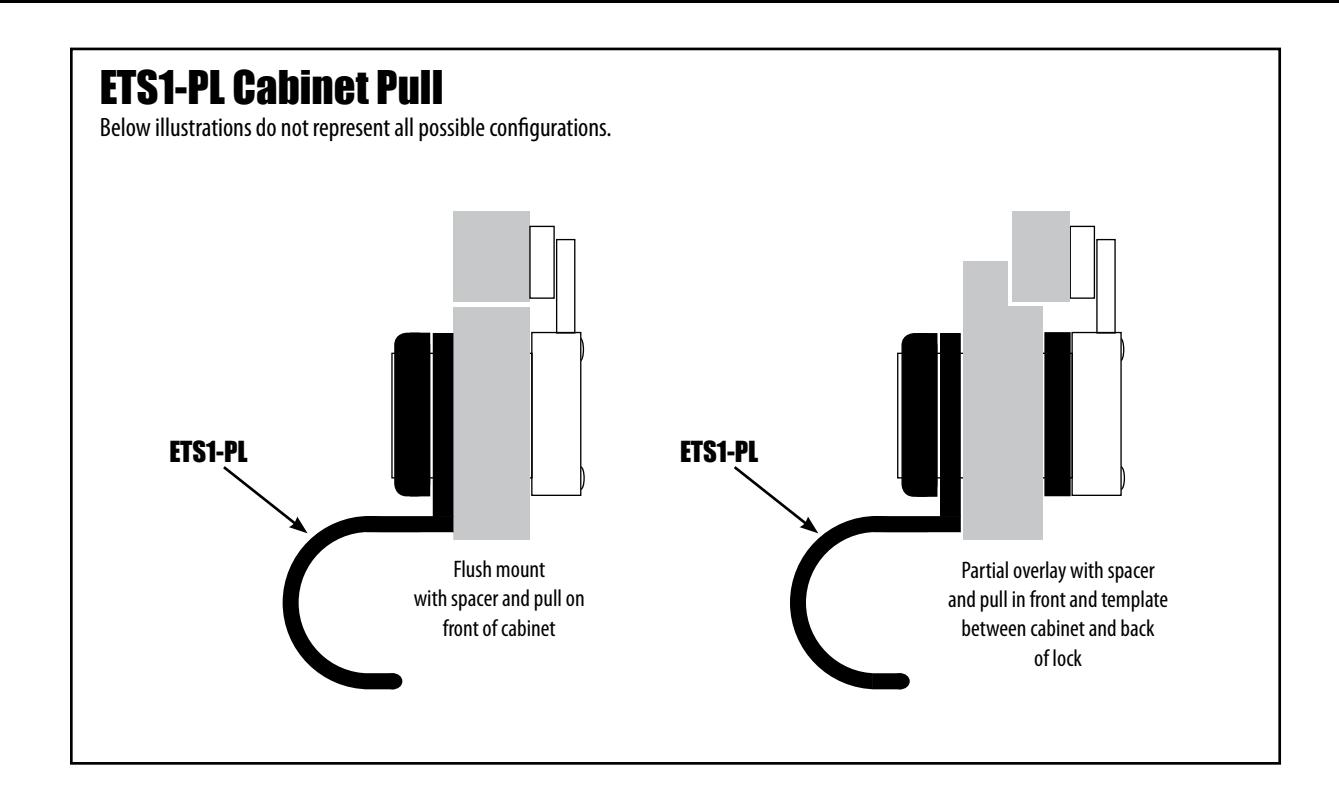

• • TheETS1-PL fitsbetween ourETS1through-bolt mounting plate and the face of the cabinet
• • When combined with ourETS, itprovides throughbolt mounting of cabinet lock and pull in a single unit
• • Works in both doorordrawerapplications
• • If mounted"pulldown"in drawerapplications, the pull will protect the face of the cabinet from the wear and tear of hanging keys
• • Works with existingETS hardwareandscrews
• • Availablein US3and US26D finishes

ETS1 - Through-Bolt Mounting Plate

• • Theexternal metal1/8"or1/4"through-bolt mounting plate allows for an attractive flush mounting of the cabinet lock face
• • Increases securityof installation through reinforcement of cabinet face and direct connection of lock mounting screws to through-bolt mounting plate's binder posts
• • Availablein US3and US26D finishes
• • Includes mountingscrews

ETST1 - Template for Through-Bolt Mounting Plate

• • Allows forproper mounting holeplacementof Reinforcing Trim Spacer
• • Can beusedasa1/8"shim spacer
• • Availablein US3and US26D finishes

For use with:

Olympus locks 700, 721, 754, 777, 800, 850, 854, 888, 931, 950

• • ETS1-PL-Cabinetpull
• • ETS1-125-1/8"thickthrough-bolt mountingplate
• • ETS1-250-1/4"thickthrough-bolt mountingplate
• • ETST1-Spacer template

U.S.Patent No. D490,686S
