DCR SERIES

R Series: 3/4" Cam Lock

ANSI/BHMA Grade 1 E07261 | E07271

Woodwork Institute (WI) acknowledged product

SPECIFICATIONS

Keying: Can be keyed together with other R Series locks

Cylinder length: DCR1 =1", DCR2=1-1/8", DCR3=1-3/8" and DCR4=1-3/4"

Rekeyable: Easily rekeyable via cylinder retainer clip

ANSI/BHMA: Passed ANSI/BHMA A156.11

Grade 1 performance requirements. Equivalent to E07261 / E07271.

US Patent Nos: 5,038,589; 5,737,950

Body: Zinc die cast

Cylinder: Zinc die cast, pin tumbler

Standard function: Key removable in locked or

unlocked position.

Key retaining function: Alternate key-retaining shifters are available separately for key removable in locked position only.

Cams: 2 reversible cams work in all positions Face: 1" face covers splintering, no additional trim

ring required Finish: 26D or US3

Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: R Series (equivalent to CCL R1 system)

Keys: Includes 2 keys per lock Stock keying: KD/KA - 5 pin standard Stock KA#: 4T21579, 4T37526 Masterkeyed: 5 pin standard Grand masterkeyed: Available Keyblank 5-pin: KBR-5-NP (equivalent to CO106, 1003A)

INCLUDED ACCESSORIES

See below.

OPTIONAL ACCESSORIES

Alternate cams

Key retaining drawer cam shifter #DCNP-200-KR Key retaining door cam shifter #DCNP-200-KDR

DCR

Keyway: R Series, CCL R1 Keyway Handing: Includes 2 cams that work in all handings (door or drawer)

DCR SERIES FEATURES

• Non-handed—Field reversible locking positions: right-hand, lefthand, vertical and inverted
• Only 2 cams required—Ships with reversible straight and offset cams that meet requirements of all locking positions
• Easy rekeyability—Allows for a quick installation and increased productivity

• Anti-rotation plate—Eliminates lock rotation, prevents loosening of fixing nut, and provides additional security in particleboard applications

AVAILABLE FINISHES

INCLUDED CAMS

DCNP-100-SC straight cam

DCNP-100-BC offset reversible cam

WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

DCR SERIES

R Series: 3/4" Cam Lock

ANSI/BHMA Grade 1 E07261 | E07271

Woodwork Institute (WI) acknowledged product

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

Other Accessories

Key-retaining cam shifters

• For door function: DCNP-200-KDR
• For Drawer function: DCNP-200-KR

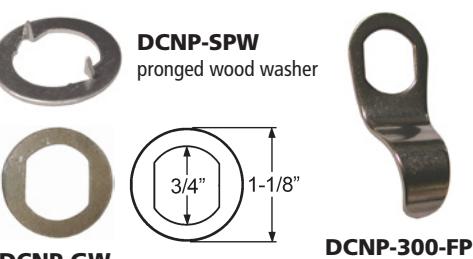

Washers

• Pronged wood washer: DCNP-SPW
• Self-adhesive clear plastic washer for mounting lock on glass: DCNP-GW

Finger Pull

• Finger pull: DCNP-300-FP

Number Plates

• T37DC-NP number plate

DCNP-GW

self-adhesive clear plastic washer for mounting lock on glass

TRB7 Series Trim Collars

Optional Cams

Note: Offset cams are reversible and can be used in either the inbent or outbent position.

Item	Description / Packed Each
DCNP-HD-875	7/8" long straight cam
DCNP-HD-1	1" long straight cam
DCNP-100-SC	1-1/4" long straight cam
DCNP-100-SC2	1-3/4" long straight cam
DCNP-100-SC3	1-1/2" long straight cam
DCNP-100-LC	3" long straight cam

		DCNP-100-LBC	1-1/2 long cam, 5/16" offset
Item	Description / Packed Each
DCNP-100-B1 DCNP-100-B2 DCNP-100-B3 DCNP-100-WB	Straight cam with oval cutout U-shaped cam Straight hook cam Short cam / 90° offset arm

Item	Description / Packed Each
DCNP-100-BC	1-1/4" long cam, 5/16" offset
DCNP-100-BC5 DCNP-100-HC1	1-1/4" long cam, 1/2" offset 1-1/2" long hook cam, 5/16" offset
DCNP-100-HD	1-7/16" long cam, 1/2" offset
DCNP-100-HD2	1-3/4" long cam, 5/16" offset
DCNP-100-HD3	1-1/8" long cam, 5/16" offset
DCNP-100-LBC

>> Visit our website www.olympuslock.com for complete dimension and descriptions of available optional cams.

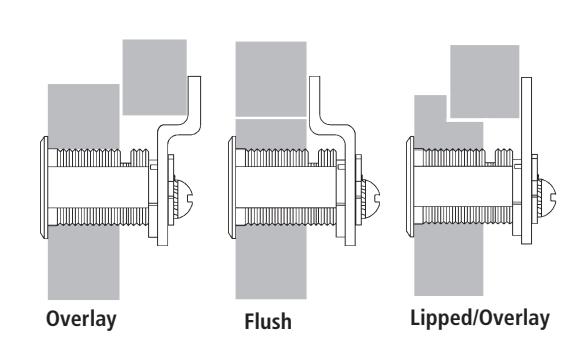

DIMENSIONS | TYPICAL INSTALLATION

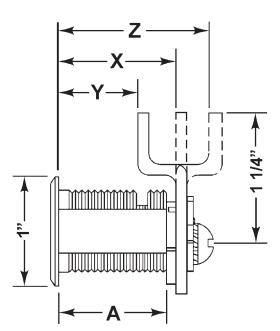

DIMENSIONS

	For Mat. Thickness	Straight Cam (X)	Inbent Cam (Y)	Outbent Cam (Z)	Cylinder Length (A)
DCR1	3/4"	1-1/16"	3/4"	1-3/8"	1"
DCR2	7/8"	1-3/16"	7/8"	1-1/2"	1-1/8"
DCR3	1-1/8"	1-7/16"	1-1/8"	1-3/4"	1-3/8"
DCR4	1-1/2"	1-13/16"	1-1/2"	2-1/8"	1-3/4"

MOUNTING CUTOUT
