DCP SERIES

3/4" Padlockable Cam Lock

SPECIFICATIONS

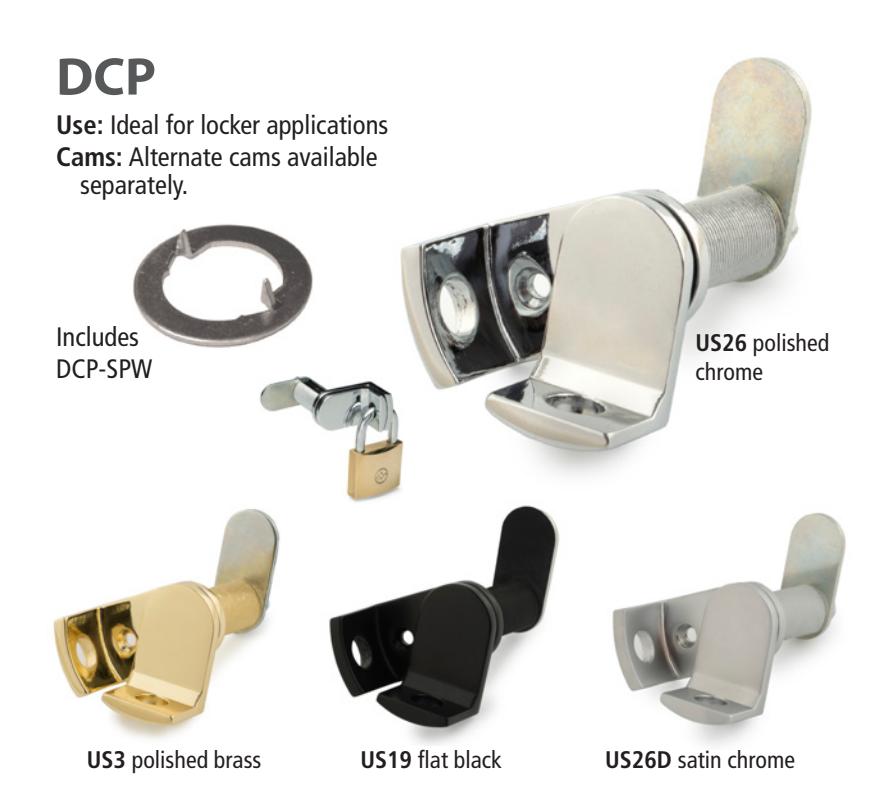

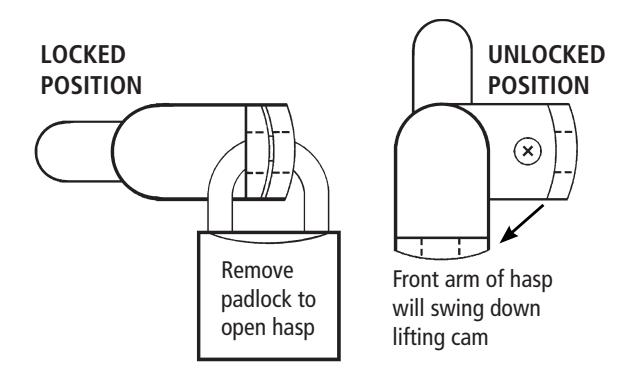

Function: Cam lock for use with padlock as locking device. Functions on doors or drawers.

Ideal for locker applications.

Through-hole: 0.4" Padlocks: Not included

Max. material thickness: 1-1/8"

Barrel diameter: 3/4" Finish: 26D, US26, US3, US19 Packaged: Packed 15 per box

INCLUDED ACCESSORIES

DCP-LC straight 1-1/4" cam DCNP-SPW pronged wood washer

OPTIONAL ACCESSORIES

Anti-rotation plate: DCP-500-ARP Padlock bumper plate: DCP-SP1 (RH) or DCP-SP2 (LH). Available in US32 polished stainless steel or US26D satin chrome. Optional cams: See chart below

PADLOCKS

DCP works with most other manufacturer's padlocks with shackle diameter of 3/8" (10 mm) or less.

See Olympus Lock's BP Series (Mountain brand) brass padlocks and PN50 N Series National keyway padlocks.

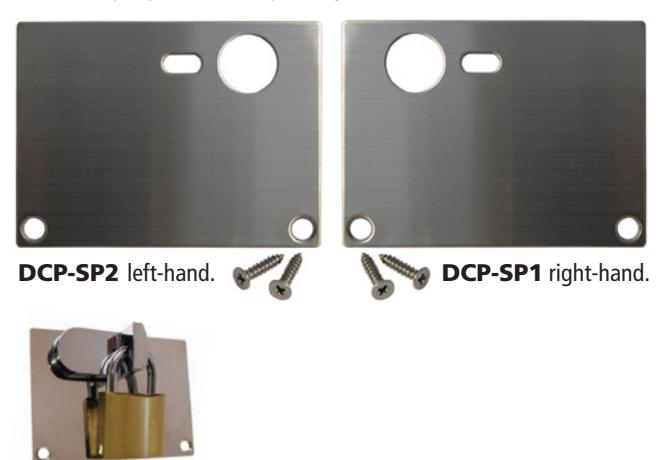

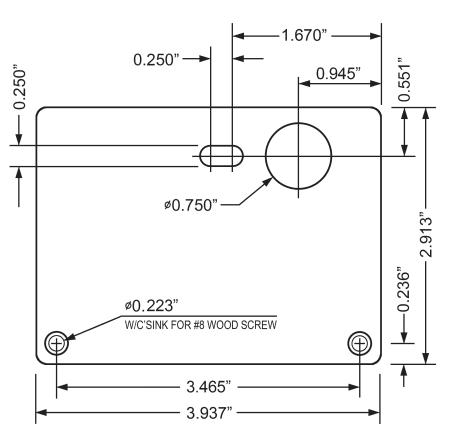

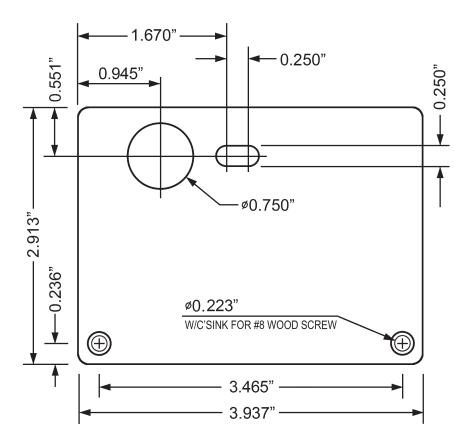

DCP-SP1 (RH) / DCP-SP2 (LH) BUMPER PLATES

Available in US32 (polished stainless steel) or US26D (satin chrome). For use on right-hand (DCP-SP1) or left-hand (DCP-SP2) cabinet doors. Bumper plates sold separately.

DCP SERIES

3/4" Padlockable Cam Lock

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

Optional Cams

Note: Offset cams are reversible and can be used in either the inbent or outbent position.

Part No.	Dim. A
DCP-SC	7/8"
DCP-LC (std)*	1-1/4"
DCP-LC-112	1-1/2"
DCP-LC-134	1-3/4"
DCP-LC-225	2-1/4"
DCP-LC-250	2-1/2"

DCP-LC (std) is included in standard package. All other cams are available separately.

OFFSET CAMS

STRAIGHT CAMS			Part No.	Dim. A	Dim. B
Part No.	Dim. A		DCP-1-14	1"	1/4"
DCP-SC	7/8"		DCP-LBC	1-1/4"	1/4"
DCP-LC (std)*	1-1/4"		DCP-114-18	1-1/4"	1/8"
DCP-LC-112	1-1/2"		DCP-118-18	1-1/8"	1/8"
DCP-LC-134	1-3/4"		DCP-114-38	1-1/4"	3/8"
DCP-LC-225	2-1/4"		DCP-LBC-138	1-3/8"	3/8"
DCP-LC-250	2-1/2"		DCP-LBC-178	1-7/8"	1/2"
			DCP-112-14	1-1/2"	1/4"

Other Accessories

• DCNP-500-ARP provides a more secure mounting in particle board
• DCP-SP1 & DCP-SP2 protects face of cabinet from padlock and keys. Available in US32 (polished stainless) or US26D (satin chrome)

DCP-SP2 - for left-hand cabinet doors

DCNP-500-ARP DCP-SP1 - for right-hand cabinet doors

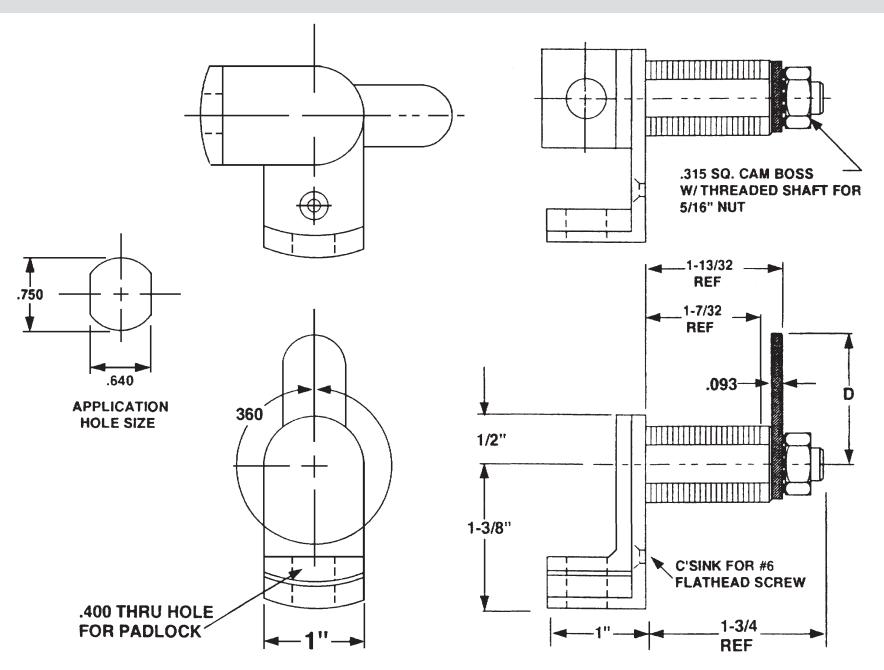

DIMENSIONS PADLOCKS

PADLOCK SPECIFICATIONS

The DCP works with most industry standard padlocks with a shackle diameter of 3/8" (10 mm) or less.

OLYMPUS PADLOCKS

Mountain Brand: Blister packed brass padlocks PN50 Series: N Series National keyway brass padlocks IC Core: Brass padlocks for Corbin/Russwin interchangeable cores (sold less core)

The DCP accepts padlocks with a shackle diameter of 3/8" (10 mm) or less

For more information on our complete line of padlocks visit www.olympus-lock.com
