DCP-SP1 / DCP-SP2

Padlock Bumper Plate for use with DCP and DCP500

SPECIFICATIONS

Function: Protects face of cabinet from padlock

and keys

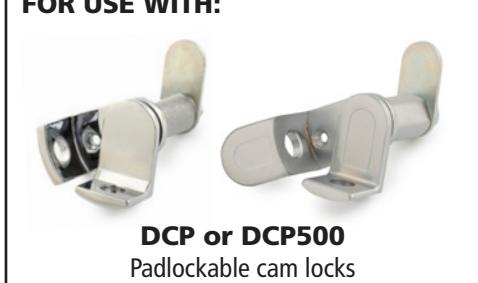

Works with: Olympus DCP and DCP500

padlockable cam locks

Handing: Available for right-hand or left-hand cabinet doors (LH version coming June 2018)

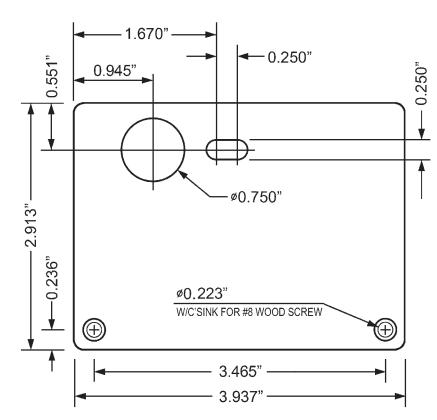

Size: 3.937" wide x 2.913" high

Thickness: .0456"

Finish: Polished stainless steel (US32) or satin

chrome (US26D)

INCLUDES

Adhesive sheet to protect finish and two screws for mounting

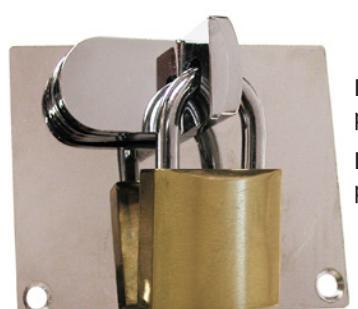

DCP-SP1 right-hand plate (shown)

DCP-SP2 left-hand plates

DCP-SP1 (RH) / DCP-SP2 (LH) BUMPER PLATES

Available in US32 (polished stainless steel) or US26D (satin chrome). For use on righthand (DCP-SP1) or left-hand (DCP-SP2) cabinet doors. Bumper plates and padlockable cam locks sold separately.

AVAILABLE FINISHES

US26D US26

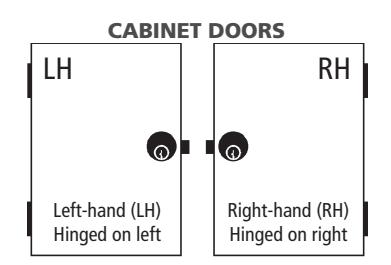

LEFT-HAND RIGHT-HAND

DCP-SP2 (LH) DCP-SP1 (RH)

WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
