Olympus Lock – DCN DCR B7 Series (key-Retaining) Installation Instructions
Open the original PDF document
View PDFInstallation Instructions

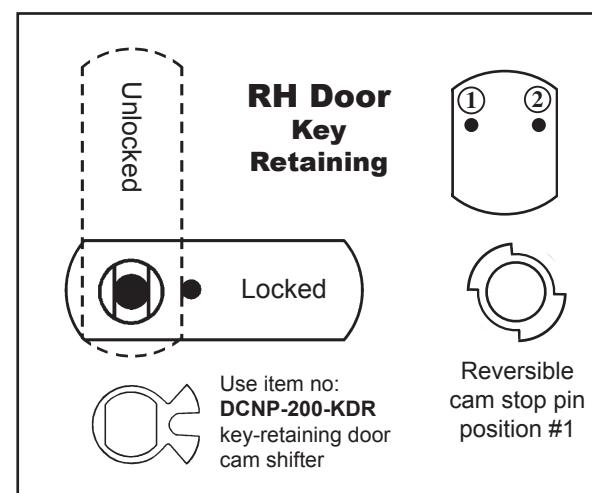

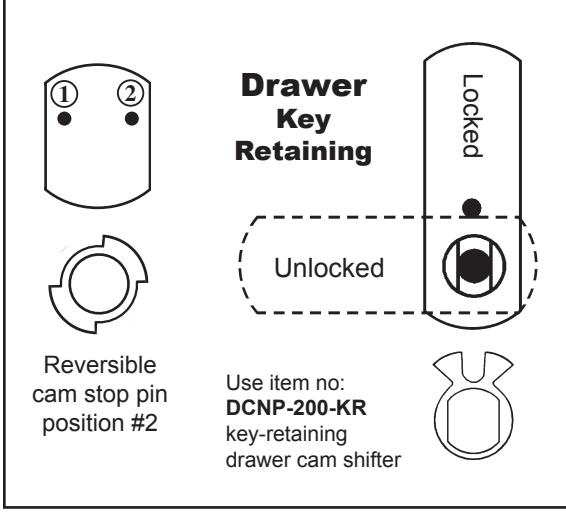

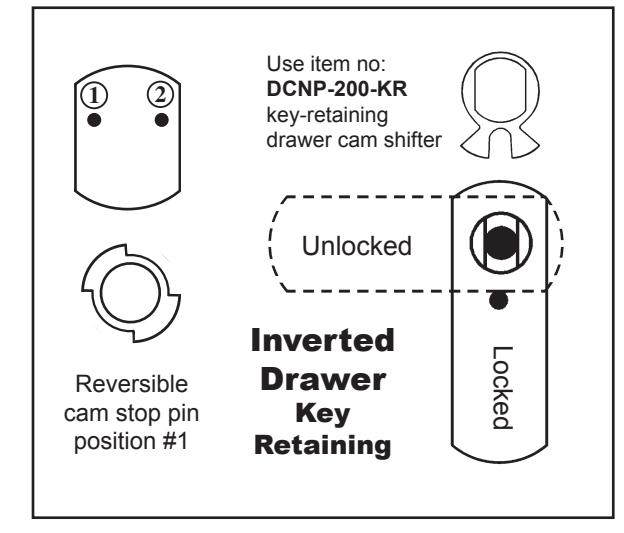

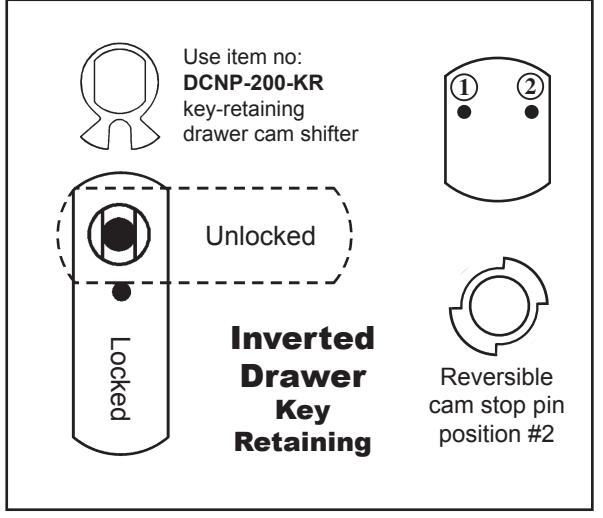

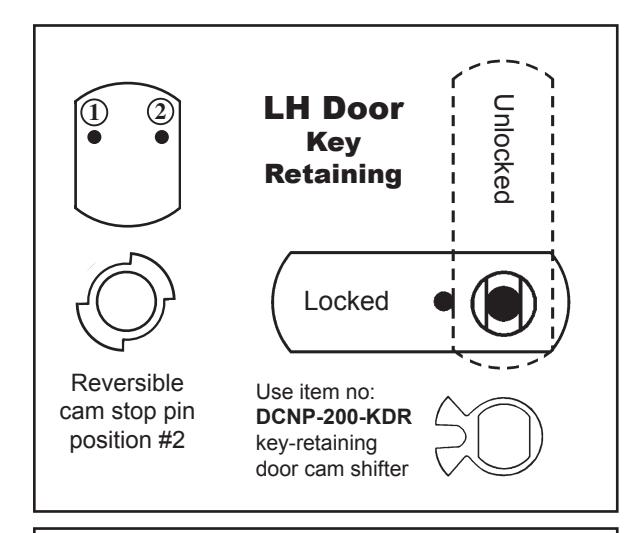

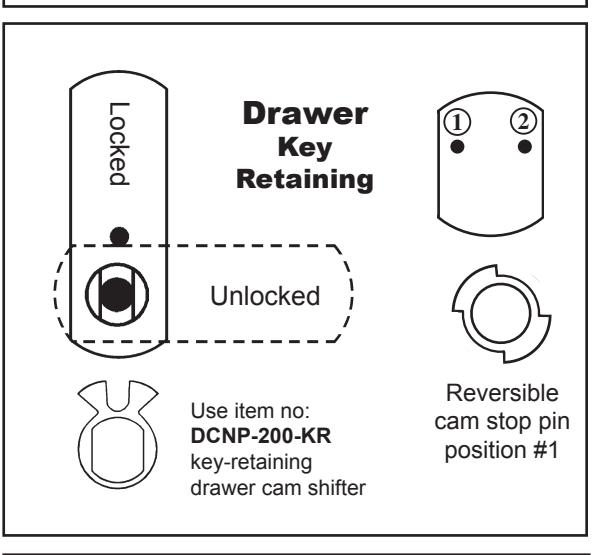

DCN/DCR/B7 Series (key-retaining assembly)
*** For proper function, install cam in the locked position ***
Key-retaining assembly requires purchase of additional key-retaining cam shifters (For doors use item no: DCNP-200-KDR ) / (For drawers use item no: DCNP-200-KR )
Key removable in locked position only.
Key removable in locked position only.
Key removable in locked position only.
