Optional Cams

For DCN, DCR and B7 3/4" Diameter Cam Locks

Key-retaining cam shifters DCNP-200-KR drawer function DCNP-200-KDR door function

GENERAL SPECIFICATIONS

Use with: DCN, DCR and B7 series 3/4" cam locks

Reversible: All bent cams are reversible and can be used in either the inbent or outbent position.

Patented technology: All cams work with our patented cam shifting system that allows all cams to lock in all four positions: up, down, right or left.

Optional shifters: Key-retaining shifters (key removable in locked position only) are available separately. See graphic in upper right-corner for detailed information.

Standard Cams

The DCN, DCR and B7 series cam locks ship standard with the following straight and offset cams:

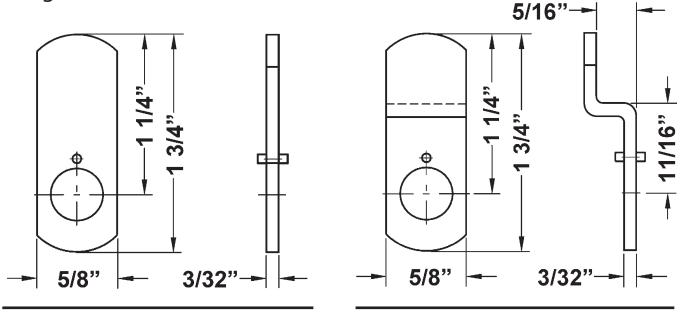

DCNP-100-SC DCNP-100-BC

Standard Cams
Item #	Description / Packed Each
DCNP-100-SC DCNP-100-BC	1-1/4" long straight cam 1-1/4" long cam, 5/16" offset

SEE BACK OF PAGE FOR ADDITIONAL CAMS

Straight Cams
Item #	Description / Packed Each
DCNP-HD-1	1" long straight cam
DCNP-HD-875	7/8" long straight cam

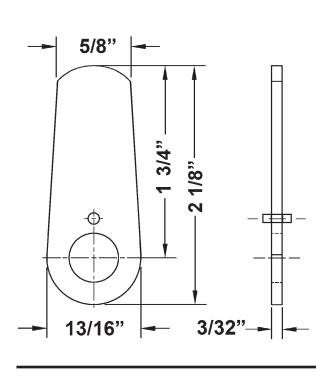

DCNP-100-SC2	1-3/4" long straight cam
DCNP-100-SC3	1-1/2" long straight cam
DCNP-100-LC	3" long straight cam

DCNP-HD-875 7/8" heavy duty straight cam

DCNP-HD-1 10" heavy duty straight cam

DCNP-100-LC 3" long straight cam

DCNP-100-SC2 1-3/4" heavy duty straight cam

DCNP-100-SC3 1-1/2" heavy duty straight cam

Optional Cams

For DCN, DCR and B7 3/4" Cam Locks

OPTIONAL OFFSET CAMS

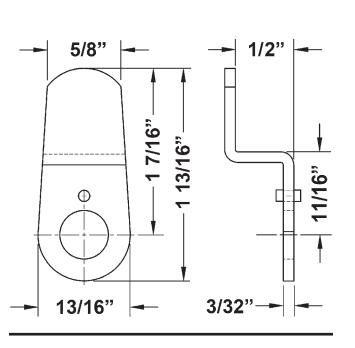

Offset Cams Offset cams are reversible and can be used in either the inbent or outbent position. Item # Description / Packed Each DCNP-100-BC5 DCNP-100-HC1 DCNP-100-HD DCNP-100-HD2 1-1/4" long cam, 1/2" offset 1-1/2" long hook cam, 5/16" offset 1-7/16" long cam, 1/2" offset 1-3/4" long cam, 5/16" offset

1-1/8" long cam, 5/16" offset 1-1/2 long cam, 5/16" offset

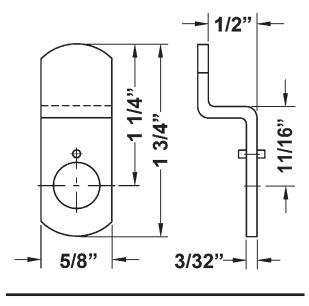

DCNP-100-BC5 1/2" offset cam

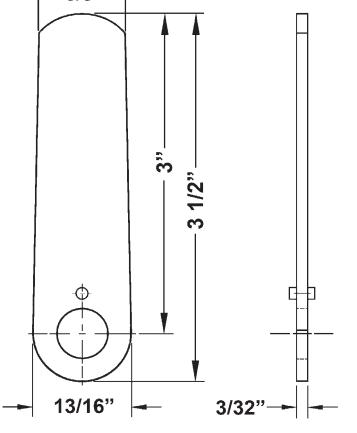

DCNP-100-LBC 3" long offset cam

DCNP-100-HD3 DCNP-100-LBC

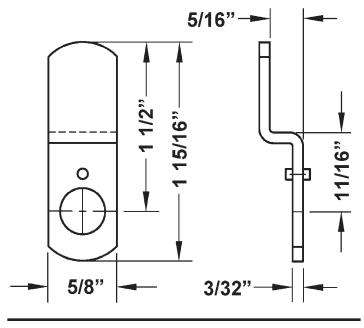

DCNP-100-HD 1-7/16" heavy duty offset cam

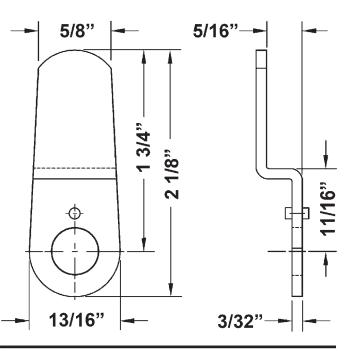

DCNP-100-HD2 1-3/4" heavy duty offset cam

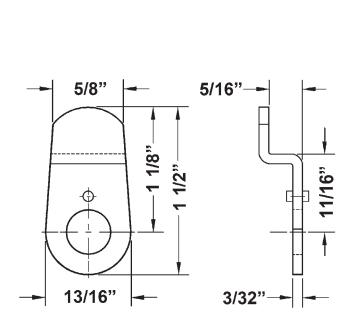

DCNP-100-HD3 1-1/8" heavy duty offset cam

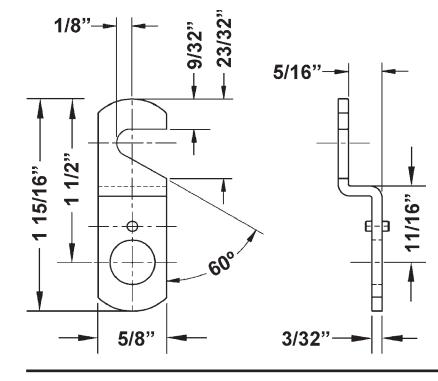

DCNP-100-HC1 offset hook cam

OPTIONAL SPECIALTY CAMS

Specialty Cams
Item #	Description / Packed Each
DCNP-100-HC1 DCNP-100-B1	1-1/2" long hook cam, 5/16" offset 1-3/32" long straight cam w/cutout

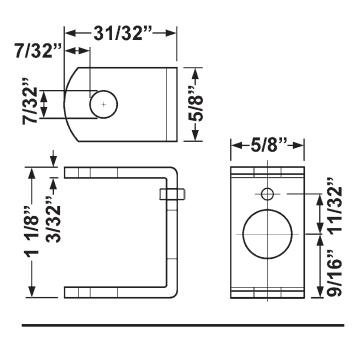

DCNP-100-B2	U-shaped cam

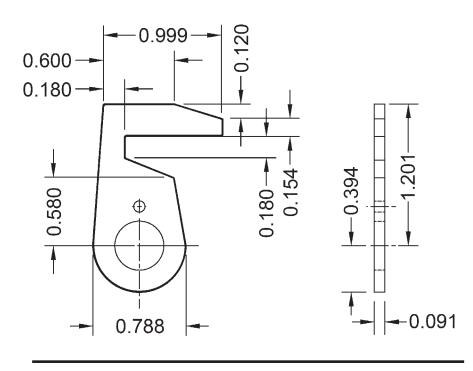

DCNP-100-B3	1.2" long straight hook cam
DCNP-100-WB	Short cam with perpendicular arm

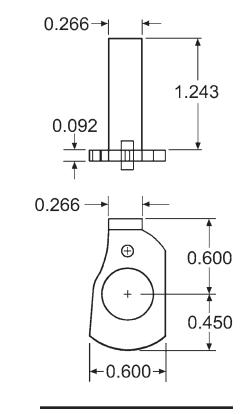

straight cam w/cutout

DCNP-100-B1 perpendicular arm DCNP-100-B2 U-shaped cam

DCNP-100-B3 straight hook cam

DCNP-100-WB short cam with
