Olympus Lock – DCN DCR B7 Cam Assembly Standard Function Instructions
Open the original PDF document
View PDFDCN, DCR, B7 Series Cam Locks - Standard Function

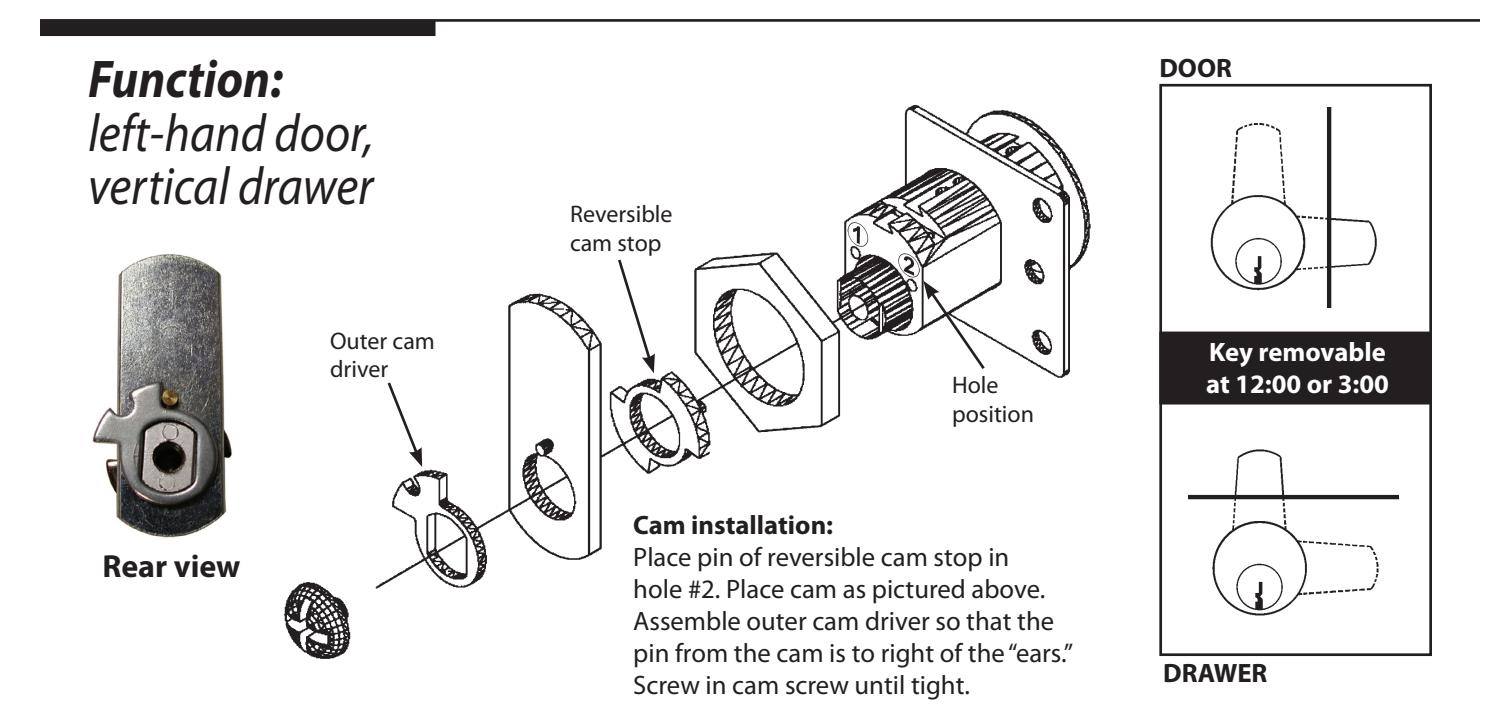

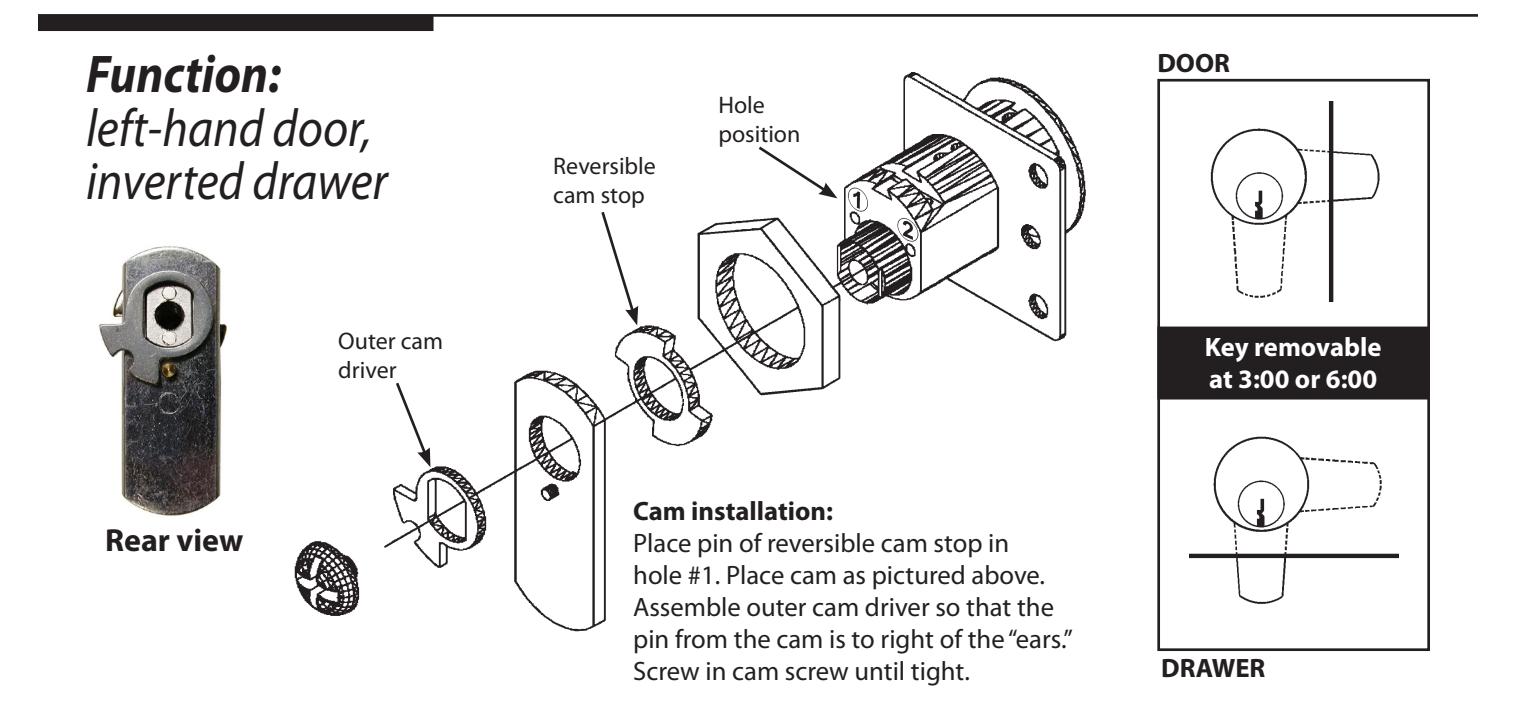

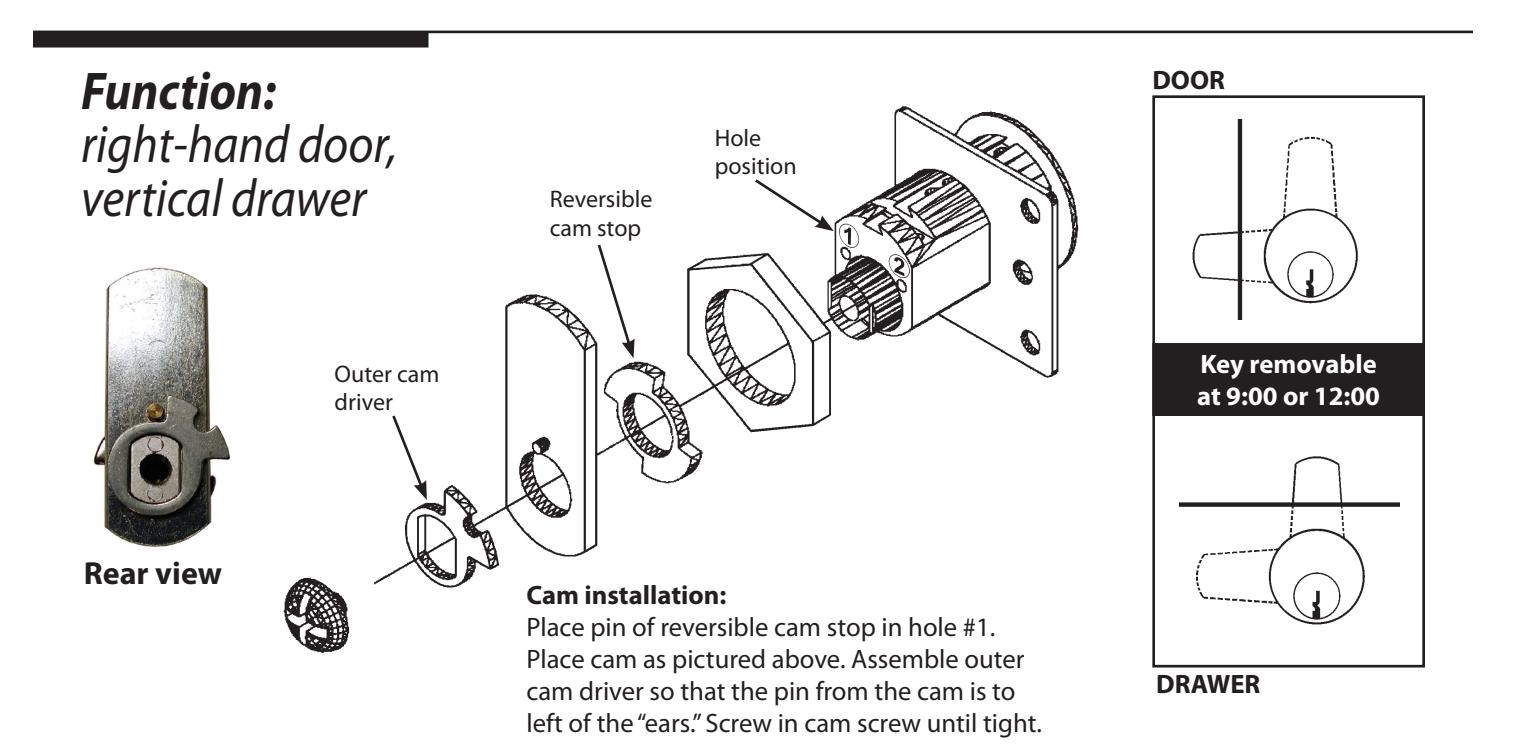

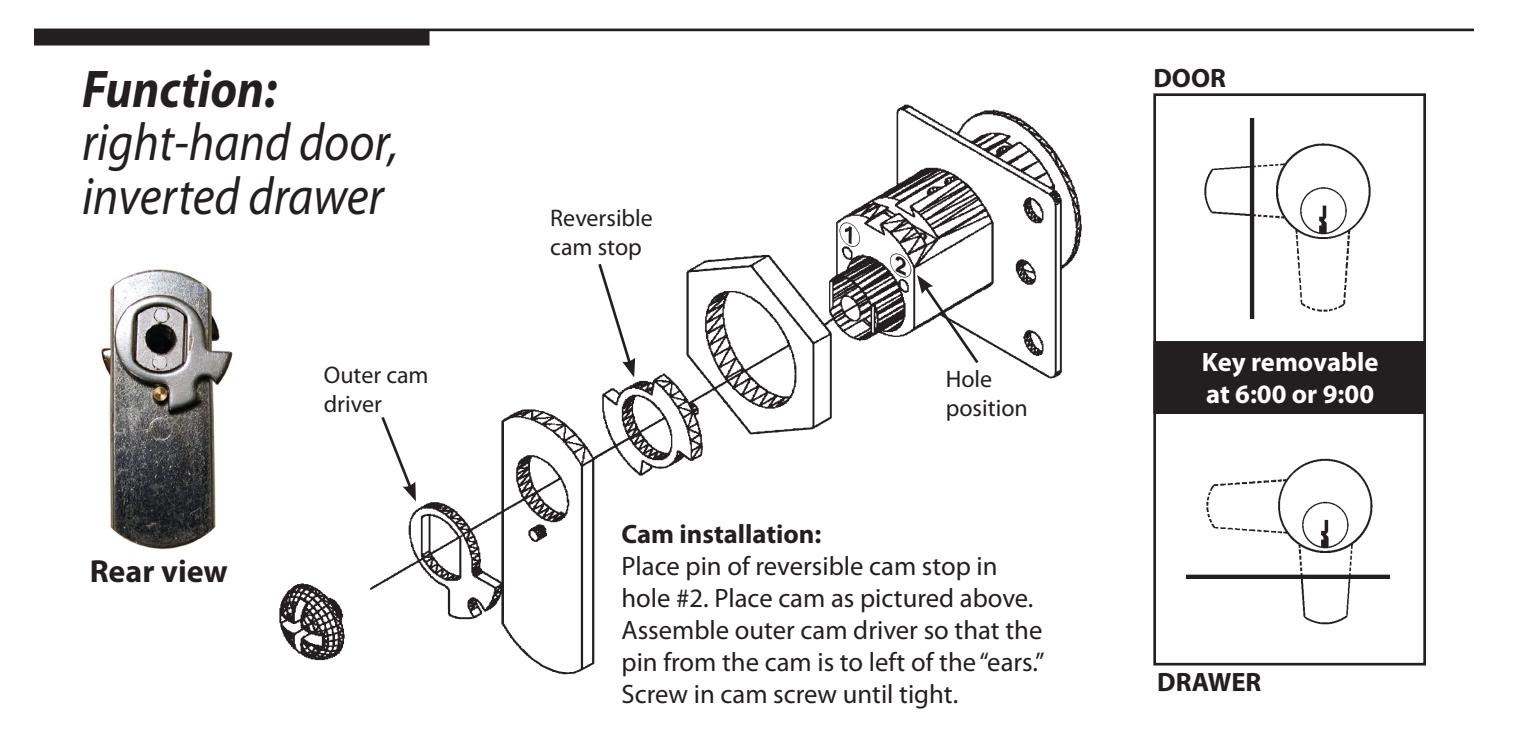

CAM ASSEMBLY for key removable in locked or unlocked position (standard function) . All below configurations can be used with straight cam or offset cam (in either the inbent or outbent positions).
DCN, DCR, B7 Series Cam Locks - Standard Function
CAM ASSEMBLY for key removable in locked or unlocked position (standard function) . All below configurations can be used with straight cam or offset cam (in either the inbent or outbent positions).
