DCN, DCR, B7 Series Cam Locks - Key-Retaining

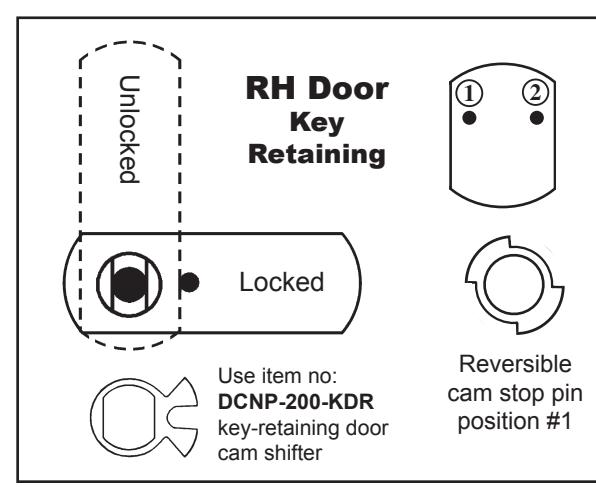

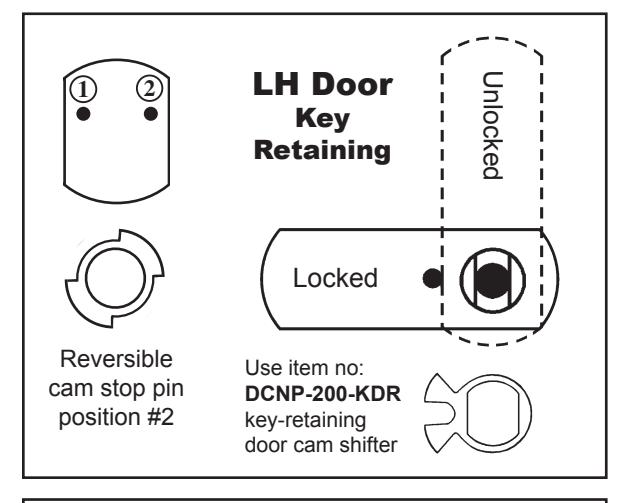

CAM ASSEMBLY for key-retaining function (key removable in locked position only). All below configurations can be used with straight cam or offset cam (in either the inbent or outbent positions).

*** For proper function, install cam in the locked position ***

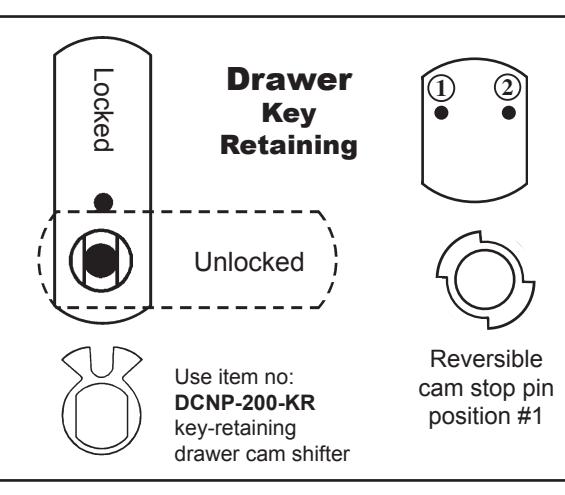

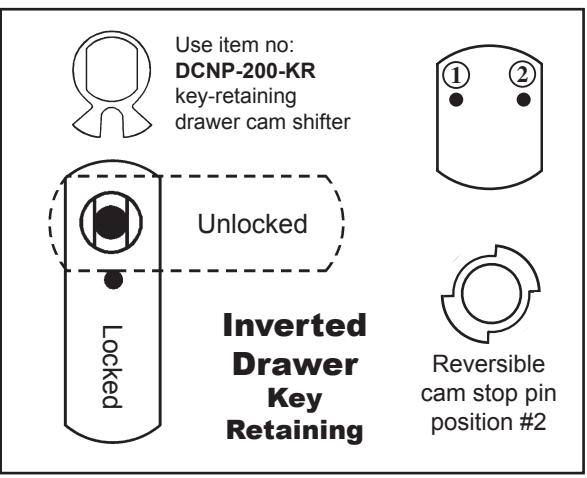

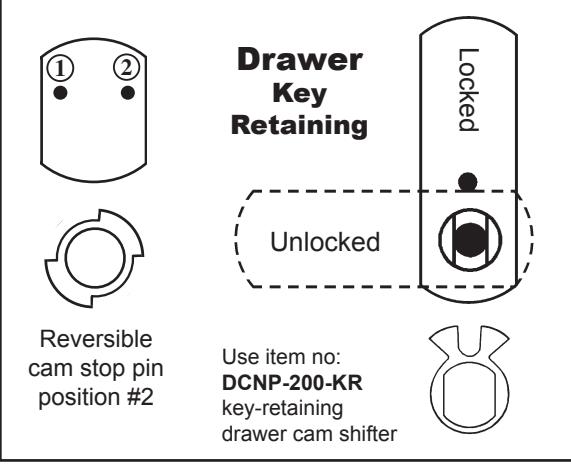

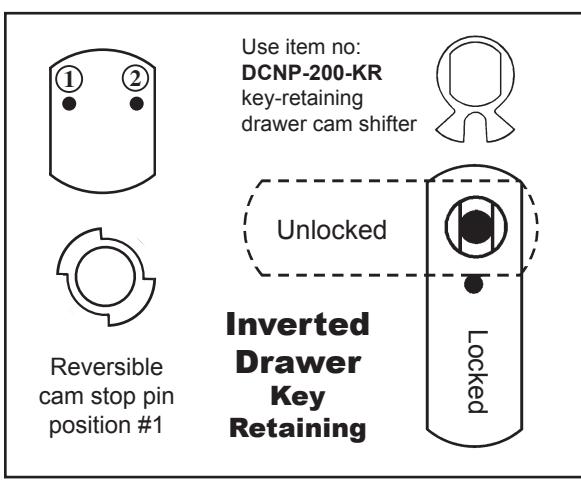

Key-retaining assembly requires purchase of additional key-retaining cam shifters (For doors use item no: DCNP-200-KDR ) / (For drawers use item no: DCNP-200-KR )

Key removable in locked position only.

Key removable in locked position only.

Key removable in locked position only.
