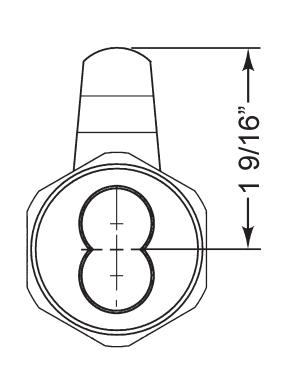

CR25LM/DM

IMPORTANT:

It is highly recommended that you install the cam/prong driver and lock cylinder into the lock body and cycle to the locked position before assembling cam, cam shifter and stop pin onto the back of the lock.

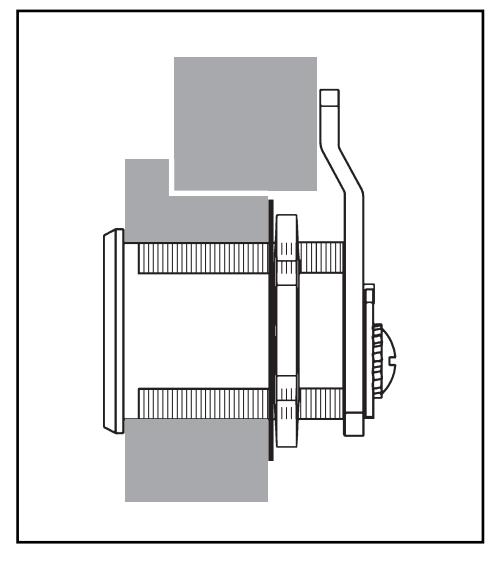

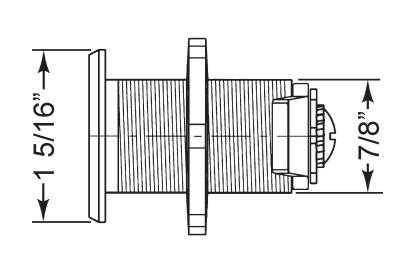

Typical Installation

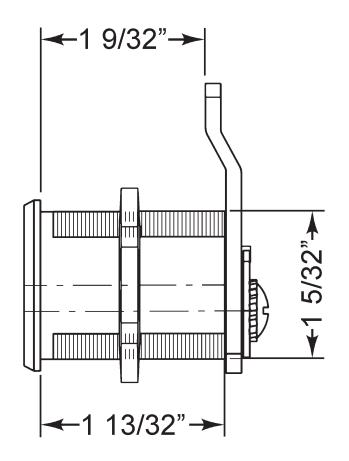

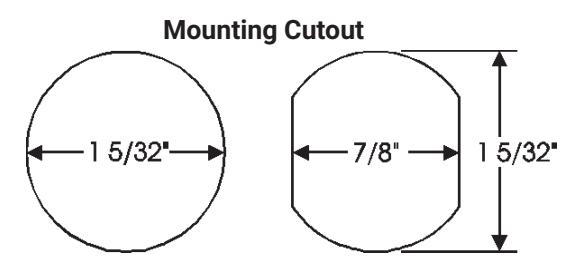

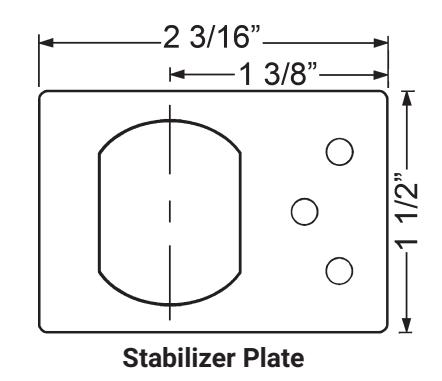

Lock diameter is 1-1/8". Drilled hole should be slightly larger.

Title Installation instructions for CR25LM/DM series cam lock
Series	Barrel Length	Bolt type	Mounting	Revision Date
CR25	1-7/16"	Cam lock	Surface	09/2014

CR25LM/DM

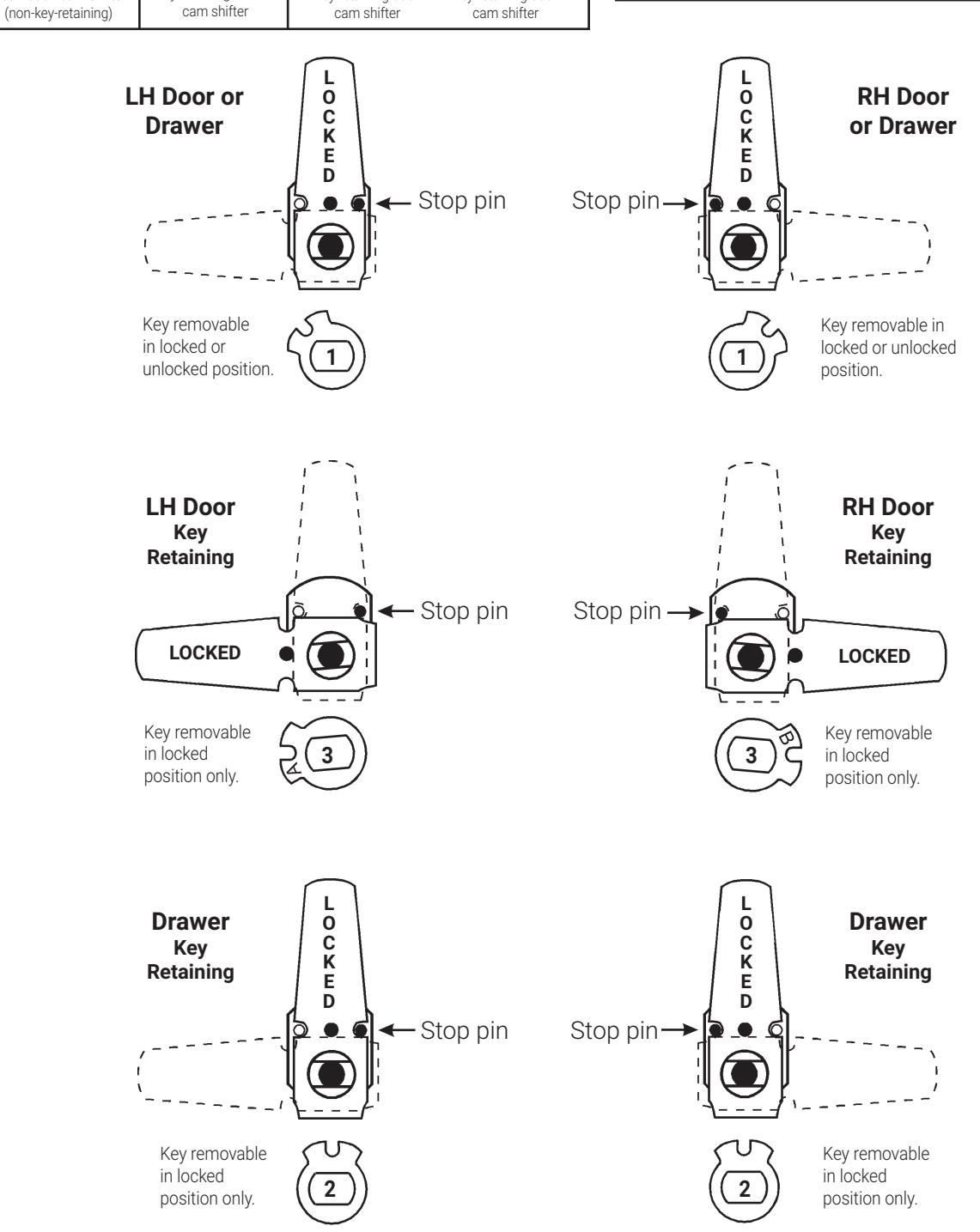

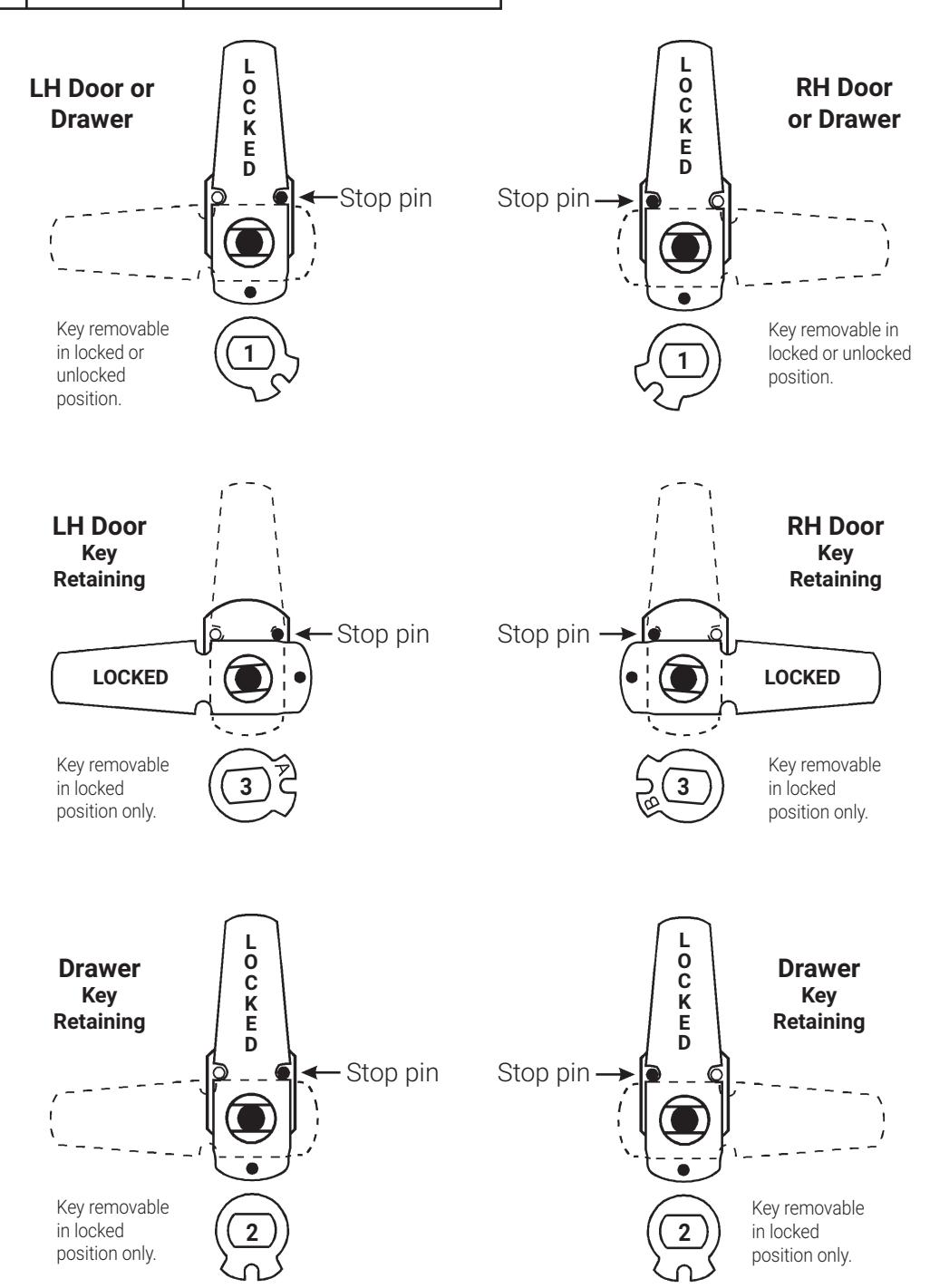

Assembled with vertical long cam 720-3-2 or extra long 3" cam 720-3-4

key retaining door cam shifter

key retaining door cam shifter

IMPORTANT! If your cam has a brass pin between the two notched cut outs use these instructions, otherwise see page 3.

CR25LM/DM

cam shifter

Assembled with vertical long cam 720-3-2 or extra long 3" cam 720-3-4

(non-key-retaining)

720-CDDM (A Side) key retaining door cam shifter

720-CDDM (B Side) key retaining door cam shifter

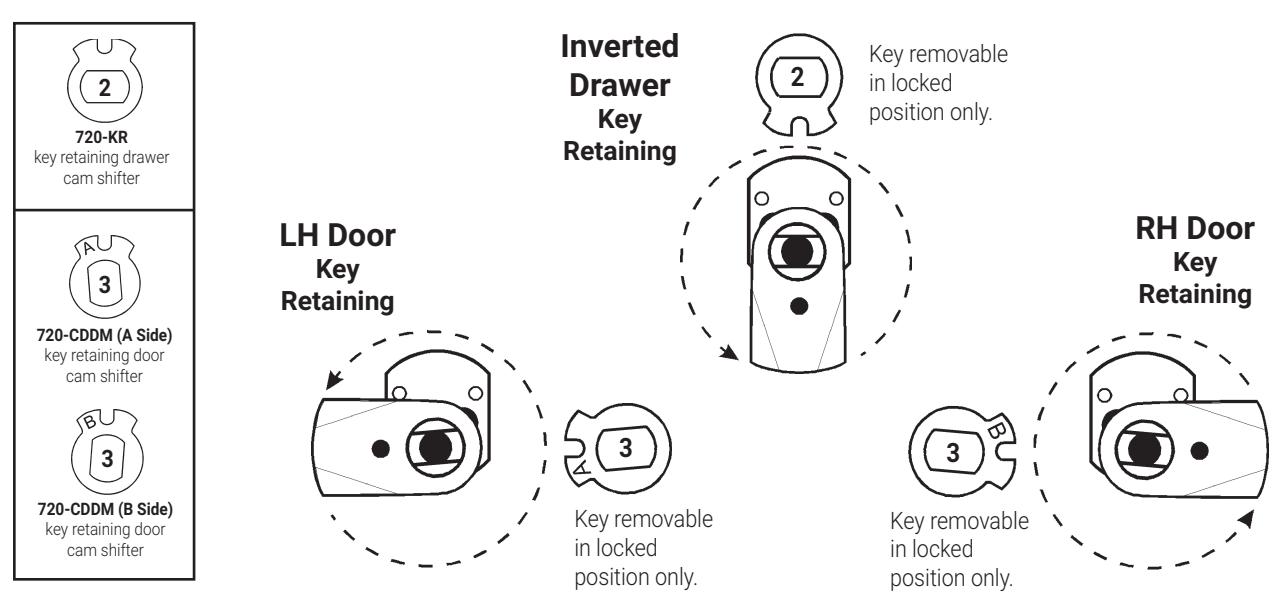

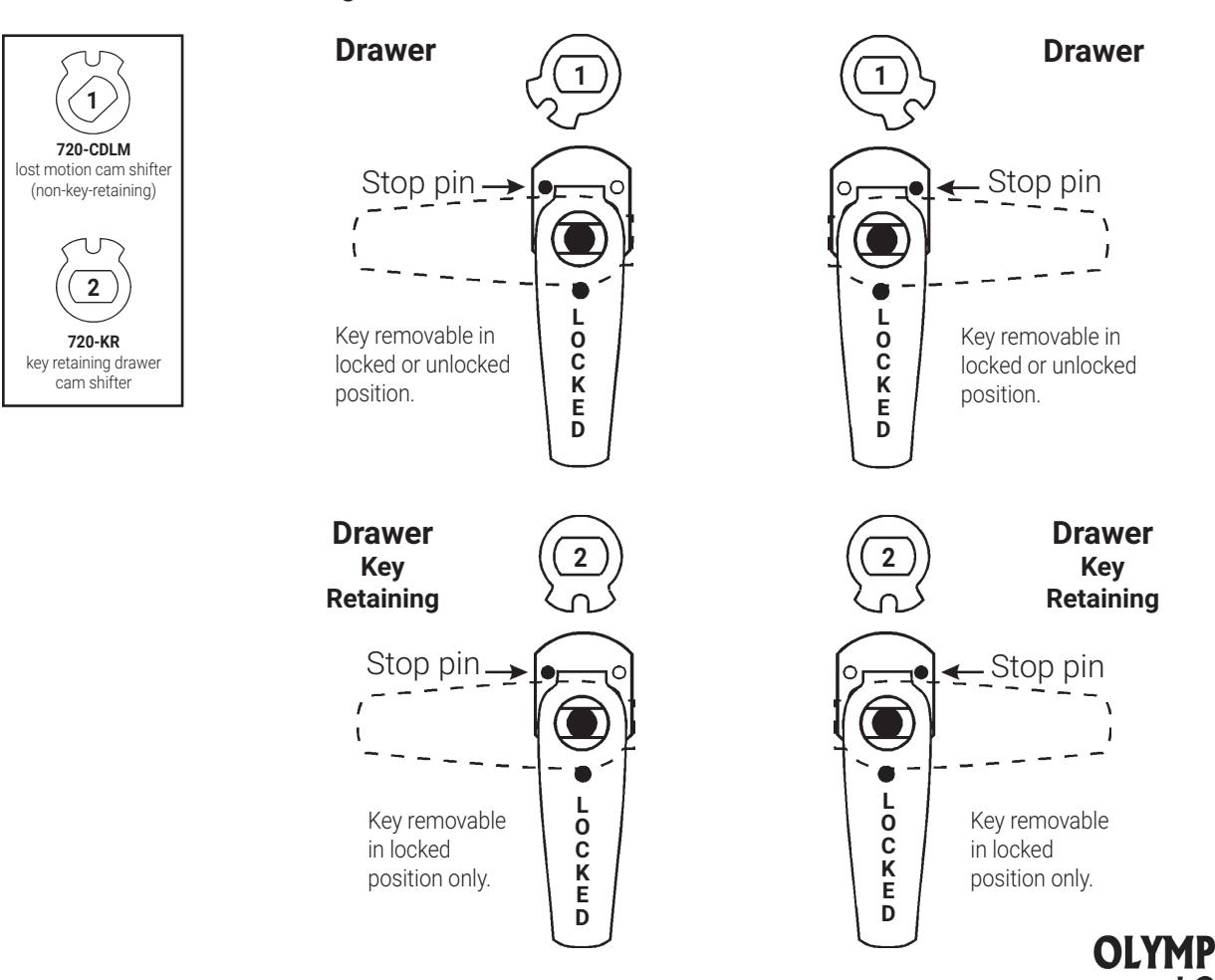

IMPORTANT! If your cam has a brass pin on the bottom of the cam use these instructions, otherwise see page 2.

Assembled with short cam 720-3-1 CR25LM/DM

Assembled with inverted long cam 720-3-3 or 720-3-5
