Olympus Lock – Corbin Russwin IC Core CR1125RD Installation Instructions
Open the original PDF document
View PDFInstallation Instructions
CR1125RD

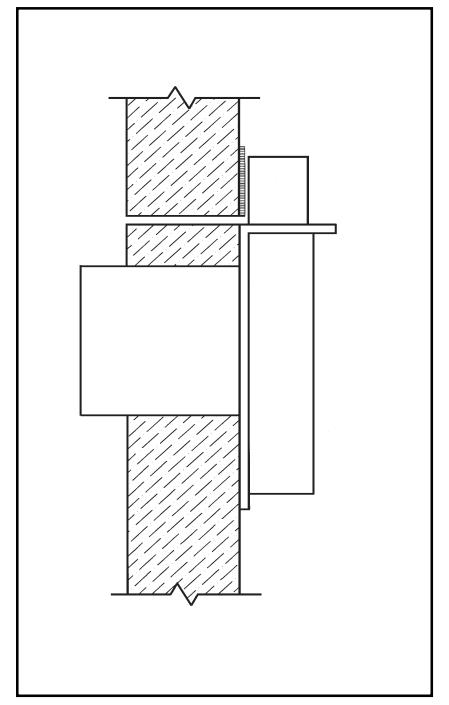

Typical Installation
Includes
2 Mounting screws #8 x 5/8" 2 Strike screws #5 x 5/8"
| Title | ||||
|---|---|---|---|---|
| Installation instructions for CR1125RD series cabinet lock | ||||
| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| CR1125RD | 1-1/16" | Deadbolt | Surface | 06/2004 |
