Olympus Lock Best Keyway 3-4 Cam Lock – B7 Series Installation Instructions
Open the original PDF document
View PDFB7 Series

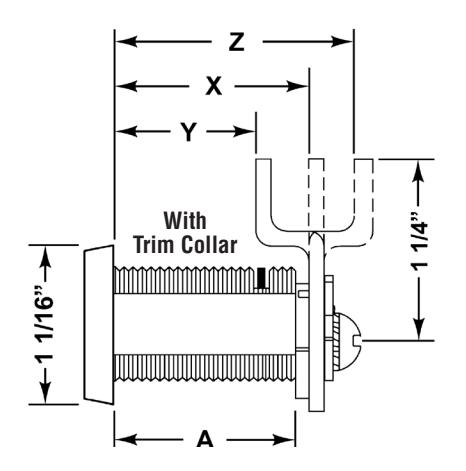

Cam Lock Dimensions
| With Trim Collar | ||||
|---|---|---|---|---|
|
For Mat.
Thickness |
7/8" | |||
|
Straight
Cam (X) |
1-3/16" | |||
|
Inbent
Cam (Y) |
7/8" | |||
|
Outbent
Cam (Z) |
1-1/2" | |||
|
Cylinder
Length (A) |
1-1/8" | |||
Mounting Cutout
Overlay Flush
|
Title
Installation instructions for B7 series cam lock |
|||||
|---|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date | |
| B7 | See Chart | Cam Lock | Surface | 11/2012 | |
B7

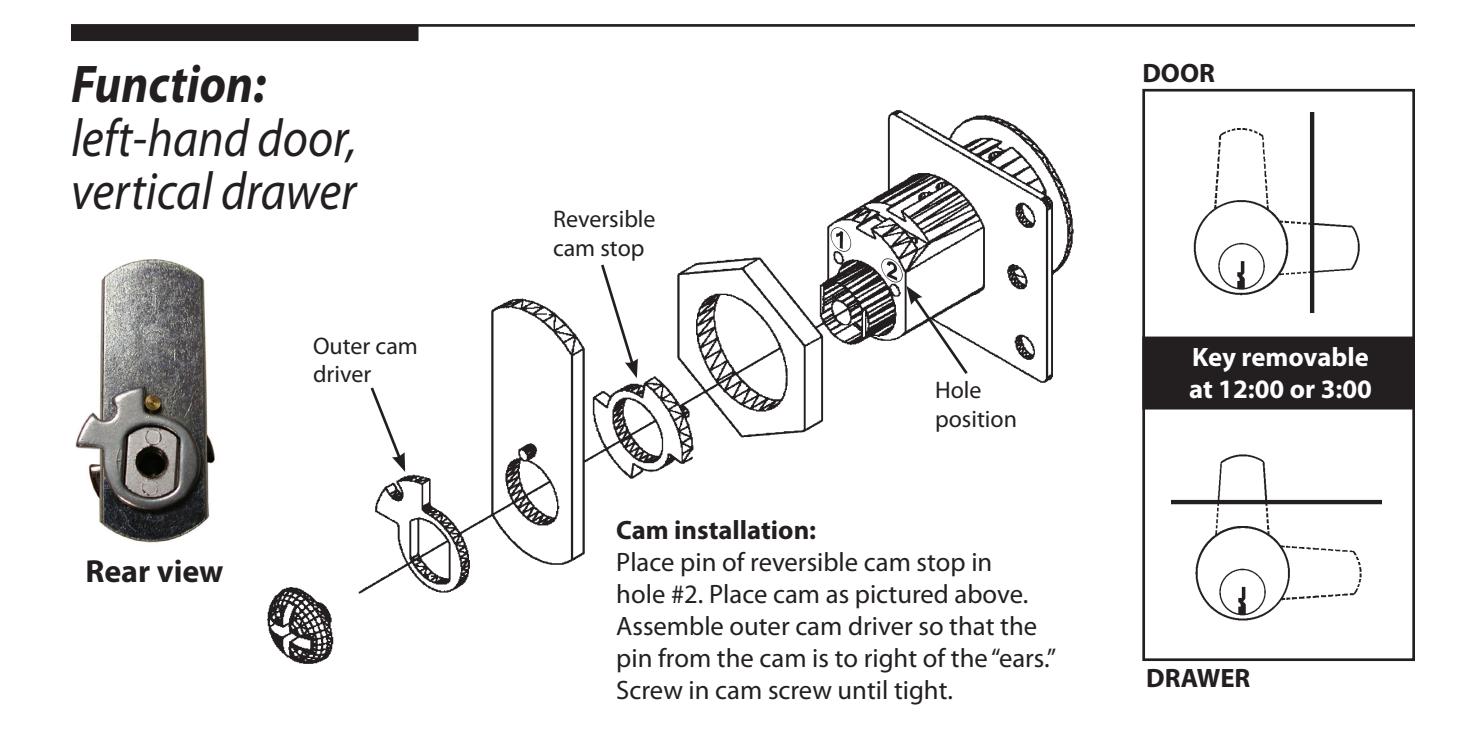

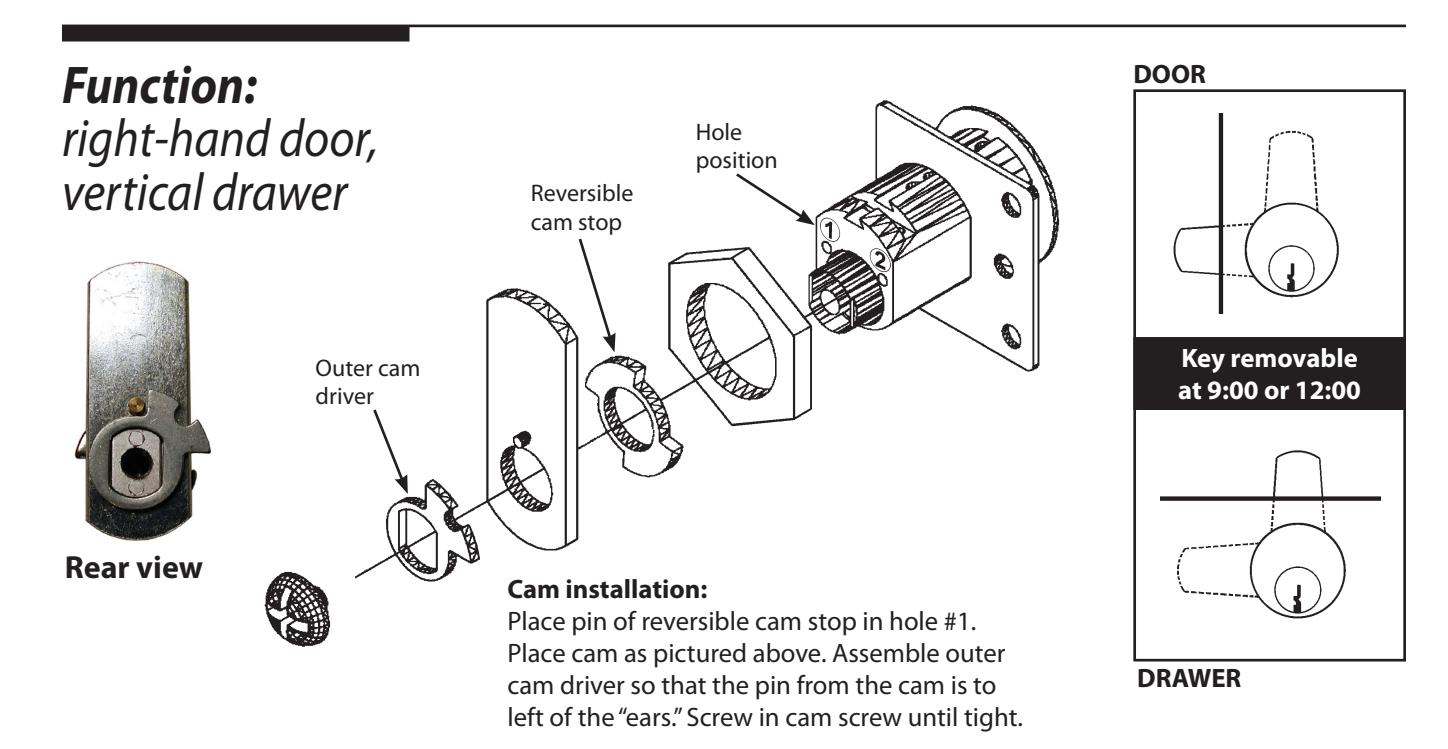

All below configurations can be used with straight cam or offset cam (in either the inbent or outbent position).
B7

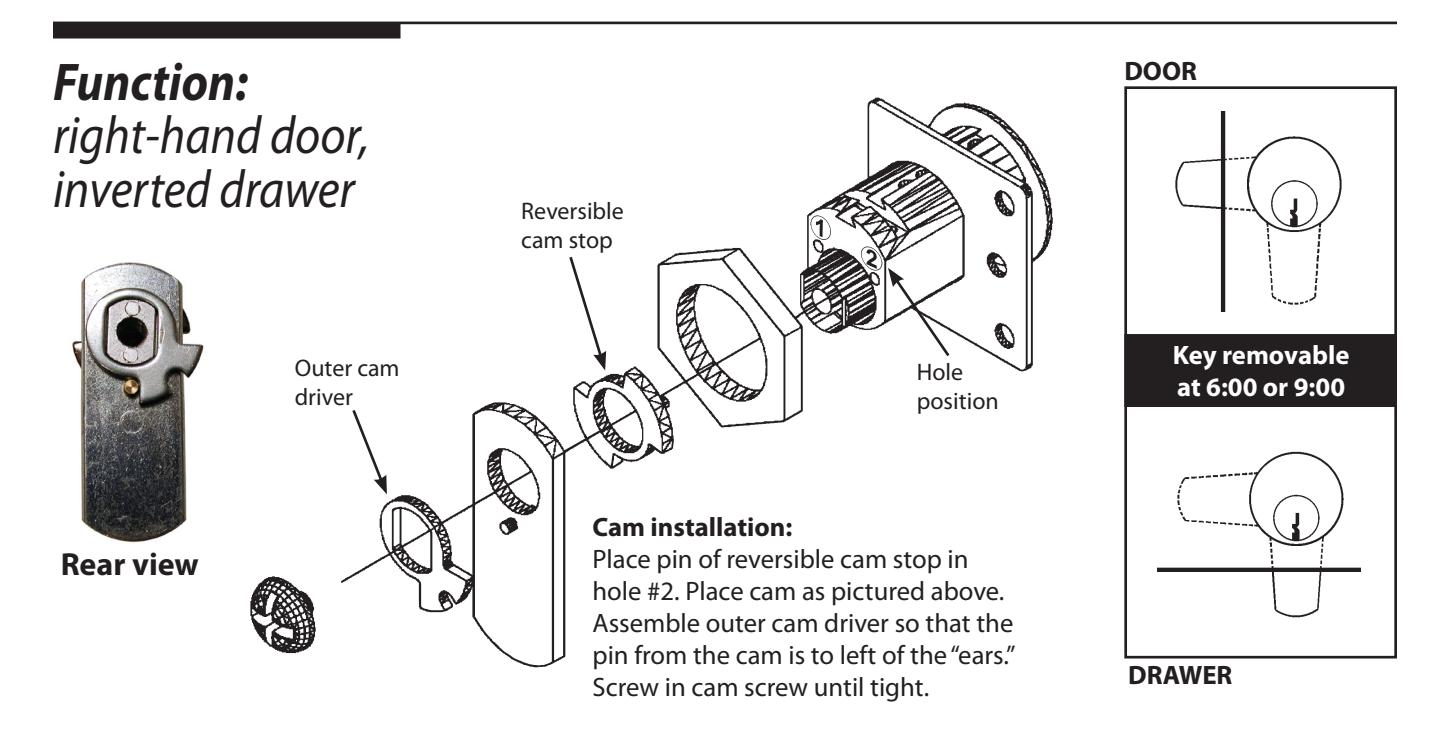

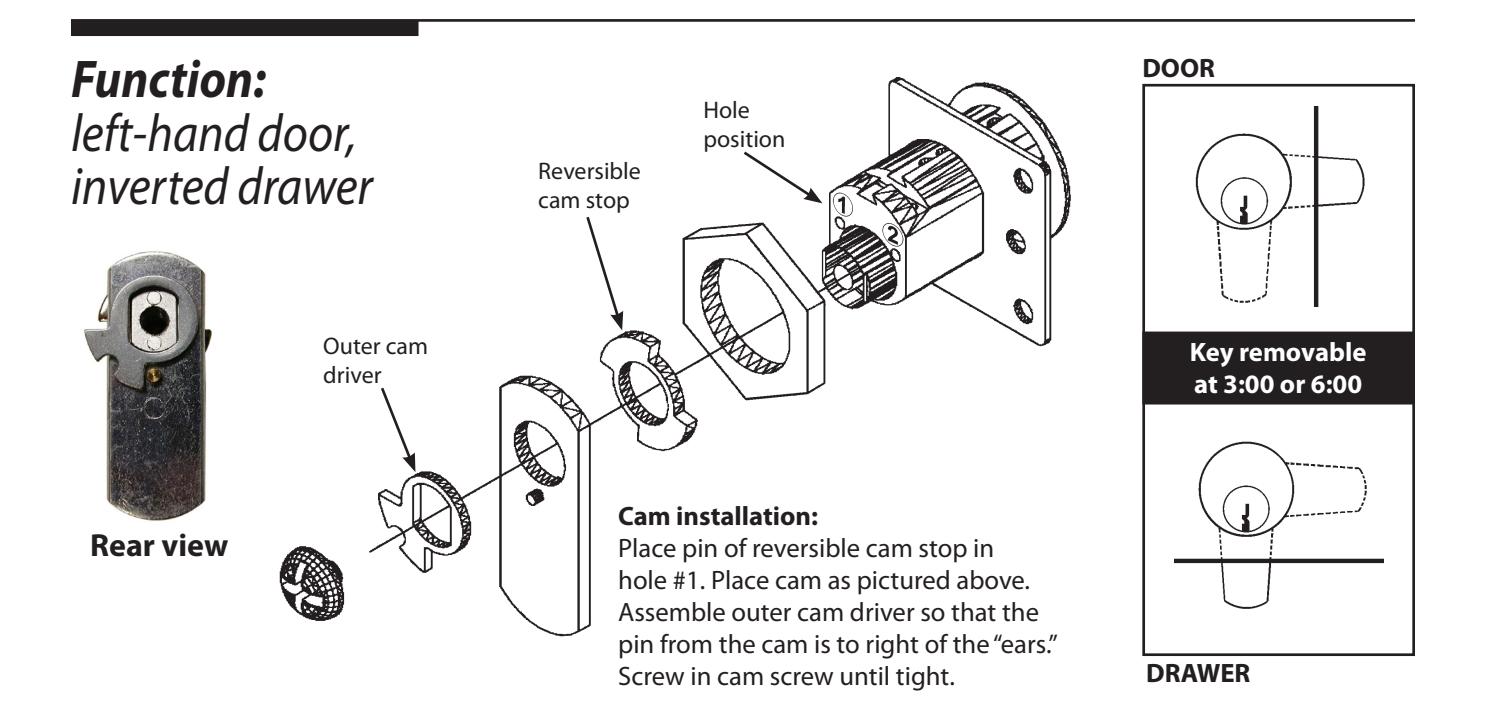

All below configurations can be used with straight cam or offset cam (in either the inbent or outbent position).
