Cabinet Locks for Banking

Cabinet lock solutions for banking and financial institutions.

Locks for metal and wood bank fixtures. Available in a wide selection of styles and keyways. N Series, Schlage and small format interchangeable core.

Small Pin — Get the increased security and versatility of a pin tumbler system for your bank fixtures. Pin tumbler locks are more secure and can accommodate up to 2000+ possible key codes. Easily provide or restrict access by job function or department.

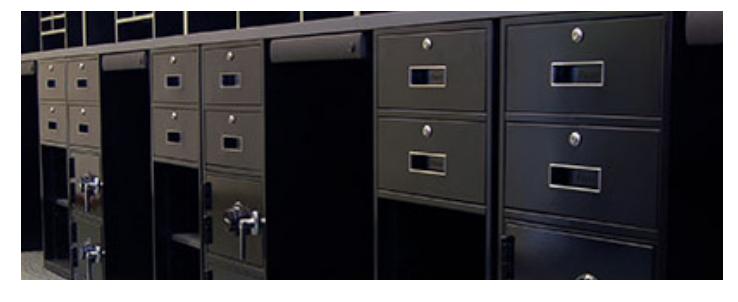

Metal Bank Fixtures

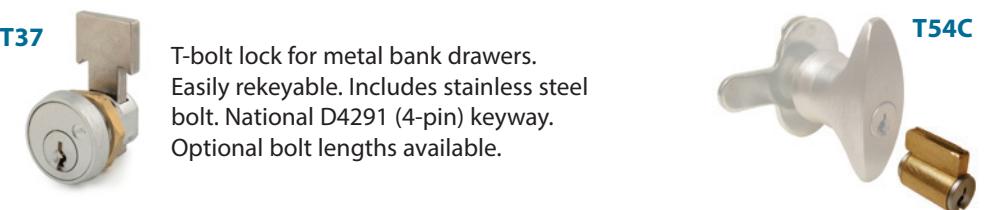

T-bolt lock for metal bank drawers. Easily rekeyable. Includes stainless steel bolt. National D4291 (4-pin) keyway. Optional bolt lengths available.

Replacement cylinders for CompX/ National C8154/C8155 T-knob locks for metal bank cabinets. Can be keyed to match National D4291 (4-pin) or D4292 (5-pin) key systems.

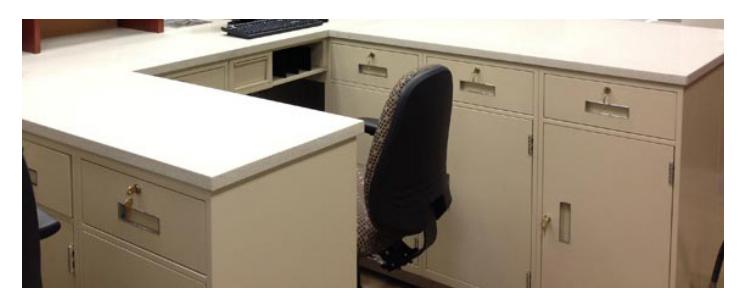

Wood Bank Fixtures

100DR

ANSI/BHMA Grade 1 deadbolt cabinet door and drawer locks. Optional key-retaining function and extended bolts available. KA, KD, MK or GMK. N Series National keyway. 100DR — Deadbolt cabinet door lock 200DW — Deadbolt cabinet drawer lock

Low profile deadbolt cabinet drawer lock. Easily rekeyable. Available in National D4291 (4-pin) or D4292 (5-pin) keyway. N078 — Drawer furniture lock (vertical) N078R — Door furniture lock (right-hand) N078L — Door furniture lock (left-hand)

N078 998/999 L20V

Latch lock for cabinet drawers or doors. Easily rekeyable. Available in National D4291 (4-pin) or D4292 (5-pin) keyway. 998 (V/I) — Drawer latch lock (vertical or inverted), field reversible. 999 (R/L) — Door latch lock (right-hand or left-hand), field reversible.

L20V — Heavy duty drawer latch lock.

Cabinet Locks for Banking

Cabinet lock solutions for banking and financial institutions.

Locks for metal and wood bank fixtures. Available in a wide selection of styles and keyways. N Series, Schlage and small format interchangeable core.

Commercial Keyway — Locks accept commercial cylinders such as Schlage original, Schlage compatible or small format interchangeable core. Most commercial keyways are available in 6 or 7 pin systems for increased security. These locks can also chamber popular electronic cylinders such as Medeco Logic, Medeco NextgenXT, ASSA Cliq or Videx Cyberlock.

Wood Bank Fixtures

206 (6-pin) 207 (7-pin)

ANSI/BHMA Grade 1 deadbolt cabinet door and drawer locks. Optional key-retaining function. KA, KD, MK or GMK. Schlage C keyway.

700S— Deadbolt cabinet door lock 800S — Deadbolt cabinet drawer lock

Above locks less cylinder to accept Schlage compatible third-party cylinders.

700LC— Deadbolt cabinet door lock 800LC — Deadbolt cabinet drawer lock

ANSI/BHMA Grade 1 deadbolt cabinet door and drawer locks. Optional keyretaining function and extended bolt available. Accepts Best-style small format interchangeable core cylinders.

721DR— Deadbolt cabinet door lock 721DW — Deadbolt cabinet drawer lock

See 206/207 Series small format cores for use with 721DR and 721DW small format IC cabinet locks.

Small format (Best-style) interchangeable core cylinders for use with SFIC compatible cabinet locks. Available in 6-pin or 7-pin versions. Provided uncombinated or custom keyed. Available in the most popular BEST keyways.

206— Deadbolt cabinet door lock 207 — Deadbolt cabinet drawer lock

See 721DR/721DW Series cores for use with 206 and 207 series small format interchangeable core cylinders.
