B7 SERIES

3/4" Cam Lock With BEST keyways

Available BEST Keyways A, B, E, F, G, J, K, L and R

This product is available in keyways that match existing BEST original keyways and can be keyed into existing systems using these BEST keyways.

SPECIFICATIONS

Function: Cam lock

Rekeyable: Easily rekeyable via cylinder retainer

clip

US Patent Nos: 5,038,589; 5,737,950

Retrofits: Best 5E

Usage: Commonly used as locking device on medical carts (see also our 724VR medical cart/file

cabinet lock for use on medical carts)

Body: Zinc die cast

Cylinder: Zinc die cast pin tumbler, drilled for 7 pins Standard function: Key removable in locked or

unlocked position.

Key retaining function: Alternate key-retaining shifters are available separately for key removable

in locked position only

Cams: 2 reversible cams work in all positions

Finish: 26D

Packaged: Packed 10 per box KEYING INFORMATION

Keyways: A,B,E,F,G,J,K,L,R Keys: Includes 2 keys per lock

Stock keying: O-Bit

Keying: Custom and/or masterkeying available. Specify at time of order. Can be keyed into existing BEST SFIC systems using the same keyway.

INCLUDED ACCESSORIES

Trim collar

Straight cam #DCNP-100-SC Offset cam #DCNP-100-BC Anti-rotation plate #DCNP-500-ARP

OPTIONAL ACCESSORIES

Alternate cams

Key retaining drawer cam shifter #DCNP-100-KR Key retaining door cam shifter #DCNP-100-KDR

B7

Keyway: Available in 9 popular BEST keyways. Can be used in existing BEST systems using the keyways indicated.

Retrofits: Equivalent to BEST 5E Series. Handing: Includes 2 cams that work in all handings (door or drawer)

AVAILABLE KEYWAYS

B7 SERIES FEATURES

  • Non-handed—Field reversible locking positions: right-hand, lefthand, vertical and inverted
  • Only 2 cams required—Ships with reversible straight and offset cams that meet requirements of all locking positions
  • Easy rekeyability—Allows for a quick installation and increased productivity
  • Anti-rotation plate—Eliminates lock rotation, prevents loosening of fixing nut, and provides additional security in particleboard applications

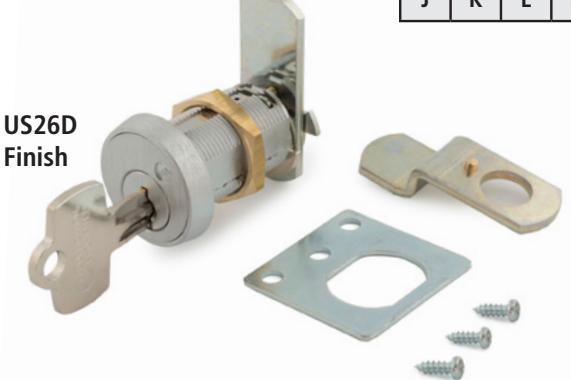

DCNP-100-SC straight cam DCNP-100-BC offset reversible cam INCLUDED CAMS

WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

B7 SERIES

3/4" Cam Lock With BEST keyways

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

Other Accessories

Key-retaining cam shifters

  • For door function: DCNP-200-KDR
  • For Drawer function: DCNP-200-KR

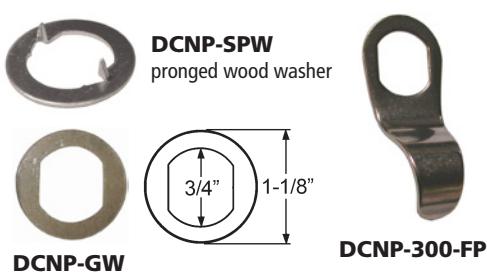

Washers

  • Pronged wood washer: DCNP-SPW
  • Self-adhesive clear plastic washer for mounting lock on glass: DCNP-GW

Finger Pull

• Finger pull: DCNP-300-FP

Number Plates & Kits

  • T37-NKIT number plate kit
  • T37DC-NP number plate only

T37-NKIT Number Plate Kit Includes both pieces. For number plate only, use item # T37DC-NP

TRB7 Series Trim Collars

Optional Cams

Note: Offset cams are reversible and can be used in either the inbent or outbent position.

Item Description / Packed Each
DCNP-HD-875 7/8" long straight cam
DCNP-HD-1 1" long straight cam
DCNP-100-SC 1-1/4" long straight cam
DCNP-100-SC2 1-3/4" long straight cam
DCNP-100-SC3 1-1/2" long straight cam
DCNP-100-LC 3" long straight cam
DCNP-100-LBC 1-1/2 long cam, 5/16" offset
Item Description / Packed Each
DCNP-100-B1
DCNP-100-B2
DCNP-100-B3
DCNP-100-WB 		Straight cam with oval cutout
U-shaped cam
Straight hook cam
Short cam / 90° offset arm
Item Description / Packed Each
DCNP-100-BC
DCNP-100-BC5
DCNP-100-HC1 		1-1/4" long cam, 5/16" offset
1-1/4" long cam, 1/2" offset
1-1/2" long hook cam, 5/16" offset
DCNP-100-HD
DCNP-100-HD2
DCNP-100-HD3
DCNP-100-LBC 		1-7/16" long cam, 1/2" offset
1-3/4" long cam, 5/16" offset
1-1/8" long cam, 5/16" offset

>> Visit our website www.olympuslock.com for complete dimension and descriptions of available optional cams.

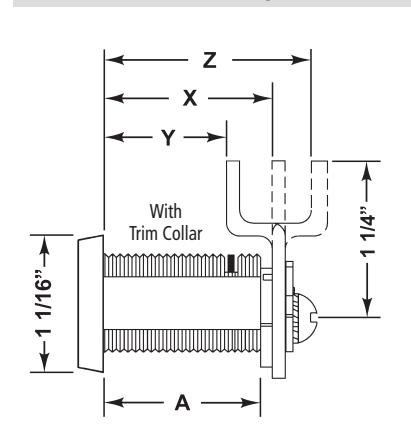

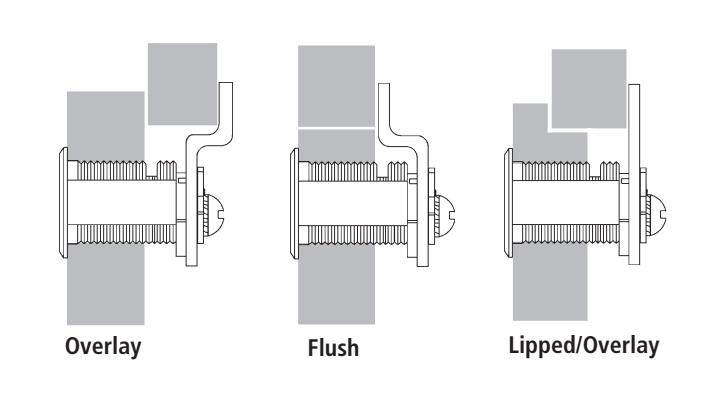

DIMENSIONS | TYPICAL INSTALLATION

With Trim Collar
For Mat. Thickness 7/8"
Straight Cam (X) 1-3/16"
Inbent Cam (Y) 7/8"
Outbent Cam (Z) 1-1/2"
Cylinder Length (A) 1-1/8"
