996 | 997

R Series: Door & Drawer Latch Lock — 4-way Reversible

Easily field reversible between door and drawer function

SPECIFICATIONS

Function: Spring latch

Keying: Can be keyed together with other

R Series locks

Reversible: Easily reversible between door and

drawer function

Rekeyable: Easily rekeyable via set screw cylinder

release mechanism

US Patent Nos: 4,899,563; 7,874,189 B2

Body: Zinc die cast

Cylinder: Solid brass, pin tumbler Barrel length: 15/16" or 1-3/8"

Barrel diameter: 7/8" Latch projection: 1/4" Finish: 26D or US4

Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: R Series (equivalent to CCL R1 system)

Keys: Includes 2 keys per lock Stock keying: KD/KA - 5 pin standard Stock KA#: 4T21579, 4T37526

Masterkeyed: 5 pin standard, 6 pin available

Grand masterkeyed: Available Keyblank 5-pin: KBR-5-NP (equivalent to CO106, 1003A) Keyblank 6-pin: KBR-6-NP (equivalent to L1003A)

INCLUDED ACCESSORIES

Strike: 999-STRIKE (slotted lip strike)

OPTIONAL ACCESSORIES

Spacer: WP24 (1/8" thick)

Trim ring: TR1256

Through-bolt hardware: ETS6 through-bolt plate

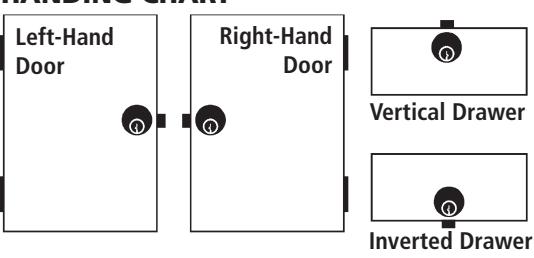

HANDING CHART

DRAWER 996V Vertical Hand (VH)

996 Drawer

Function: Drawer lock Handing: Available in the vertical or inverted position

DRAWER 996I Inverted Hand (IH)

997 Door

Function: Cabinet door lock

Handing: Available in the left-hand or

right-hand position

DOOR 997L Left Hand (LH)

DOOR 997R Right Hand (RH)

AVAILABLE FINISHES

996 | 997

R Series: Door & Drawer Latch Lock — 4-way Reversible

OPTIONAL ACCESSORIES

Internal plastic spacers

• WP24 3/32" thick plastic spacers Strikes
• 12-1, 12-2, 12-3, 12-4, 07S

Trim Ring

• TR1256 trim ring

Through-bolt plate

External metal 1/8" or through-bolt plate allows for an attractive flush mounting of the cabinet lock face. Available in US3 or US26D finish.

• ETS6 through-bolt plate, 1/8" thick

U.S. Patent No. D490,686

DIMENSIONS

996 Drawer Lock

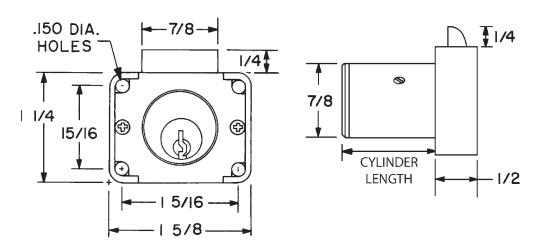

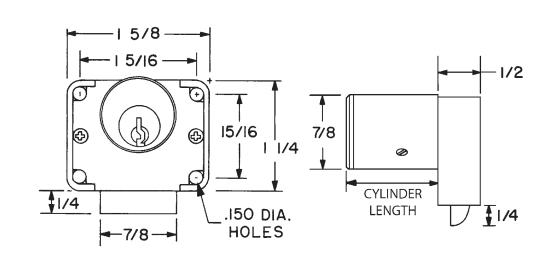

996V VERTICAL HAND 996I INVERTED HAND

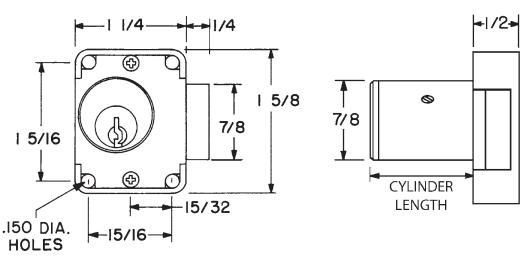

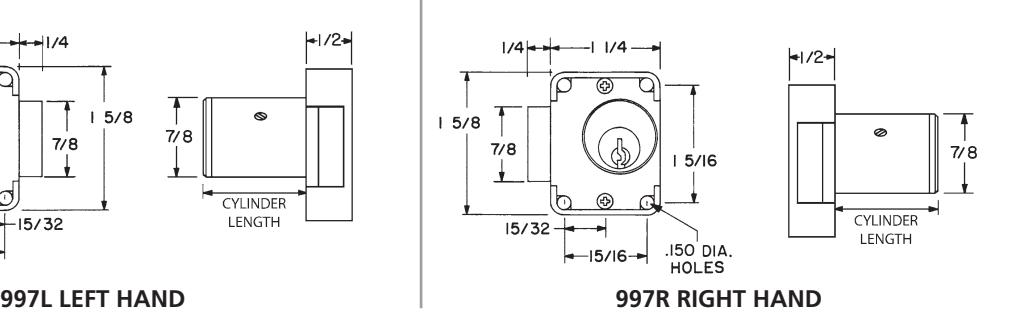

997 Cabinet Door Lock
