PRODUCT DATA SHEET

950IC

SFIC: Deadlatching Drawer Lock

For BEST style interchangeable core cylinders

SPECIFICATIONS

Function: Deadlocking latch

U.S. Patent No: 4,899,563; 4,922,774; 5,657,652

Body: Zinc die cast Cylinder length: 1-1/8" Barrel diameter: 1-1/8" Latch projection: 1/4" Finish: 26D or US3

Packaged: Packed 10 per box KEYING INFORMATION

Cores: Not included.

Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores Compatible electronic cylinders: Medeco Nexgen

XT or VIDEX CyberLock SFIC cylinders

INCLUDED ACCESSORIES

10-350 spacers (qty 2) 725-1 spacer to fit 6 or 7 pin cores 850-210 matching strike 725-PA plastic thumbturn

OPTIONAL ACCESSORIES

Spacers: 10-350 (1/8" thick), 10-348 (1/4" thick),

10-349 (1/2" thick) Trim ring: TR78

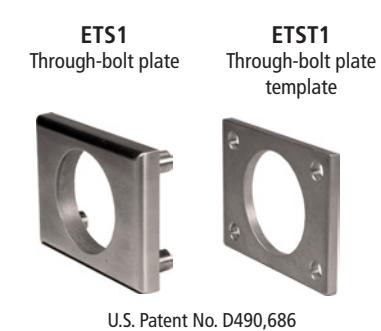

Through-bolt hardware: ETS1 through-bolt plate,

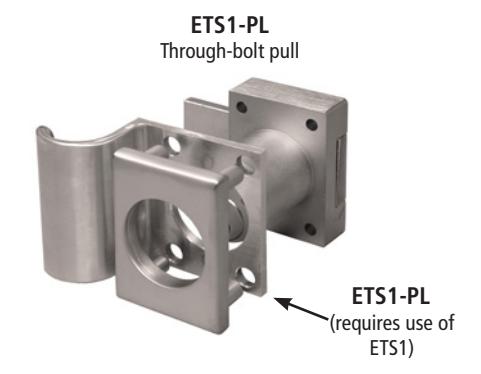

ETS1-PL trim pull and ETST1 template

SFIC cores: 206/207 Series

Latch cannot be depressed when deadlock bolt is engaged.

AVAILABLE FINISHES

US26D US3

INCLUDED ACCESSORIES

10-350 internal spacers For a flush fit on varying material thicknesses

850-210 / 850-211 lip strike

950IC

SFIC: Deadlatching Drawer Lock

OPTIONAL ACCESSORIES

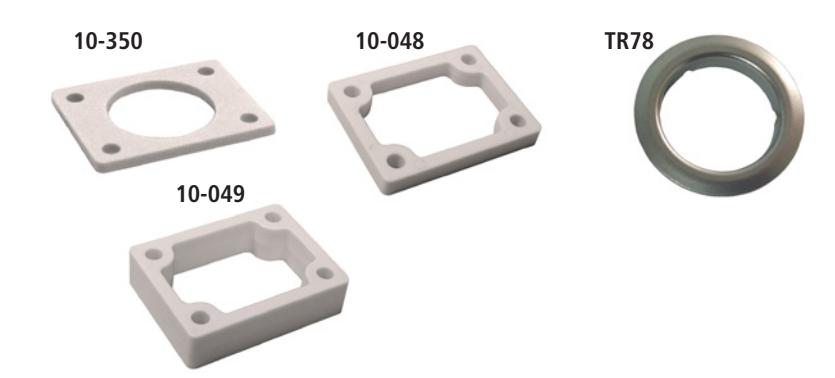

Internal Plastic Spacers

• 10-350 1/8" thick plastic spacers
• 10-348 1/4" thick plastic spacers
• 10-349 1/2" thick plastic spacers

Strikes

• Plastic bar strikes: 10-054, 10-055, 10-057, 10-058.
• Metal strikes: 10-056 12-1, 12-2, 12-3, 12-4, 999-STRIKE, L78ST-1, L78ST-2

Trim Ring

• TR78 trim ring

Through-Bolt Mounting Plate

External metal 1/8" or 1/4" through-bolt plate allows for secure and attractive flush mounting of the cabinet lock face. Available in US3 or US26D finish.

• ETS1-125 through-bolt plate, 1/8" thick
• ETS1-250 through-bolt plate, 1/4" thick

Through-Bolt Mounting Plate Template

Allows for proper mounting hole placement of throughbolt plate. Can be used as a 1/8" shim spacer. Available in US3 and US26D finish.

• ETST2 through-bolt plate template

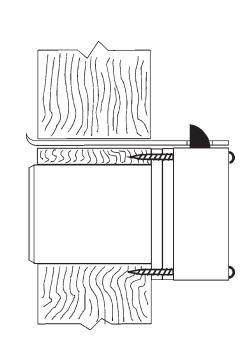

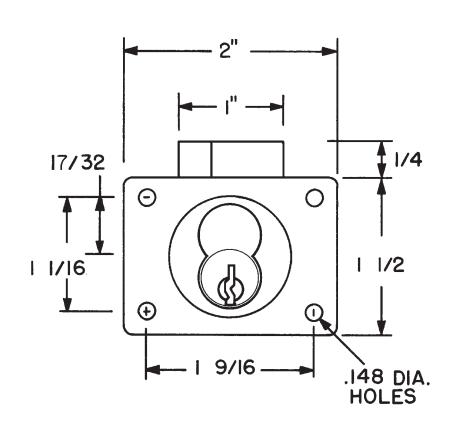

DIMENSIONS | TYPICAL INSTALLATION

Note: Line up center mark on latch with center mark on strike for correct strike placement.

Note: Strike must be lined up so that dead lock portion of latch is depressed when drawer is closed.
