Olympus Lock – 950 Series Cabinet Drawer Lock Installation Instructions
Open the original PDF document
View PDFInstallation Instructions

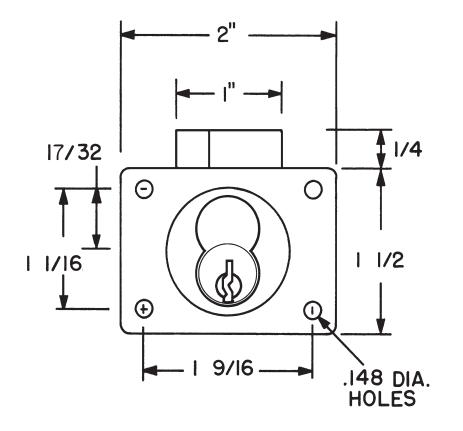

950
Note: Line up center mark on latch with center mark on strike for correct strike placement.

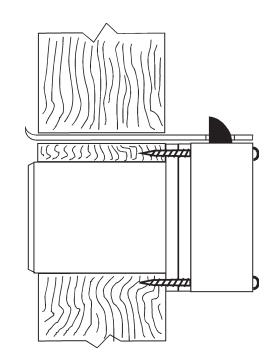

Note: Strike must be lined up so that dead lock portion of latch is depressed when drawer is closed.
10-350 - 1/8" spacer
Note: Use of spacers and strikes depends on application and material thickness.

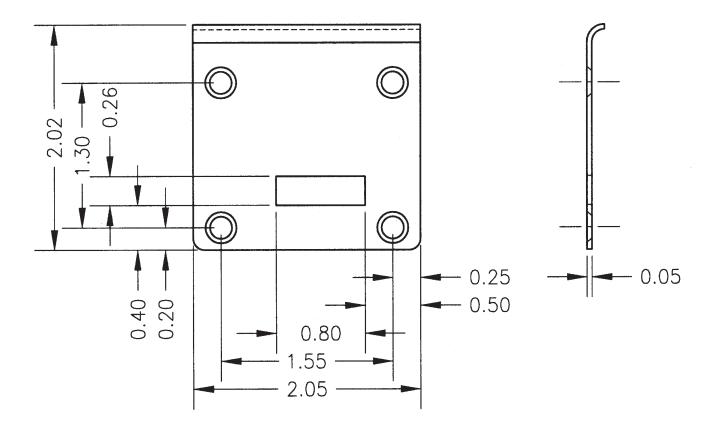

850-210 lip strike
for use with 1-1/8" barrel length locks
|
Title
Installation instructions for 950 series cabinet drawer lock |
||||
|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| 950 | 1-1/8" | Deadlatch | Surface | 09/2012 |
