850S

S Series: Schlage C Keyway Deadlatching Drawer Lock

SPECIFICATIONS

Rekeyable: Easily rekeyable via set-screw cylinder

removal mechanism

U.S. Patent Nos: 4,899,563; 4,920,774; 5,657,652

Body: Zinc die cast

Cylinder length: 1-1/8" or 1-3/8"

Barrel diameter: 1-1/8" Finish: 26D or US3

Packaged: Packed 10 per box

INCLUDED ACCESSORIES

For 1-1/8"barrel length locks: 10-350 plastic spacers (qty 2) 850-210 matching strike For 1-3/8"barrel length locks: 850-211 matching strike

850S KEYING INFORMATION

Keying: Can be keyed together with other Schlage C

Keyway locks

Keyway: Schlage C keyway Keys: Includes 2 keys per lock Cylinder: Solid brass, pin tumbler Stock keying: KD/KA - 5 pin standard

Stock KA#: 101, 102

Masterkeying: 5 pin standard, 6-pin available

Grand masterkeying: Available Keyblank 5-pin: KBSC-5 Keyblank 6-pin: KBSC-6

OPTIONAL ACCESSORIES

Spacers: 10-350 spacer (1/8" thick), 10-348 spacer

(1/4" thick), 10-349 spacer (1/2" thick)

Trim ring: TR78 trim ring

Cylinder: 78-201 Series (page 54)

Through-bolt hardware: ETS1 trim plate, ETS1-PL

trim pull and ETST1 template

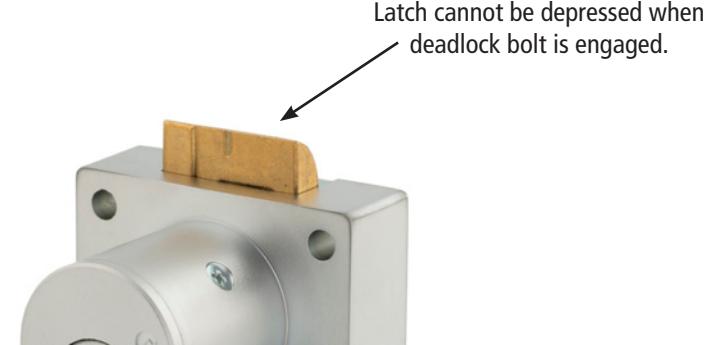

deadlock bolt is engaged.

AVAILABLE FINISHES

US26D US3

INCLUDED ACCESSORIES

850-210 / 850-211 lip strike

850S

S Series: Schlage C Keyway Deadlatching Drawer Lock

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

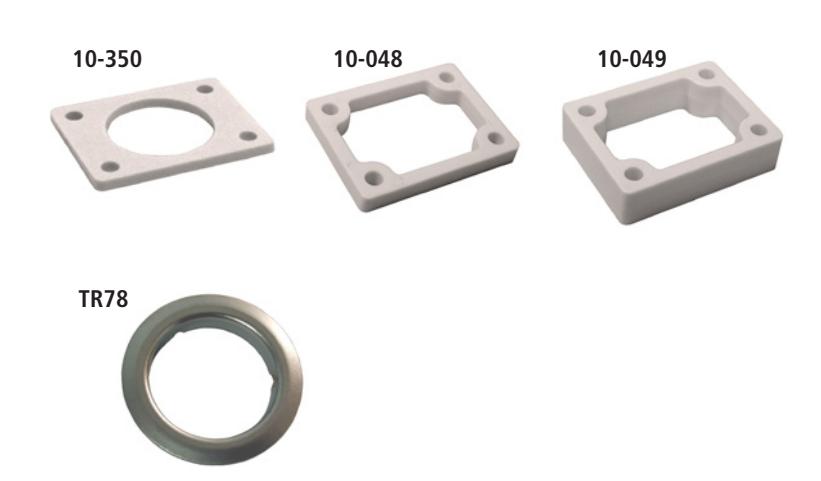

Internal Plastic Spacers

• 10-350 1/8" thick plastic spacers
• 10-348 1/4" thick plastic spacers
• 10-349 1/2" thick plastic spacers

Strikes

• Plastic bar strikes: 10-054, 10-055, 10-057, 10-058. Metal strikes: 10-056 12-1, 12-2, 12-3, 12-4, 999-STRIKE, L78ST-1, L78ST-2

Trim Ring

• TR78 trim ring

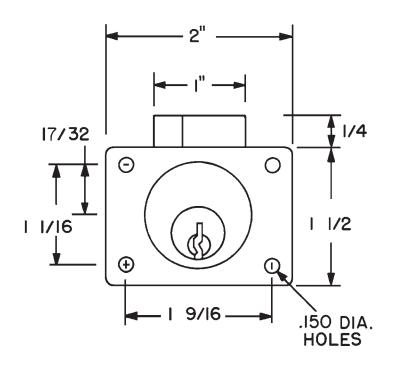

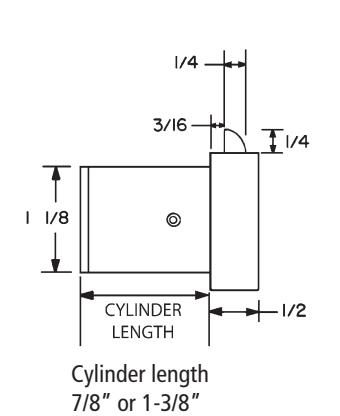

DIMENSIONS | TYPICAL INSTALLATION

Note: Line up center mark on latch with center mark on strike for correct strike placement.

Note: Strike must be lined up so that dead lock portion of latch is depressed when drawer is closed.
