PRODUCT DATA SHEET

829R

S Series: Schlage C Keyway Showcase/Ratchet Lock

Complies with clause 6.3 (8.2~8.4) of ANSI/BHMA A156.11 ANSI standards

SPECIFICATIONS

Rekeyable: Easily rekeyable via set screw cylinder

release mechanism

ANSI/BHMA: Complies with clause 6.3 (8.2~8.4) of

ANSI/BHMA A156.11 ANSI standards Use: Sliding glass or wood doors

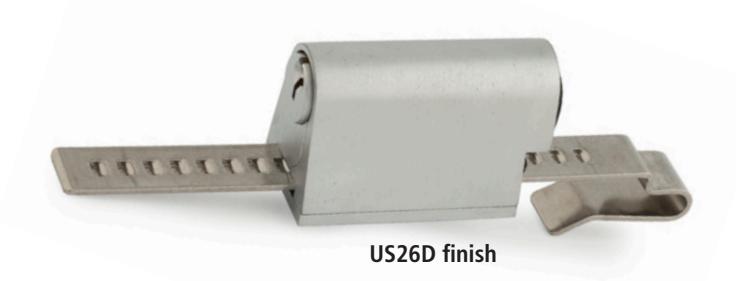

Body: Zinc die cast Strap: Steel Finish: 26D

Packaged: Packed 10 per box

829R KEYING INFORMATION

Keying: Can be keyed together with other Schlage

C Keyway locks

Keyway: Schlage C keyway Keys: Includes 2 keys per lock Cylinder: Solid brass pin, tumbler Stock keying: KD/KA - 5 pin standard

Stock KA#: 101, 102, O-Bit

Masterkeying: 5 pin standard, 6-pin available

Grand masterkeying: Available Keyblank 5-pin: KBSC-5 Keyblank 6-pin: KBSC-6

INCLUDES

729RS-1 strap for 3/16" to 1/4" material thickness

OPTIONAL ACCESSORIES

Alternate straps: 729RS-2 strap for 3/8" material thickness, or 729RS-3 strap for up to 5/8"

material thickness Cylinder: 78-201 Series

ANSI/BHMA: Complies with clause 6.3 (8.2~8.4) of ANSI/BHMA

A156.11 ANSI standards S Series: Schlage C Keyway Showcase/Ratchet Lock

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

Alternate straps (available separately)

All straps are 6" in length.

• 729RS-2 strap for 3/8" material thickness
• 729RS-3 strap for up to 5/8" material thickness

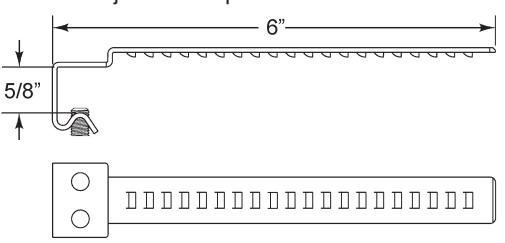

729RS-2 strap for 3/8" material 729RS-3 adjustable strap for 3/8" to 5/8" material

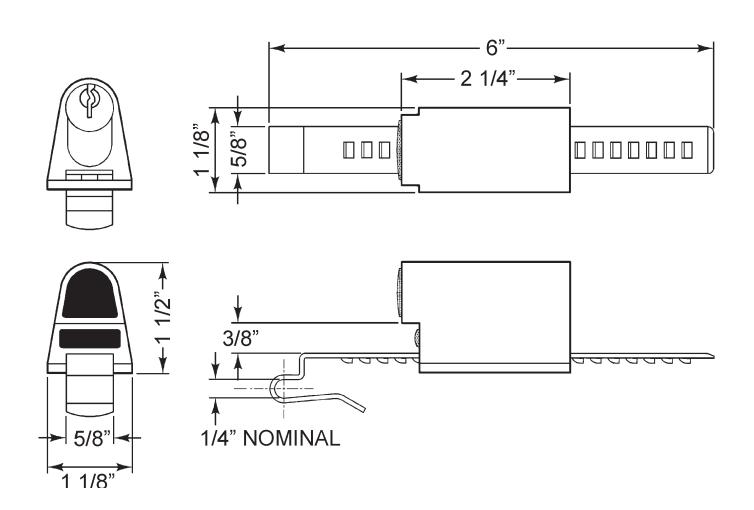

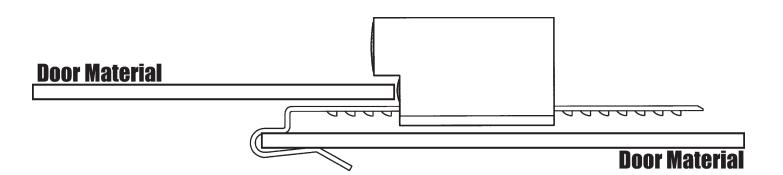

DIMENSIONS | TYPICAL INSTALLATION
