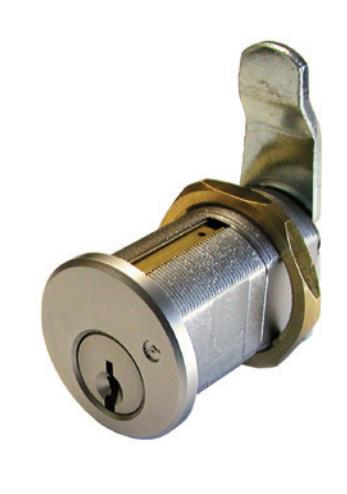

820S

S Series: Schlage C Keyway Cam Lock

Woodwork Institute (WI) acknowledged product

SPECIFICATIONS

Rekeyable: Easily rekeyable via set screw on back

of lock body

U.S. Patent No: 7,716,958 B2 Cylinder diameter: 1-1/8"

Across flats: 7/8"

Max. material thickness: 1-3/8" Min. material thickness: 0.08"

Body: Zinc die cast

Functions: Includes parts for key-retaining or non-

key-retaining Finish: 26D or US3

Packaged: Packed 10 per box

820S KEYING INFORMATION

Keying: Can be keyed together with other Schlage

C Keyway locks

Keyway: Schlage "C" Keyway Keys: Includes 2 keys per lock Cylinder: Solid brass, pin tumbler Stock keying: KD/KA - 5 pin standard

Stock KA#: 101, 102, O-Bit

Masterkeying: 5 pin standard, 6-pin available

Grand masterkeying: Available Keyblank 5-pin: KBSC-5 Keyblank 6-pin: KBSC-6

INCLUDED ACCESSORIES

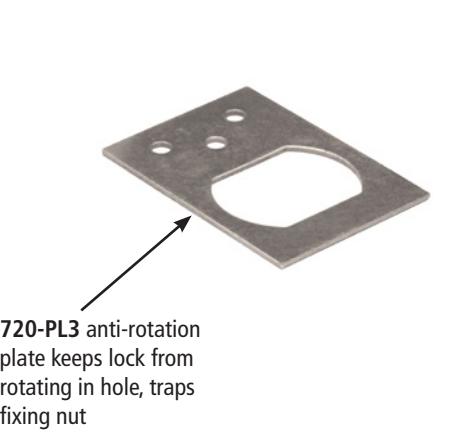

720-PL3 anti-rotation plate 720-3-1 short inverted cam 720-3-2 long vertical cam 720-CDLM lost motion cam shifter 720-CDDM key retaining door cam shifter 720-KR key retaining drawer cam shifter

OPTIONAL ACCESSORIES

Optional cams: 7-3-2, 7-3-3, 7-3-4, 7-3-5

Trim collars: TR200 Series Cylinder: 78-201 Series Switch accessory pack: SW-1 CL-MP-118: Double-D metal punch

AVAILABLE FINISHES

US26D US3

INCLUDED CAMS

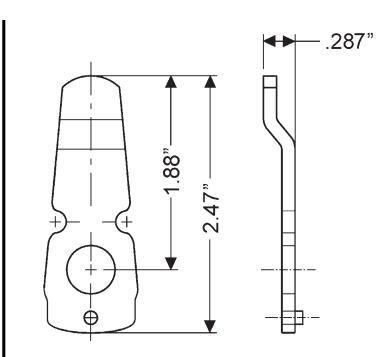

720-3-2 inbent cam for vertical function (bottom-pin style)

S Series: Schlage C Keyway

Cam Lock

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

720-3-3 inbent cam for inverted function

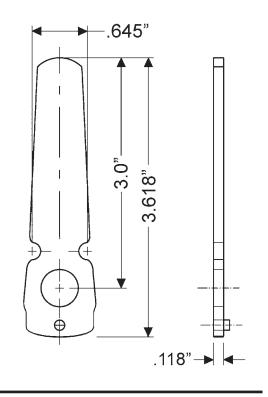

720-3-4 3"straight cam for vertical function

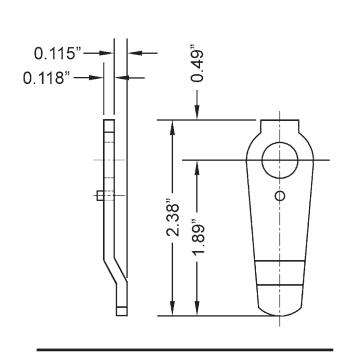

720-3-5 inbent cam for inverted function

Optional Cams CL-MP-118 Double-D Metal Punch

Hole size: Punches a DOUBLE "D" hole size approximately 7/8" wide by 1-1/8" high.

SW-1 Switch Accessory Pack

Use: Includes parts to convert 720, 820, 920, CR25 ME93, SA54 or YA93 series cam locks into switch locks

Switches: Not included.

Accepts: Pin plunger style, snap acting, miniature switches:

• Omron V Series
• Honeywell (MicroSwitch) V Series
• Cherry E Series
• Panasonic (Aromat) ABV Type
• C&K (ITT) TM & TF Series

Configuration: Can be configured for 1 or 2 switches

TR200 Series Trim Collars

Finish: TR201, TR202 and TR203 available in US32D or US3 finish. TR204* available in US32D finish only.

TR201 1/8"

1/4"

TR202

TR203 3/8"

TR204* 5/32"

DIMENSIONS
