Olympus Lock 800LC Cylinder Installation Instructions

Cylinder Installation Instructions

800LC :: Cylinder installation for 800LC cabinet drawer lock

Install tailpiece such that the overhang is facing in the same direction as the bolt (up in this example).

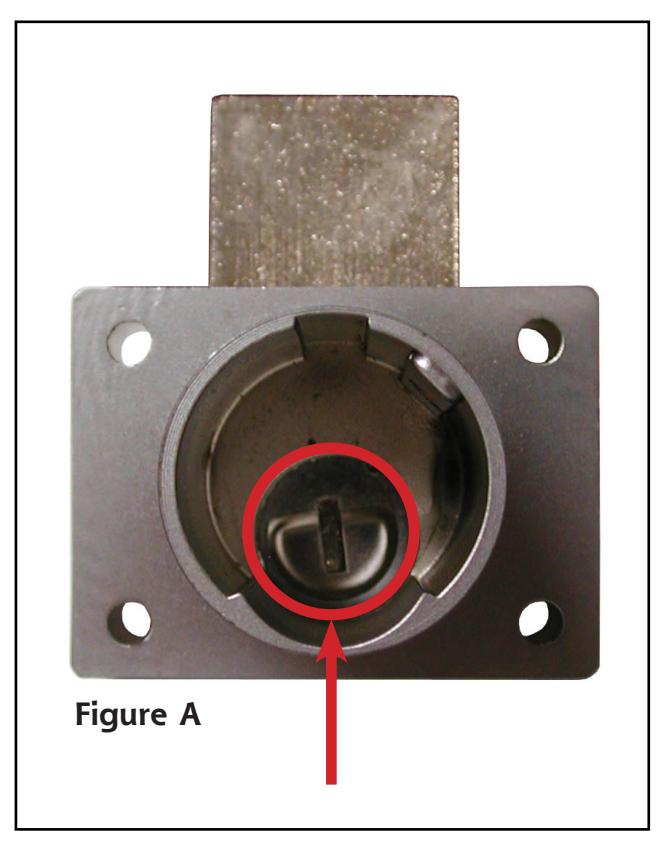

• Step 1: Cycle lock so that the deadbolt is either completely up or completely down. The slot inside the lock case should be in a vertical (up/down) orientation ( Figure A ).

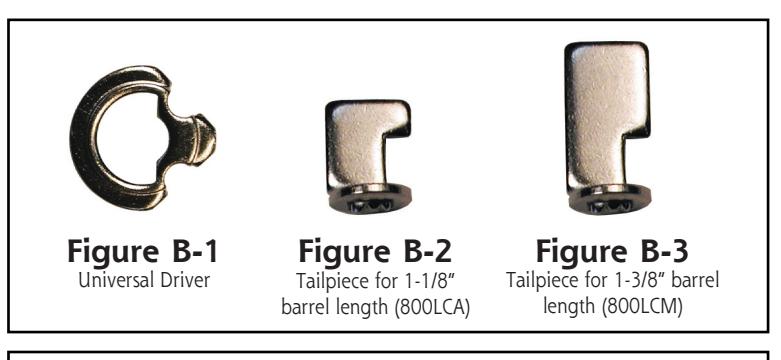

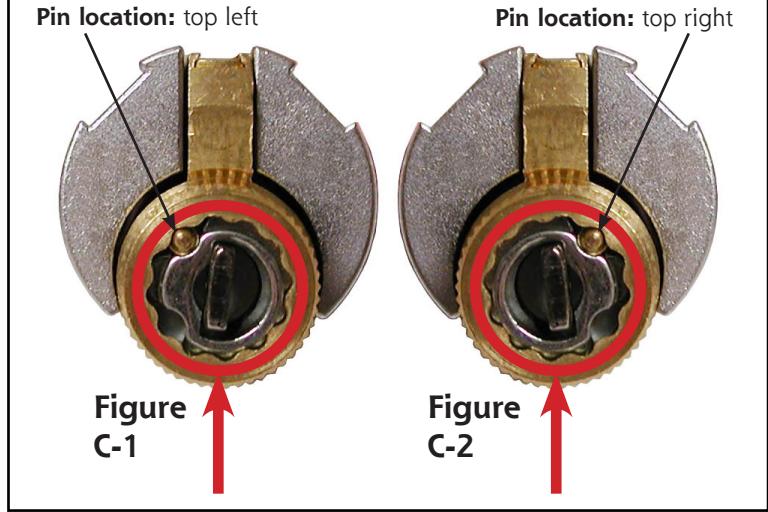

• Step 2: Install the universal driver ( Figure B-1 ) into the back of the cylinder. If pin is located on the top left, install as shown in Figure C-1 . If pin is located on top right, install as shown in Figure C-2 .
• Step 3: Install the tailpiece into the back of the cylinder in the vertical position such that the overhang is facing in the same direction as the bolt ( Figure D ).
• Step 4: Pick up the lock body and slide it down over the cylinder. If the the tailpiece does not immediately go into the vertical slot, pick up the complete assembly, put the key into the cylinder, and turn the key slightly back and forth until the tailpiece drops into the slot. Secure the cylinder housing to the body using the supplied set screw. Figure D
